27INRKIY_14.02_5167555_00
NRK 0200-0700 HA-HE
EN
ON
OFF

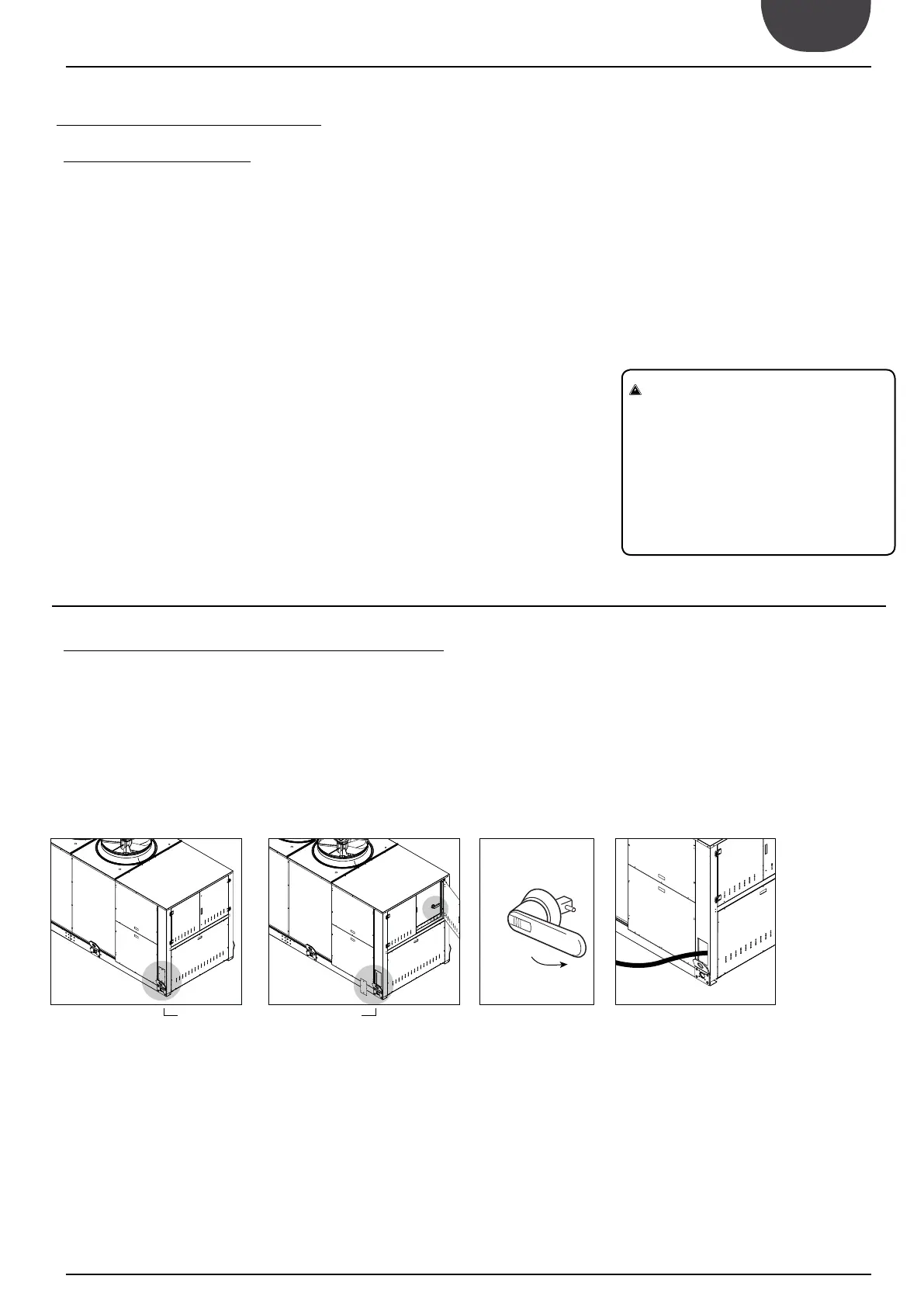

Holes for passage of electric cables
Master Switch ON/OFF
Restoring the
protection degree of
the electrical box by
the installer
9. ELECTRIC CONNECTIONS
The units are completely wired at the factory and only
from a unit switch, according to that envisioned by
the Standards in force on this subject in the country of
installation.
It Is also advised to check that:
1. The electrical mains features are suitable for the
input values indicated in the electrical data table,
also taking any other machines operating at the
same time into consideration.
2. The unit must only be powered when installation
3. Respect the connection indications of the phase
and earth wires.
4. The power supply line must have a relevant protec-
tion against short circuits mounted upstream and
dispersions to earth, which isolate the system with
respect to other utilities.
5. The voltage must be within a tolerance of ±10% of
the nominal power supply voltage of the machine
not respected, contact the electric energy public
body.
6. For electric connections, use the cables with dou-
ble isolation according to the Standards in force on
this subject in the different countries.
1. It is mandatory to make an effective earth connec-
tion. The manufacturer is not liable for any damage
caused by the lack of or ineffective appliance earth
connection.
2. For units with three-phase power supply, check the
correct connection of the phases.
3. It is mandatory to verify that the machine is water-
electrical works have been completed.
STAFF
IN POSSESSION OF THE NECESSARY QUALIFICATIONS
BY LAW, suitably trained and informed on the risks related
The features of the electrical lines and of the related
components must be determined by STAFF QUALIFIED
in compliance with
-
diagram supplied with the appliance.
BE AVAILABLE FOR ANY FUTURE INTERVENTIONS ON
THE UNIT.
ATTENTION
1. It is prohibited to use the water pipes to earth the
appliance.
2. Check the tightening of all power wire clamps on
commissioning and after 30 days from start-up.
Successively check them every six months.
Loose terminals can cause overheating of the
cables and components.
ELECTRIC CONNECTIONS
1.
open.
2. Open the front panel.
3. Use the plates to pass the main electric power
supply cable and the cables of the other
the installer.
4.
envisioned in this manual with electric cables.
5. Avoid direct contact with non-insulated copper
piping and with the compressor.
6.
and always refer exclusively to the wiring dia-
gram supplied with the unit.
7.
the power supply cable to the electric control
board inside the unit and connect it to clamps.
L1-L2-L3 as phases, and PE as earth;
8.
9.
powering the unit electrically.
10.
