AERMEC NRL 0650 - Page 15

1518.01._5280107_02
NRL 0280-0750 °-L / A-E
EN
NRL_0750_[°-L-A-E]
1975 mm
4350 mm
1520 mm
150 mm
1500 mm
4400 mm
Ø 20
100
5050
1400
1001500 15001150
Ø 20
100
100
1500 15001150

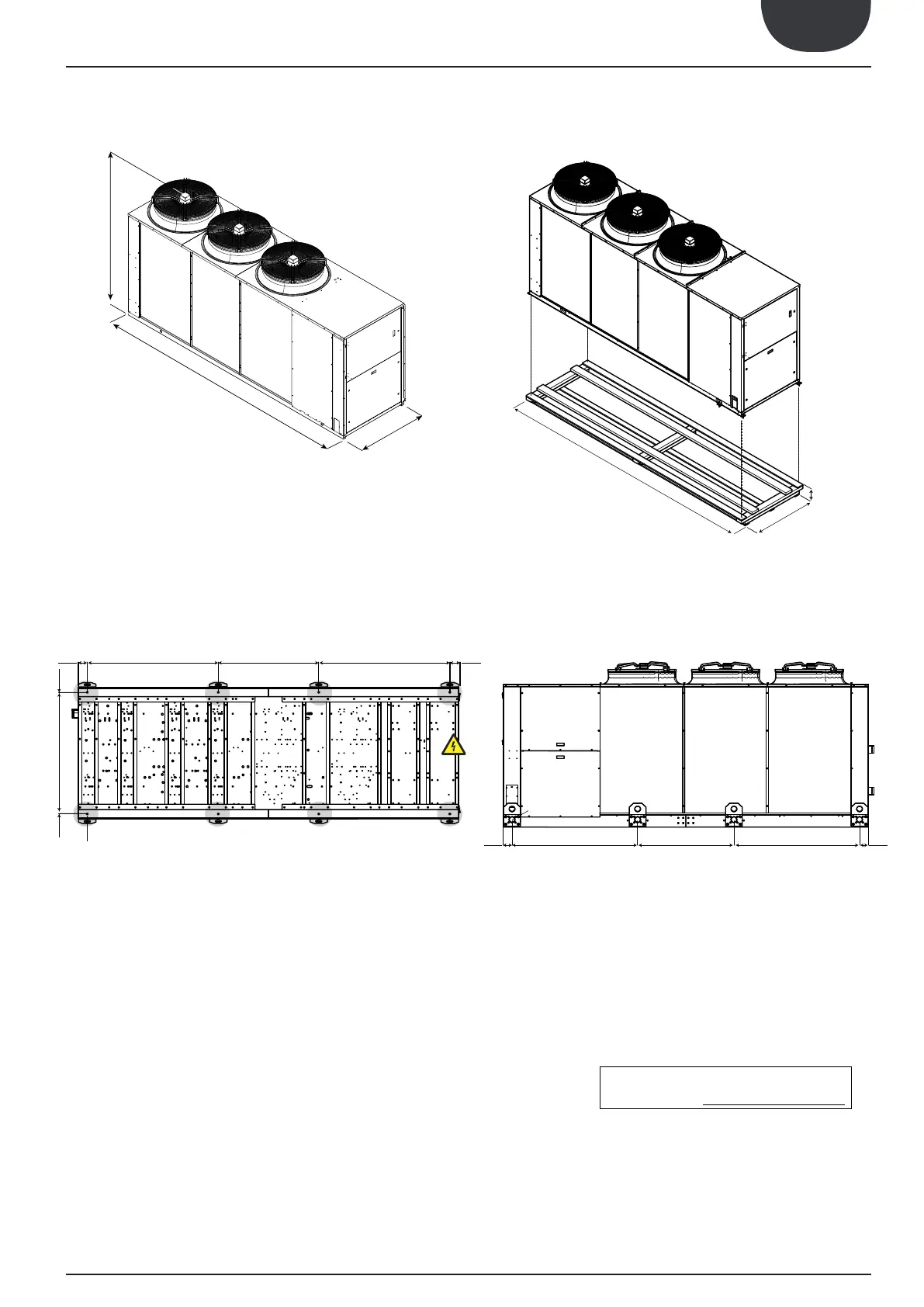

DIMENSIONS (mm)
LIFTING POINTS (mm)
POSITION OF ANTIVIBRATION MOUNTS (mm)
Model
Boom View
