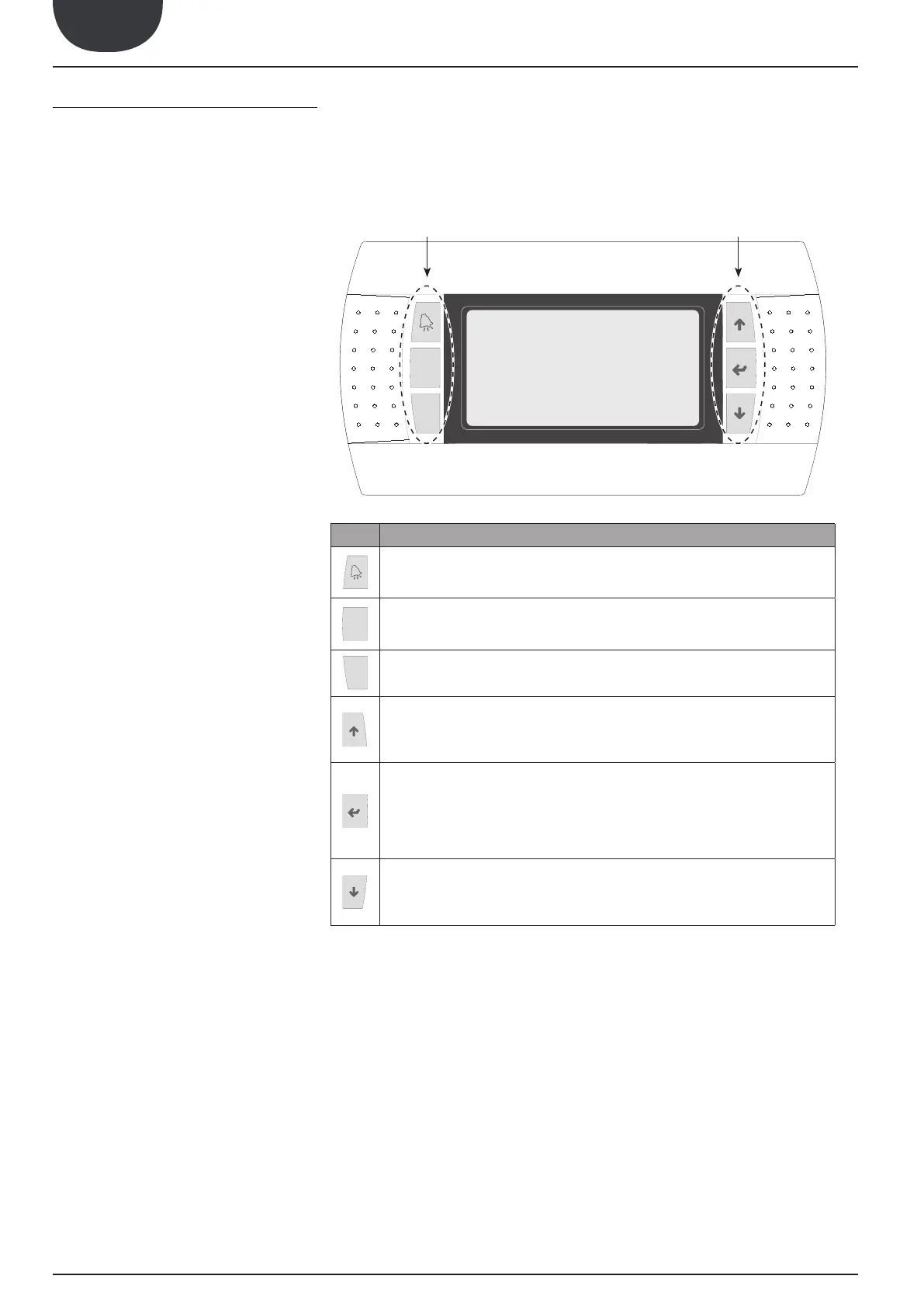

User Interface (PGD1)
The unit control panel allows the quick se ng and
display of the unit’s opera ng parameters. The
board memorises all the default se ngs and any
modifi ca ons. By installing the remote control panel
PGD1 it is possible to remotely replicate all the
func ons and the se ngs available on the unit. A er
a power failure the unit is capable of an automa c
restart, retaining the original se ngs.
The user interface consists of a graphic display with
six naviga on keys; the display is arranged through a
menu hierarchy, ac vated by pressing the naviga on
keys. The default display of these menus is the
main screen. The naviga on between the various
parameters is by using the arrow keys located on the
right of the display. These keys are also used for the
modifi ca on of the selected parameter.
Key Fucntion
Displays the list of active and historical alarms
• Pressing this key activates the navigation between menus
• Pressing this key returns to the previous menu
• Pressing this key when navigating between menu/parameters passes to the next
menu/parameter
• Pressing this key when modifying a parameter increases the value of the selected parameter
• Pressing this key when navigating between menus allows entry to the selected menu
• Pressing this key when navigating between parameters allows selection of the parameter
displayed to modify it
• Pressing the key when modifying a parameter confirms the modification of the parameter value
selected
• Pressing this key when navigating between menu/parameters passes to the previous menu/
parameter
• Pressing this key when modifying a parameter decreases the value of the selected parameter
