AERMEC NRL 0750 - Page 14

14 18.01._5280107_02
NRL 0280-0750 °-L / A-E
EN
NRL_0700[A-E]
1875 mm
4010 mm
1160 mm
150 mm
1100 mm
4010 mm
3016 006493
Ø 40 Ø 40
Ø 16 Ø 16 Ø 16
Ø 16 Ø 16 Ø 16
1440 2158
1440 2158200 200
2020 1060

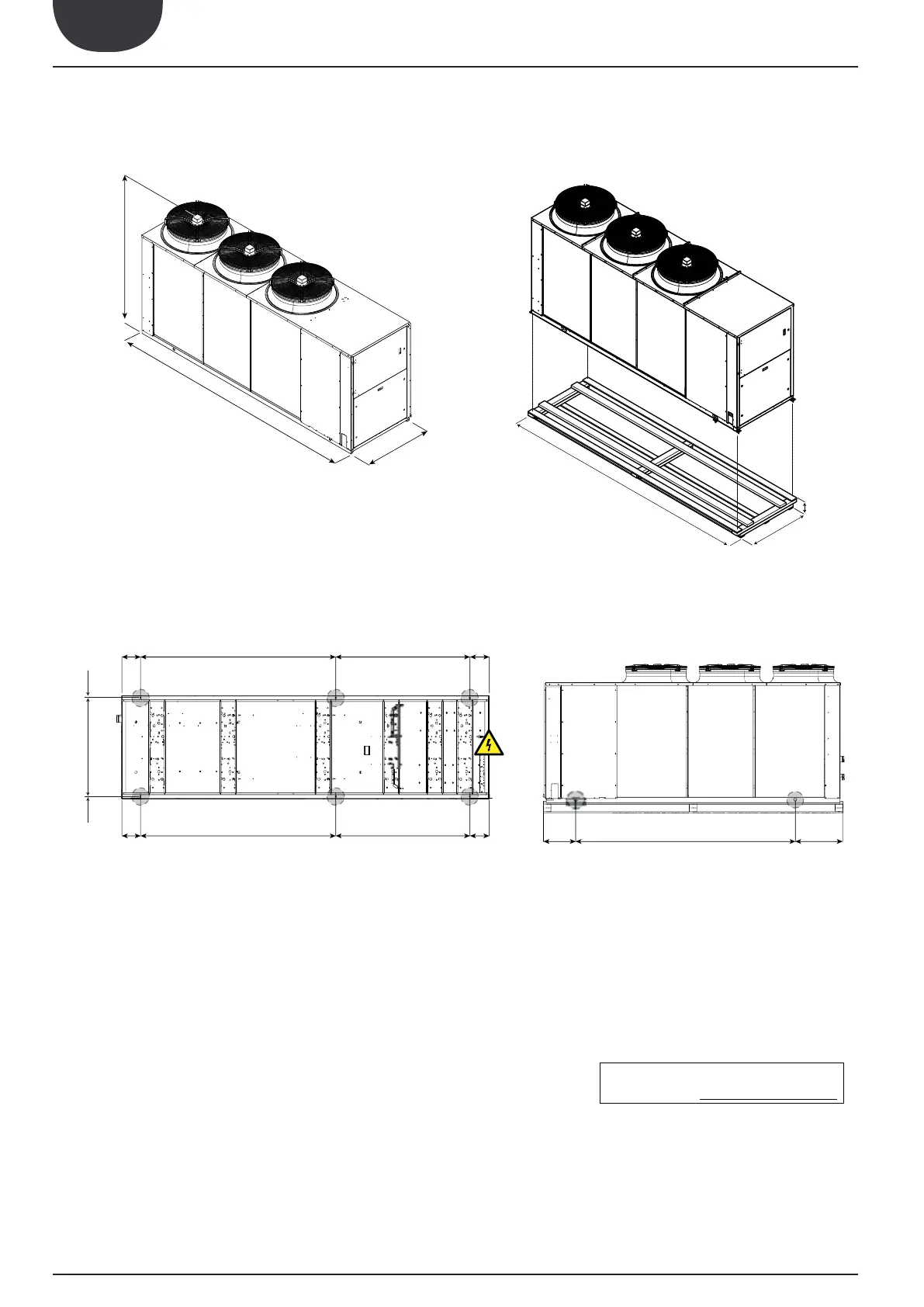

DIMENSIONS (mm)
LIFTING POINTS (mm)
POSITION OF ANTIVIBRATION MOUNTS (mm)
Model
Boom View
