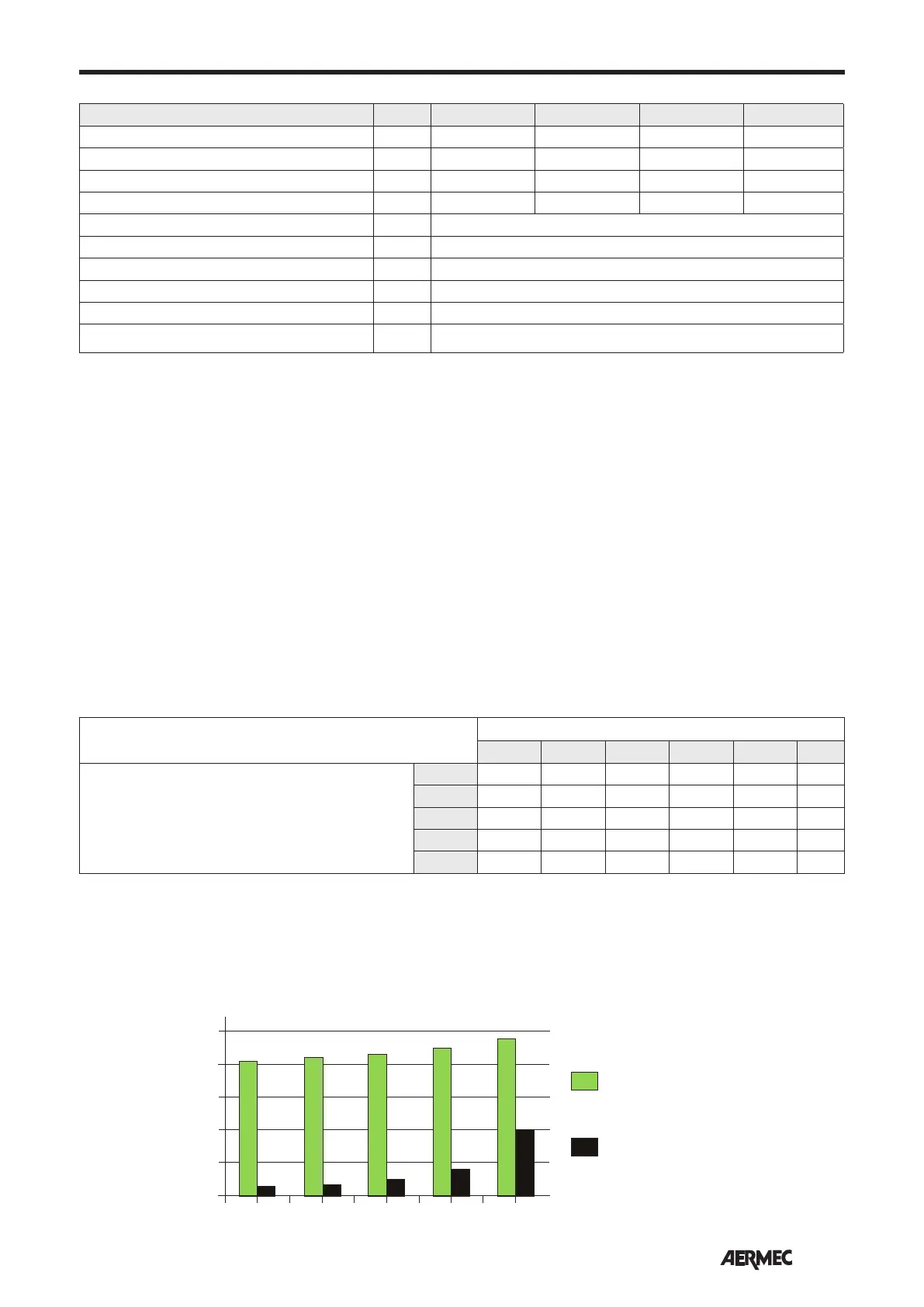

TECHNICAL DATA AND OPERATING LIMITS
Performance values refer to the following conditions:
- at the maximum motor speed;
- the total input power is determined by adding the input power for the
unit and the input power for the accessories connected and declared
in the corresponding manuals.
HL 11 / 11M 16 / 16M 26 / 26M 36 / 36M
Thermal capacity (maximum) (input water 70°C) [W] 2010 2910 4620 5940
Cooling output (maximum) (input water 7°C) [W] 840 1200 2030 2830
Power consumed (maximum) [W] 18 32 35 42
Current consumed (maximum) [A] 0,09 0,15 0,18 0,22
Input water temperature (maximum) [°C] 80
Operating pressure (maximum) [bar] 8
Room temperature limits Ta 0°C < Ta < 40°C
Relative humidity limits in the room R.H. R.H. < 85%
Protection rating IP 20
Power supply [V~Hz] 230V ( ±10% ) ~ 50Hz
Water temperature
In order to prevent air stratification
in the room, and therefore to achieve
improved mixing, it is advisable not
to supply the fan coil with water at a
temperature over 65°C.
The use of water at high temperatures
could cause squeaking due to the
different thermal expansions of the
elements (plastic and metal), this does
not however cause damage to the unit if
the maximum operating temperature is
not exceeded.
Minimum average water temperature
If the fan coil is working in continuous
cooling mode in an environment
where the relative humidity is high,
condensate might form on the air
delivery and on the outside of the
device. This condensate might be
deposited on any objects underneath
and on the floor.
To avoid condensate on the external
structure of the device while the fan is
functioning, the average temperature
of the water must not be lower than
the limits shown in the table below,
that depend on the thermo-hygrometric
conditions of the air in the room.
These limits refer to unit operating with
fan at minimum speed.
Minimum average water temperature [°C]
Temperature of the air in the room with dry bulb
21 23 25 27 29 31
Temperature with wet bulb
of the air in the room
15 3 3 3 3 3 3
17 3 3 3 3 3 3
19 3 3 3 3 3 3
21 6 5 4 3 3 3
23 - 8 7 6 5 5
Particle diameter [µm]
Fractional efficiency [%]
= Aermec HL range filter
= Standard filter for fan coils
ELECTROSTATICALLY PRECHARGED AIR FILTER
