AERMEC VES030 - Page 11

11
IVES0LJ 1707 - 5880761_01
mod. sp. 30 40 130 140 230 240 330 340
2-pipe system conguration bv
fans
type fans
no. 1 1 2 2 2 2 3 3
useful static pressure
pa h 61 61 60 60 62 61 66 64
pa m 50 50 50 50 50 50 50 50
pa l 21 21 26 26 32 32 33 34
input power
w h 36 35 45 44 62 61 86 84
w m 28 28 35 34 52 52 61 63
w l 12 12 16 16 33 34 40 41
maximum input current (a) 0.37 0.37 0.41 0.41 0.58 0.58 0.66 0.66
sound power (inlet+radiator)
db(a) h 54 54 55 55 57 57 58 58
db(a) m 52 52 53 53 54 54 55 55
db(a) l 44 44 47 47 49 49 38 38
sound power (outlet)
db(a) h 50 50 50 50 42 42 54 54
db(a) m 48 48 48 48 49 49 51 51
db(a) l 40 40 42 42 44 44 34 34
coil connections
3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4"
coil connections (additional heat exchanger) - - - - - - - -
regulator ON signal
h 9 9 9 9 9 9 9
m 8 8 8.4 8.4 8 7.9 8
l 5.2 5.2 6 6.6 6.4 6.4 6.6
electric power supply: 230v/1/50hz

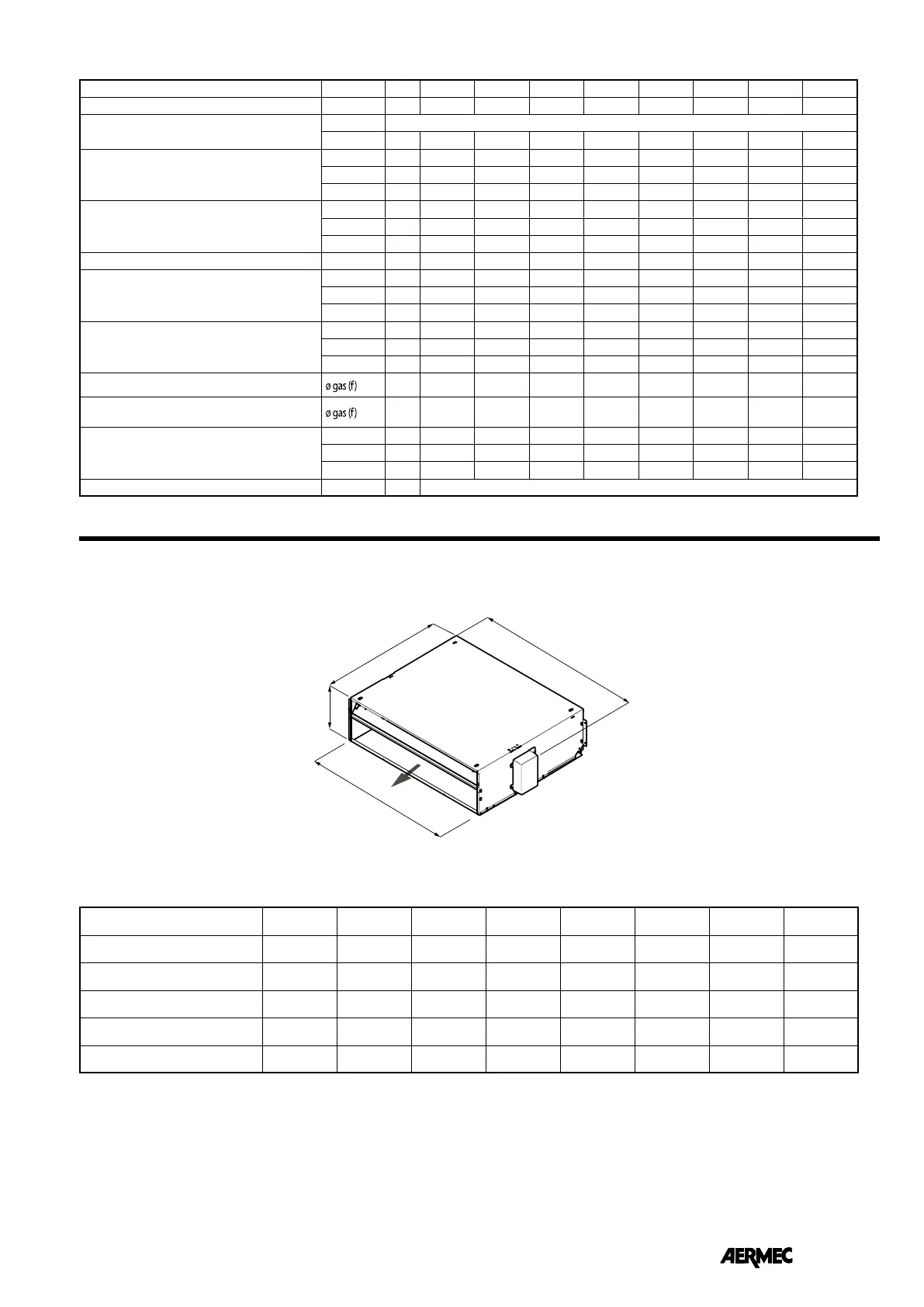

VES 030 040 130 140 230 240 330 340
A mm 217 217 217 217 217 217 217 217
B mm 550 550 781 781 1001 1001 1122 1122
C mm 584 584 584 584 584 584 584 584
D mm 576 576 807 807 1027 1027 1148 1148
Net weight Kg 22 24 25 33 33 34 35 34
B
D
C
A
DIMENSIONAL DATA mm
