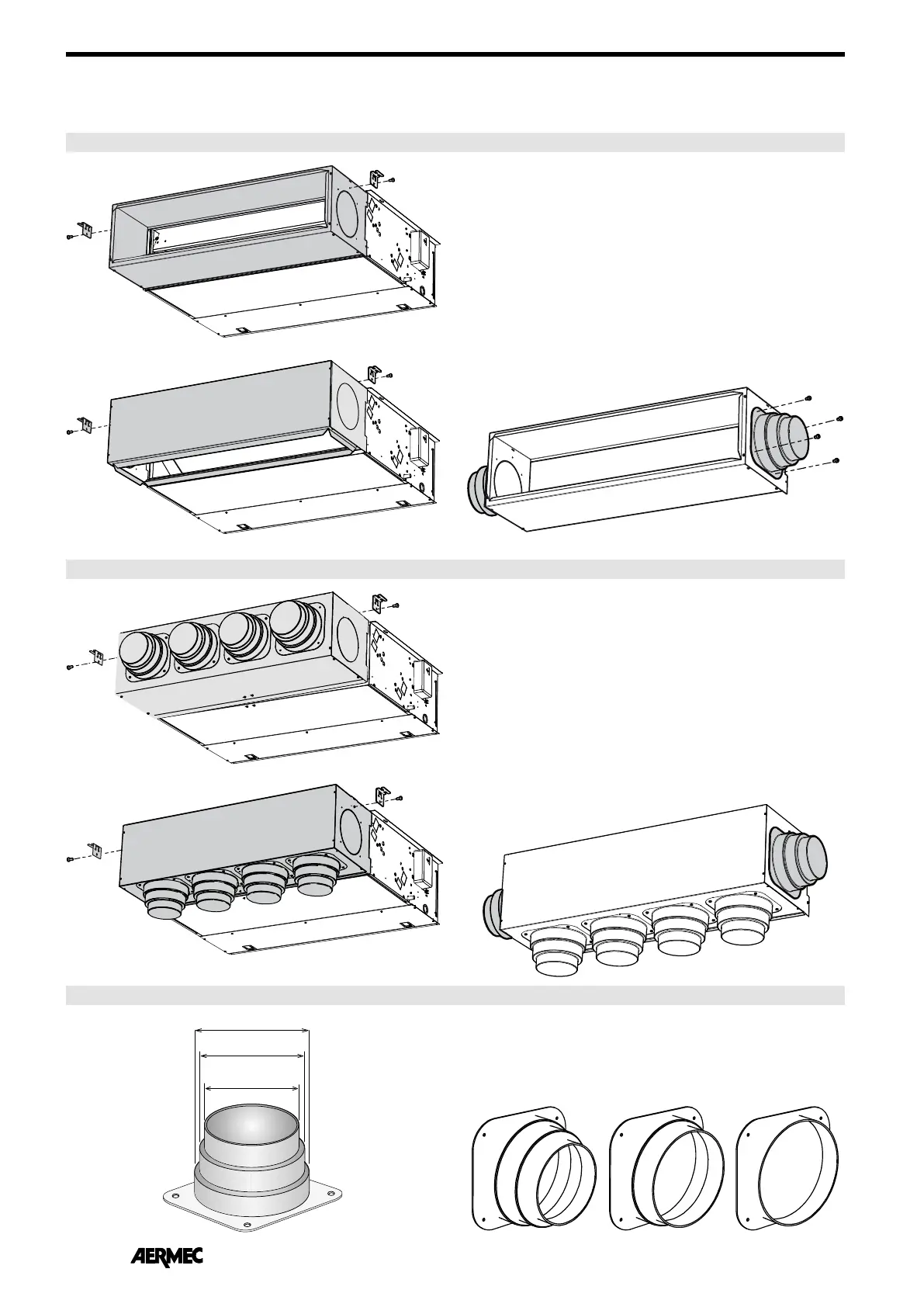

KFV CIRCULAR FLANGE FOR INTAKE OR FLOW PLENUM KIT
KFV is an intake/flow circular flange kit with variable section, in plastic.
This accessory is for connection of an additional circular duct, making
use of the set-ups present on the sides of the intake/flow plenum of the
VES_I unit.
ACCESSORIES
DUCTING ACCESSORIES:
RPM_V FLOW PLENUM WITH RECTANGULAR FLANGE
RPM_V is a flow plenum with rectangular flange made of
galvanised sheet steel and fully insulated. This accessory is for
connection of a channel with a rectangular section to the flow
vent of the VES_I unit.
According to requirements, the RPM_V accessory allows for both
longitudinal and perpendicular delivery to the air flow passing
through the VES_I unit.
The sides of the RPM_V flow plenum are set for the connection of
a circular section channel by means of the KFV accessory.
PM_V FLOW PLENUM WITH CIRCULAR FLANGES
KFV
KFV
RPM_V
PM_V is a flow plenum made of galvanised sheet steel, fully
insulated with plastic circular flanges having variable section.
This accessory is for connection of channels with circular
section to the flow vent of the VES_I unit.
According to requirements, the PM_V accessory allows for both
longitudinal and perpendicular delivery to the air flow passing
through the VES_I unit.
The sides of the PM_V flow plenum are set for the connection of
an additional circular section channel by means of the KFV
accessory.
KFV
KFV
PM_V
Ø 180
Ø 150
Ø 200
