2 APPLICATION OF THE VMF-E4X

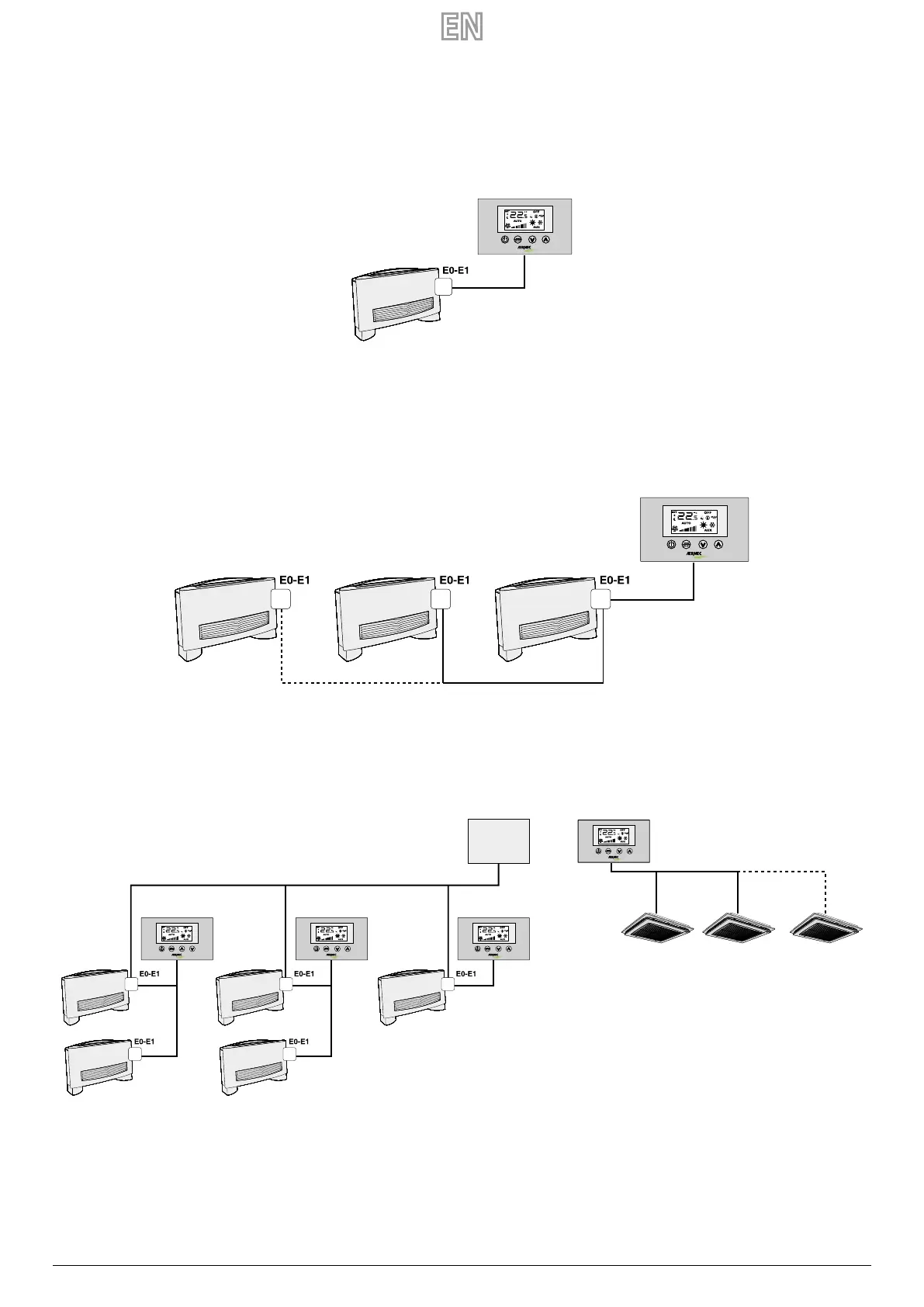

STAND ALONE APPLICATION
The most simple application for the use of the VMF-E4X, envisions just one fancoil piloted by an individual panel. This connection is the ModBus TTL type and its maximum
length can be 30 metres.
VMF-E4X
AREA CONTROL APPLICATION
To create an area control using the VMF-E4X, it is necessary that the various fancoils that make up the area are all supplied with E0/E1/E19/E19I boards, which are connected
to each other. The VMF-E4X will be connected to the MASTER unit, whose settings will be repeated on all of the remaining SLAVE units. The VMF-E4X connection is the ModBus
TTL type and its maximum length can be 30 metres.
VMF-E4X
CENTRALISED PLANT APPLICATION
To create a centralised system, the developed VMF-E5 / VMF-E6 panel must be used. In this case the use of the VMF-E4X is reduced to area control (in a centralised system up
to 64 areas can be managed. This management is delegated to the E5/E6 developed panel), therefore reference can be made to the previous description.
VMF-E4X
FCL master
FCL slave #1
FCL slave #5
MODBUS TTL
VMF-E5/E6
VMF-E4XVMF-E4XVMF-E4X
