19

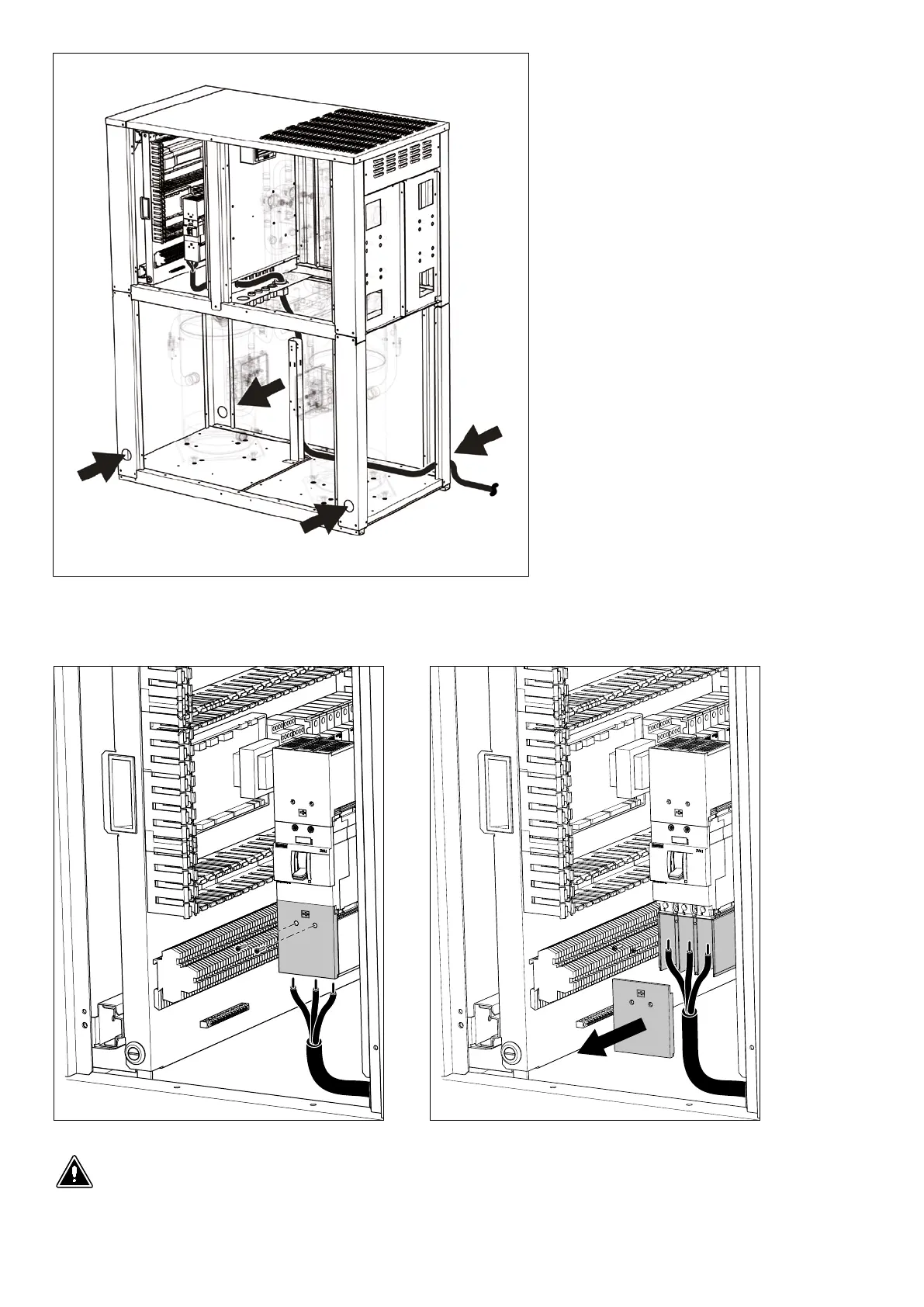

Attach the cables to lines L1-L2-L3 underneath the main switch.
There are power cable entry points on all the
lower corners of the machine (the installer
must choose the best one).
After passing the cables through an entry
point, run them along the dedicated vertical
bracket (holding them in place with clamps if
necessary), towards the electrical panel.
Attention: connect the earth wire. Use an M10 screw on the galvanised side panel.
