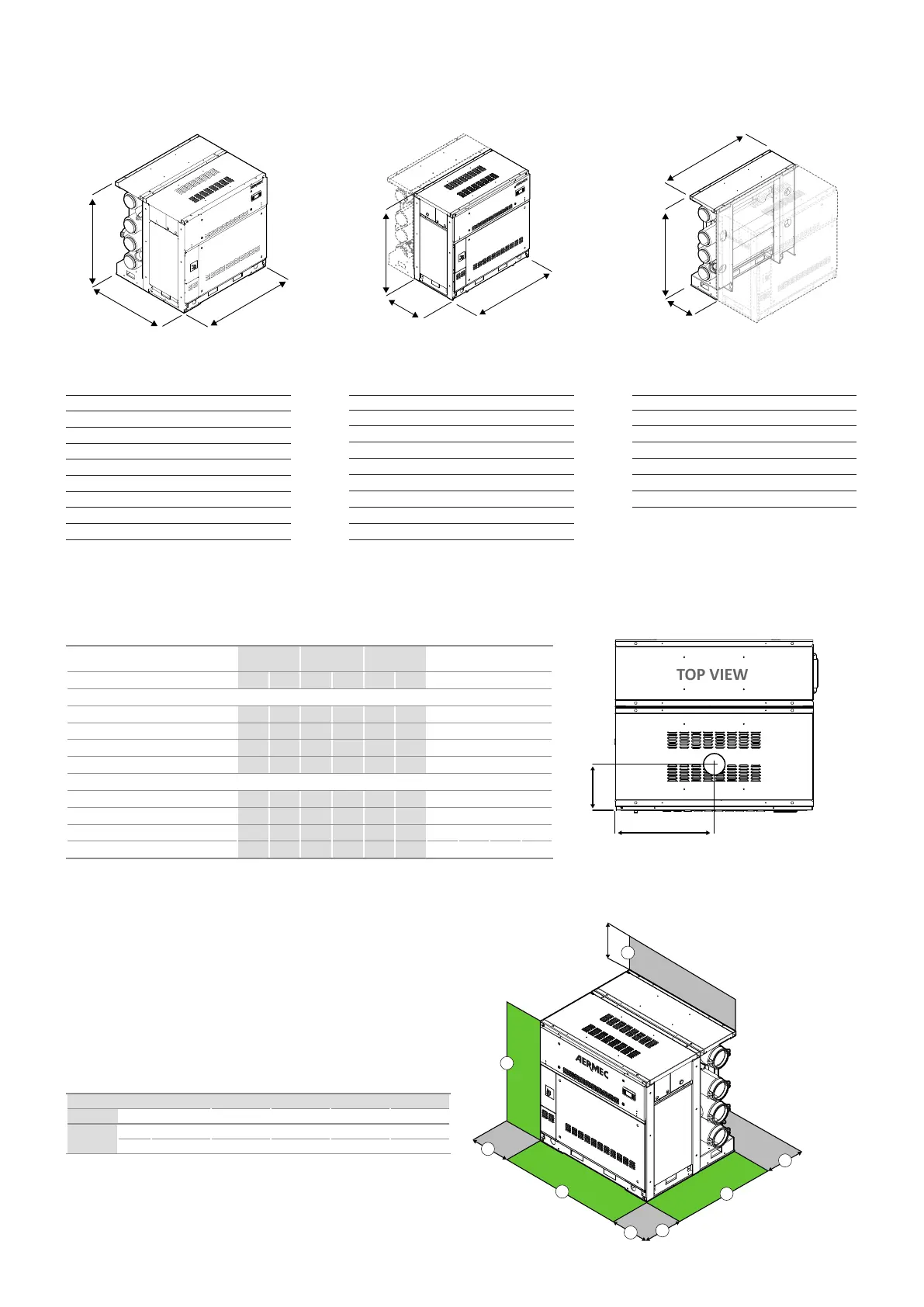

INSTALLATION  DIMENSIONS  MINIMUM TECHNICAL SPACES  WEIGHT DISTRIBUTION
A
C
B
A
C
B
A
C
B
Size Weight XG YG
Weight distribution
percentage on support in %
WWM 0500 Kg lbs mm in mm in 1 2 3 4
EMPTY UNIT
Chiller + bus bar 736 1,623 673 26.5 396 15.6 24.1% 25.2% 24.8% 25.9%
Chiller without bus bars
700 1,543 674 26.5 391 15.4 24.4% 24.9% 25.1% 25.6%
Chiller + bus bar + headers kit 966 2,130 671 26.5 524 20.6 27.0% 22.6% 27.5% 23.0%
Chiller without bus bars + headers kit 930 2,050 672 26.5 525 20.7 26.9% 22.6% 27.4% 23.1%
RUNNING UNIT
Chiller + bus bar 747 1,647 673 26.5 401 15.8 23.8% 25.6% 24.4% 26.2%
Chiller without bus bars 711 1,568 674 26.5 397 15.6 24.1% 25.3% 24.7% 25.9%
Chiller + bus bar + headers kit 1,078 2,376 671 26.4 561 22.1 25.4% 24.2% 25.8% 24.6%
Chiller without bus bars + headers kit 1,042 2,296 671 26.4 564 22.2 25.3% 24.3% 25.7% 24.7%
1
2
Y
G
XG
3
4
TOP VIEW
A
A1
C
C1
C2
B
B1
B2
MINIMUM TECHNICAL SPACES
WWM A1 B1 B2 C1 C2
0500
mm 500 1000 1000 1000 1000
in 19.7 39.4 39.4 39.4 39.4
DIMENSIONS
WWM 0500 Vers. 0500
A in H / A
51.2
B in H / A
52.4
C in H / A
45.3
Empty weight with pallet lbs
B 2,130
Running weight lbs
B 2,376
Empty weight with pallet lbs
° 2,050
Running weight lbs
° 2,296
DIMENSIONS
WWM 0500 Vers. 0500
A in °
51.2
B in °
52.4
C in °
28.6
Empty weight with pallet lbs
B
1,623
Running weight lbs
B
1,647
Empty weight with pallet lbs
°
1,543
Running weight lbs
°
1,568
DIMENSIONS
WWM 0500 Vers. 0500
A in H / A
51.2
B in H / A
52.4
C in H / A
17.8
Empty weight with pallet lbs
-
507
Running weight lbs
-
728
