20

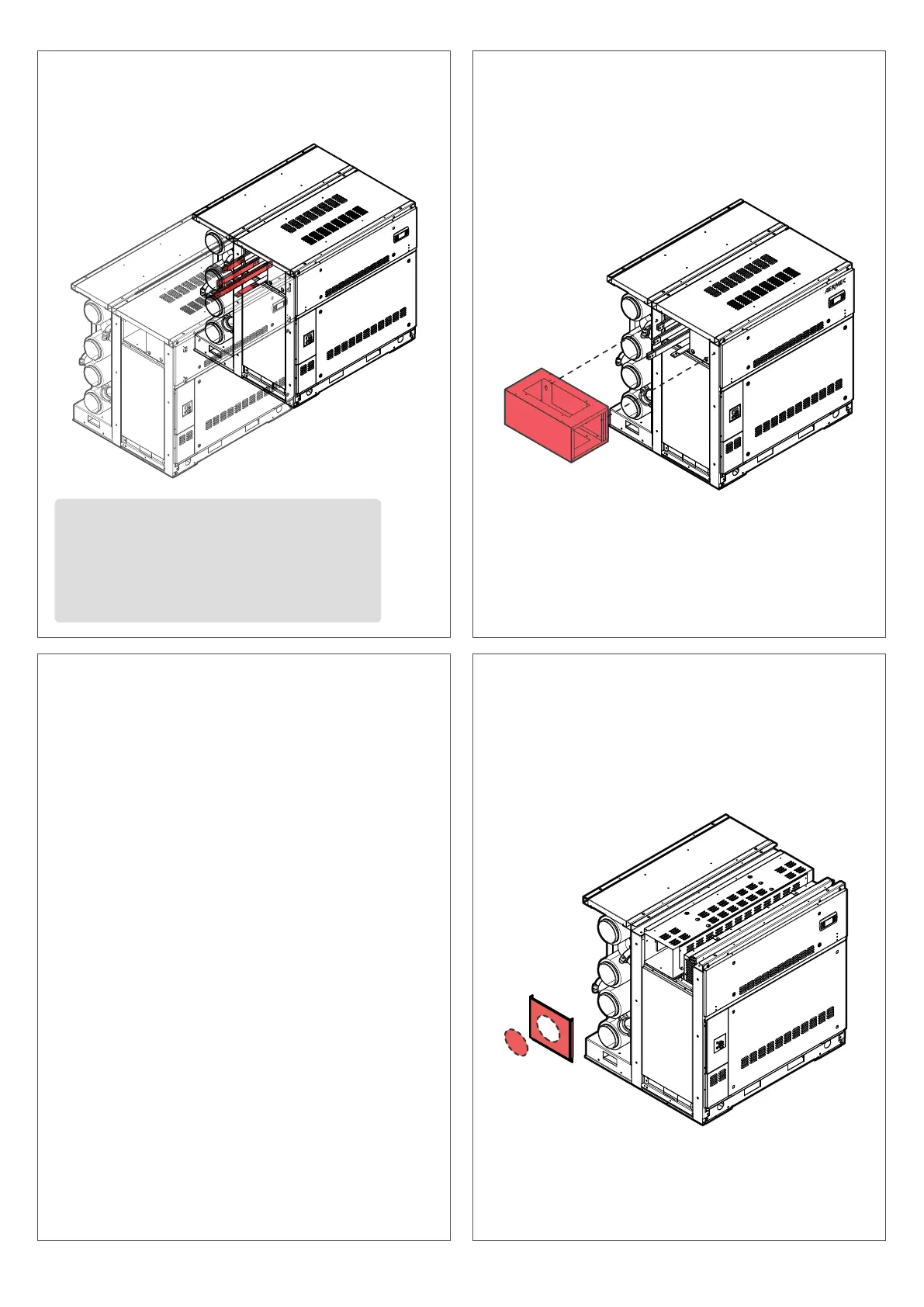

EXAMPLE OF ELECTRICAL CONNECTION WITH BUS BARS
Connect the supplied exible bars to the main bars, respecting the
connection shown in the electrical drawing.
In order to allow the passage of electric wires, it's recommended to pierce
the side panel as shown in the illustration.
ATTENTION: disassembly the cover for drilling operation.
NOTE: if another WWM or "KREC_WWM" accessory should be
connected, the cover must be removed.
Power supply 208-230V
Supplied as standard 2 bus bars for each phase.
The use of one or more bars depends on the total current of the
line, therefore on how many WWM are connected together.
Power supply 460-575V
Supplied as standard 1 bus bar for each phase.
In case of electrical connection with Bus Bars, it is “suggested” to evaluate
the installation of the “KREC_WWM” accessory.
Accessory "KREC_WWM" to be assembled only in the beggining of a
InLine conguration. For stacked or back to back congurations is it
recommended to assemble 2 KREC_WWM.
EXAMPLE OF ELECTRICAL CONNECTION WITH CABLE
(Please contact us)
⑤ ⑥
⑧⑦
To Next Page
