Subject to Export Control, see Cover Page for details. 2-79

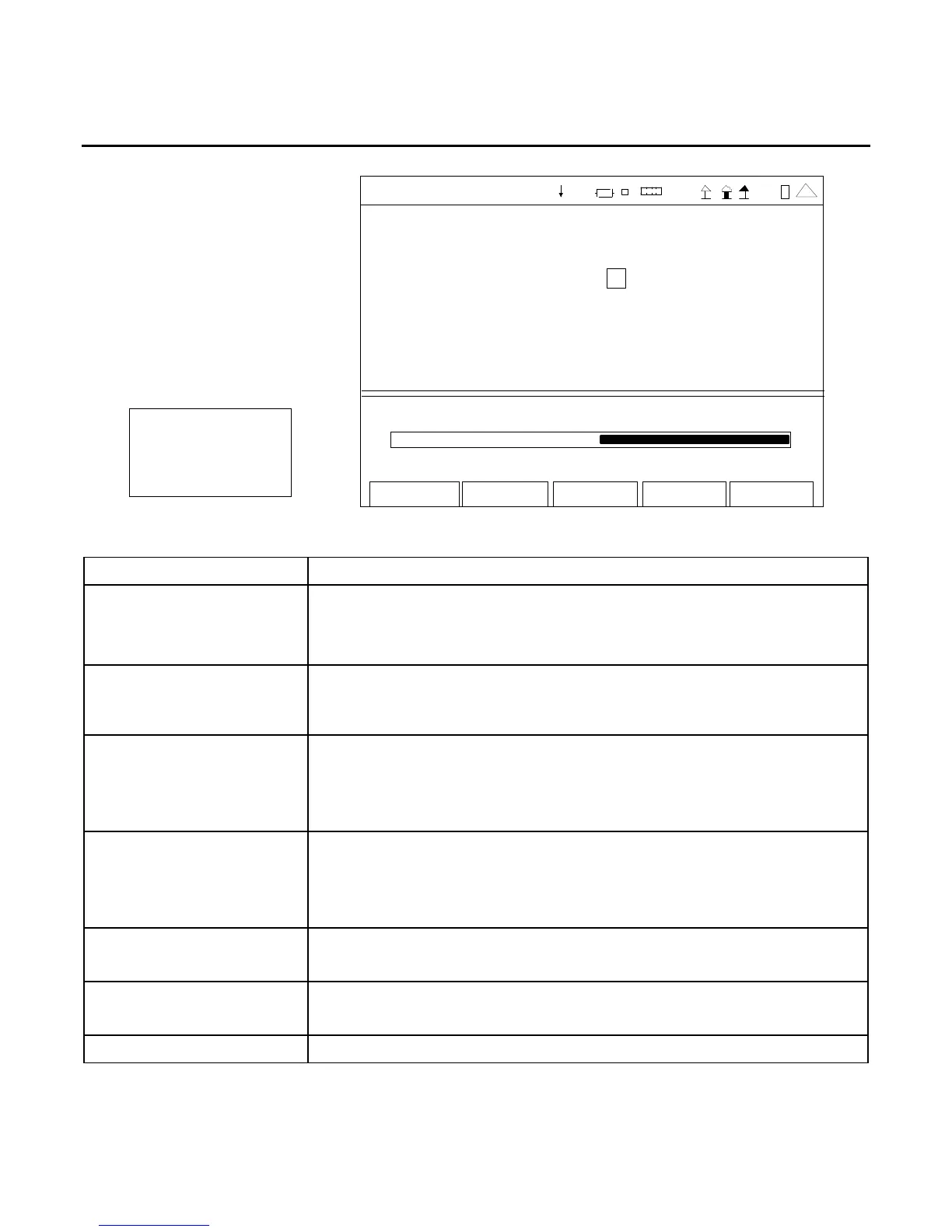

E. RF Error Meter Screen
RF Error
0. 0 kHz
Edit Ho l d Re tur n
RF Erro r Met er
Avg Re ading 1
Rang e Au to
Limits Hz State
Lower -200.0 Off
Upper 200.0 Off
500.000
-200.0 kHz 200.0
41 20 29
(MINI-METER)
SCREEN FEATURE FUNCTION
Avg Reading Used to select the RR Error Meter Averaging.
Select: 1 to 99
This is the number of readings to average for the displayed value.
Range Used to select the meter range.
Select: Auto, -1-1kHz, -2-2kHz, -5-5kHz, -10-10kHz, -20-20kHz,
-50-50kHz, -100-100kHz or -200-200kHz
Limits - Lower Used to enable the RR Error Meter Lower Limit.
Select: -200.0 to 200.0 Hz in 0.1 Hz increments
Sets the marker on the RF Error Meter Bar to the Lower Limit
selected.
Limits - Upper Used to enable the RF Error Meter Upper Limit.
Select: -200.0 to 200.0 Hz in 0.1 Hz increments
Sets the marker on the RF Error Meter Bar to the Upper Limit
selected.
State - Lower Limit Used to display the Lower Limit Marker on the RF Error Meter Bar.
Select: On or Off
State - Upper Limit Used to display the Upper Limit Marker on the RF Error Meter Bar.
Select: On or Off
RF Error Meter Bar A graphical representation of the received RF Error Meter readings.
