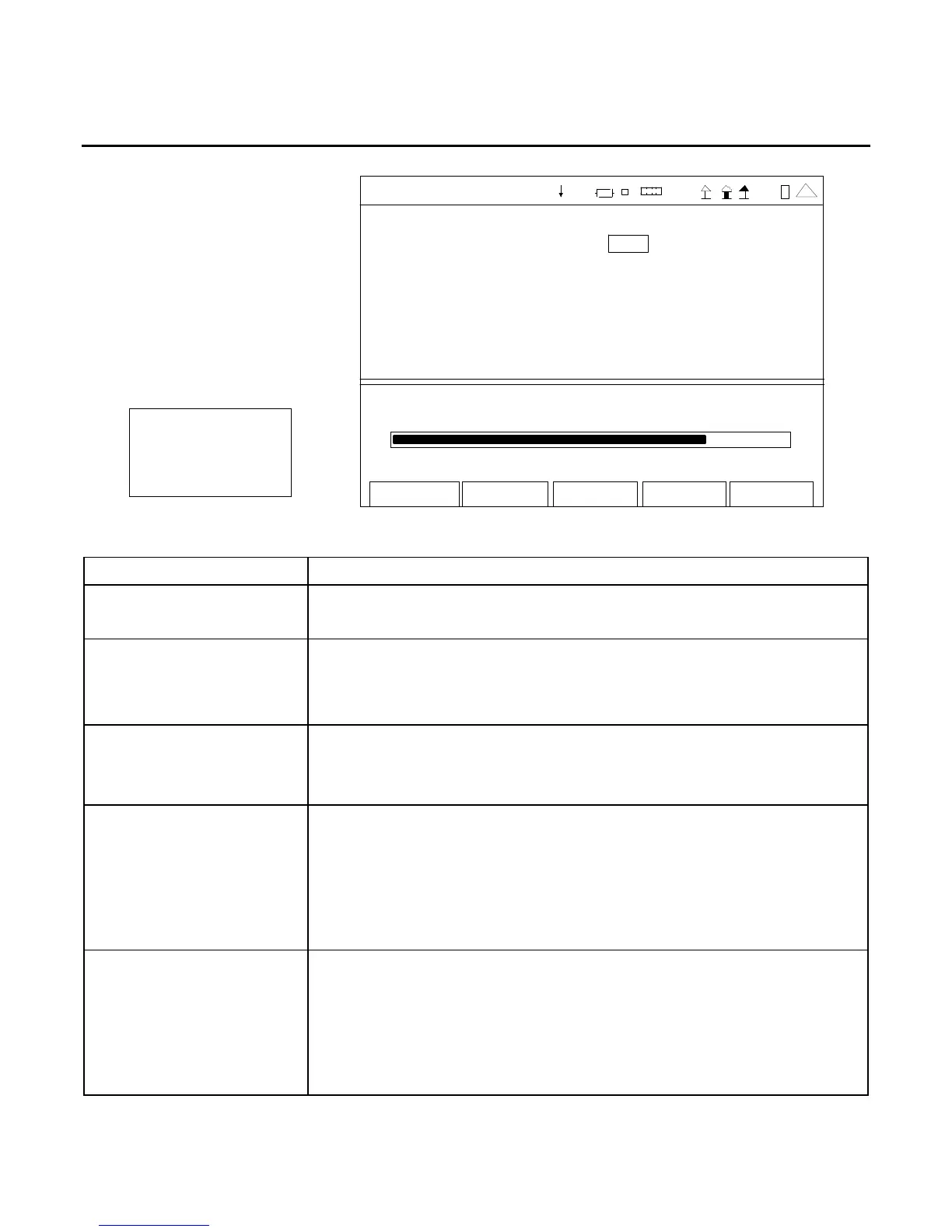

G. RSSI Meter Screen
RSSI
0.0 dB m
Edit
Ho l d
Norm Re tur n
RSSI Meter
Units dBm
Rang e A uto
Avg Re ading 1
Limits dBm State
Lowe r -110.00 Of f
Upper 10.00 Off
-8 5.7 7
-120.0 dBm -80.0
41 20 29
(MINI-METER)
SCREEN FEATURE FUNCTION
Units Used to select the RSSI Meter units of measure.
Select: dBm or W
Range Used to select the meter range.
Select: Auto, -120-(-80)dBm, -100-(-60)dBm, -80-(-40)dBm,
-60-(-20)dBm, -40-0dBm, -20-20dBm, 0-40dBm or
20-60dBm
Avg Reading Used to select the RSSI Meter Averaging.
Select: 1 to 99
This is the number of readings to average for the displayed value.
Limits - Lower Used to enable the RSSI Meter Lower Limit.
Select: -110 to 43 dBm in 0.01 dB increments
-110 to 53 dBm in 0.01 dB increments (with Cable Offset)
0 to 100 W in 0.01 W increments
0 to 100 mW in 0.01 mW increments (with Cable Offset)
Sets the marker on the RSSI Meter Bar to the Lower Limit selected.
Limits - Upper Used to enable the RSSI Meter Upper Limit.
Select: -110 to 43 dBm in 0.01 dB increments
-110 to 53 dBm in 0.01 dB increments (with Cable Offset)
0 to 100 W in 0.01 W increments
0 to 100 mW in 0.01 mW increments (with Cable Offset)
Sets the marker on the RSSI Meter Bar to the Upper Limit selected.
