Subject to Export Control, see Cover Page for details. 3-9

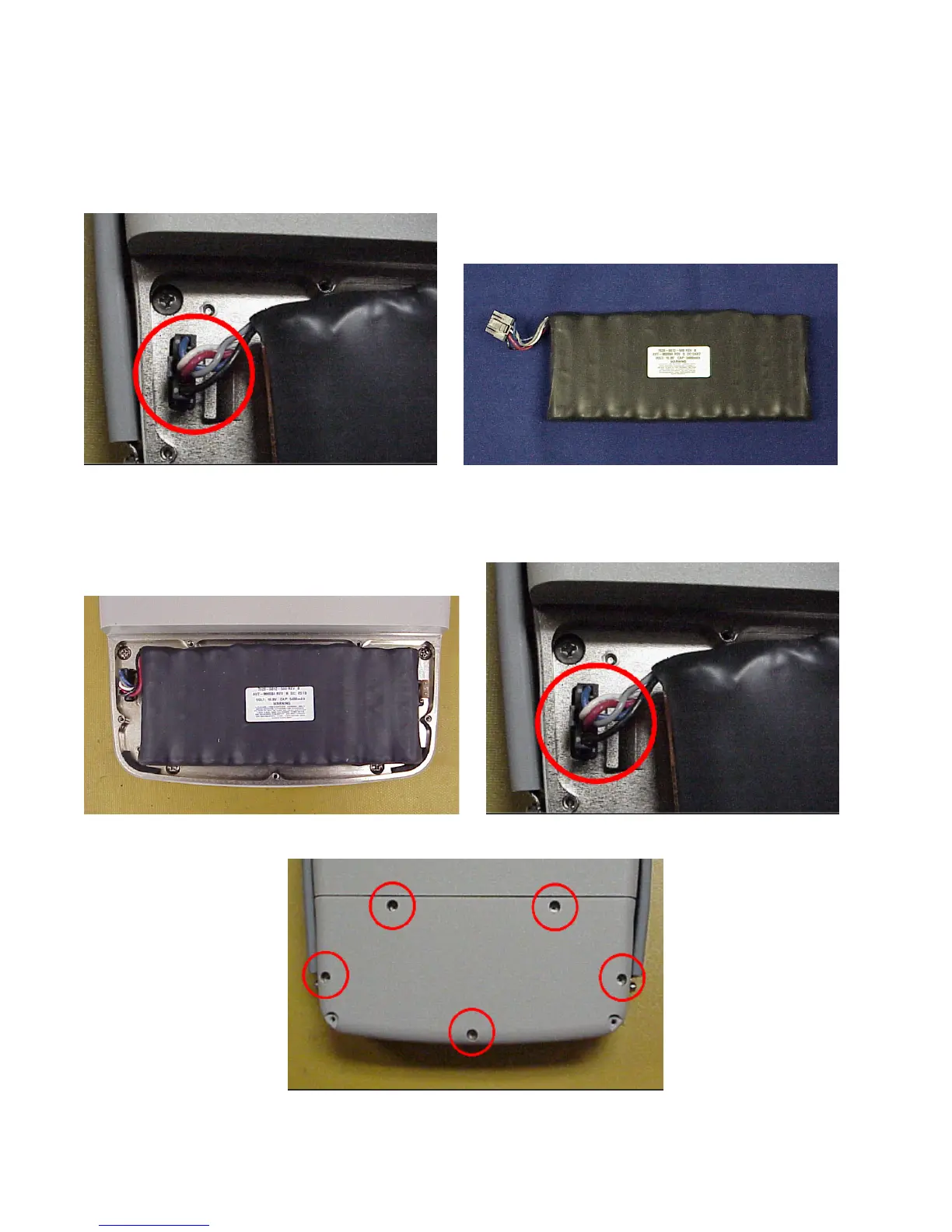

3-3-2. BATTERY REPLACEMENT (cont)
REMOVE (cont)
3. Disconnect the Battery Wire Harness and remove the Battery from the 3500 / 3500A.
INSTALL
1. Install the Battery in the 3500 / 3500A and connect the Battery Wire Harness.
2. Install the Battery Cover on the 3500 / 3500A and tighten five captive screws (8 in/lbs.).
To Next Page
