2-24 Subject to Export Control, see Cover Page for details.

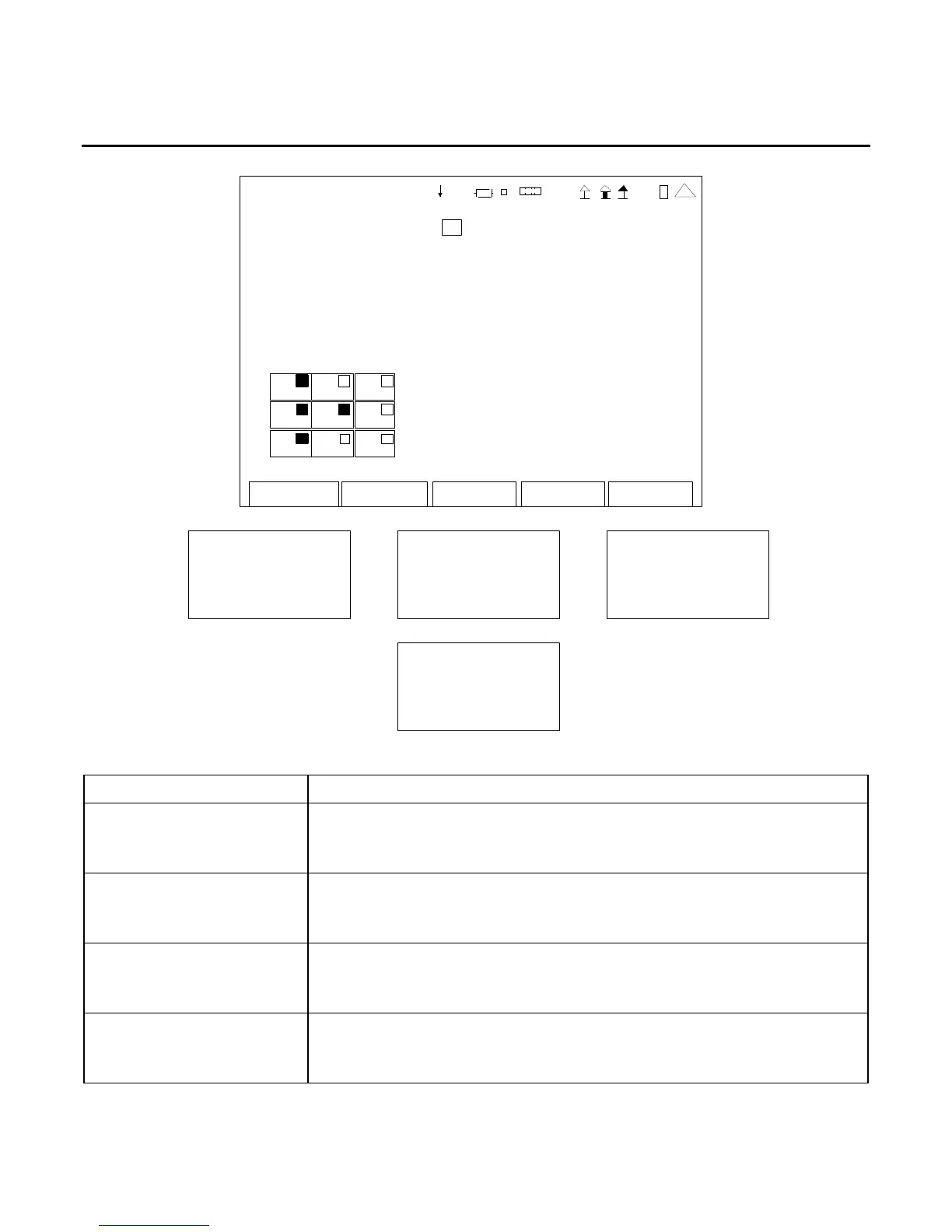

B. Receiver Test Screen (cont)
RECEIVER TEST SETUP
SINAD Meter 0
Distortion Meter 0
AF Counter 0
Au dio L evel 0
7
Edit Return
1
4
2
5
8
3
6
9
41 20 29
SINAD Audio In
0. 0 d B
Distortion Audio In
0.0%
AF Cntr Audio In
0. 0 Hz
Au dio Level Au dio In
0.000 V
SCREEN FEATURE FUNCTION
SINAD Meter Used to select the position of the SINAD Meter on the Receiver Test
Screen (refer to Meter Chart).
Select: 0 (Meter not shown), 2, 3, 6, 8 or 9
Distortion Meter Used to select the position of the Distortion Meter on the Receiver
Test Screen (refer to Meter Chart).
Select: 0 (Meter not shown), 2, 3, 6, 8 or 9
AF Counter Used to select the position of the AF Counter on the Receiver Test
Screen (refer to Meter Chart).
Select: 0 (Meter not shown), 2, 3, 6, 8 or 9
Audio Level Used to select the position of the Audio Level Meter on the Receiver
Test Screen (refer to Meter Chart).
Select: 0 (Meter not shown), 2, 3, 6, 8 or 9
