C. Transmitter Test Screen (cont)

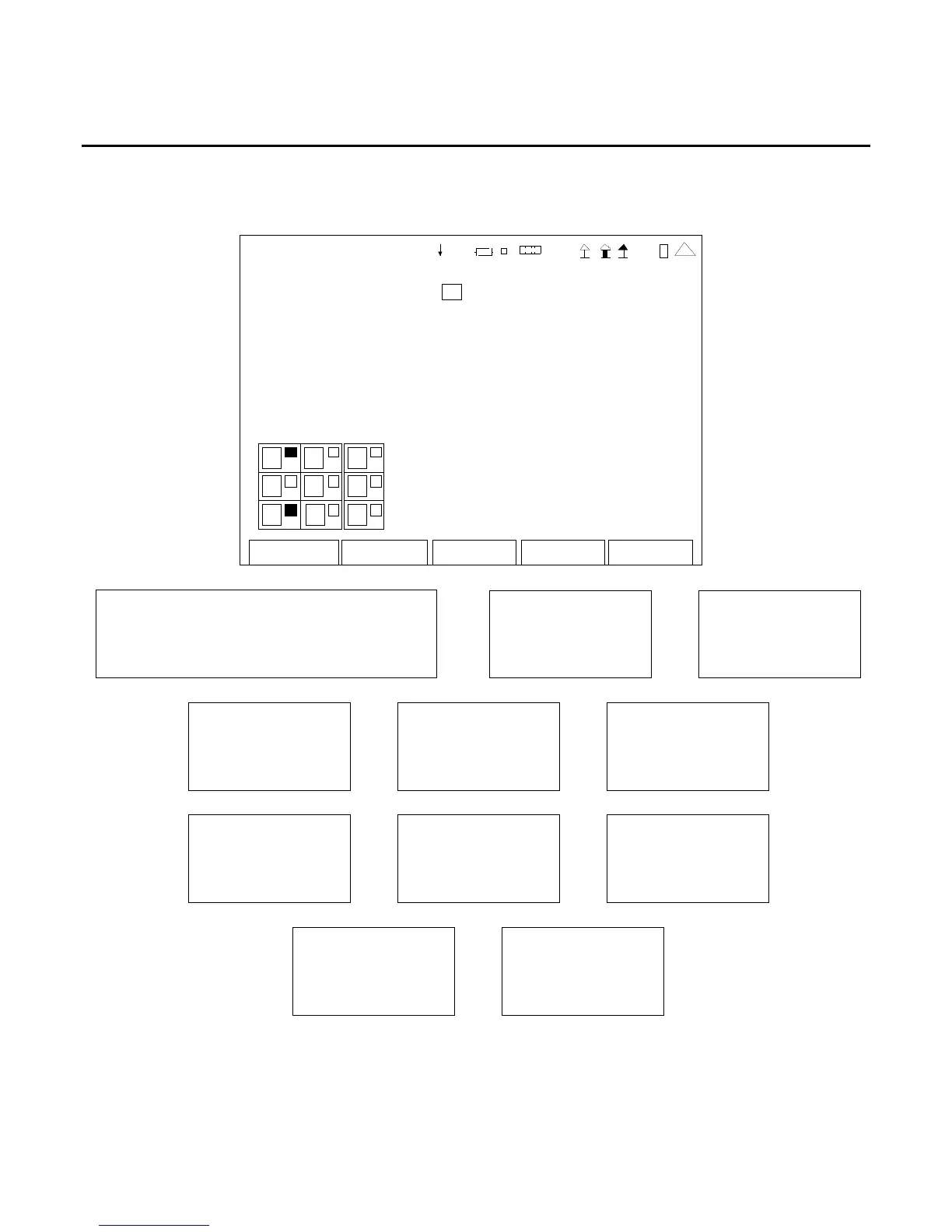

When the Transmitter Test Screen is displayed, press the F4 “Setup” Key to access the Transmitter
Test Setup Screen:
TX TEST SETUP
Fgen 0 DTMF Decode 0
Mo du lati on Me ter 0 D CS Decod e 0
RSSI Mete r 0 A udio Level 0
RF Er ro r Met er 0
Distortion Meter 0
SINAD Meter 0
RF Power Meter 0
AF Counter 0
Edit Return
1
4
7
2
5
8
3
6
9
41 20 29
Fu nc tion Generat or
Freq Level
#1: Off 0.0 Hz 0.20 Vrms
#2: Off 0.0 Hz 0.20 Vrms
Mo d- FM Dev
16.670 kHz
RSSI
0.0 dB m
RF Error
0. 0 kHz
Distortion Audio In
0.0%
SINAD Audio In
0. 0 d B
RF Power
0.0 Watts
AF Cntr Audio In
0. 0 Hz
DTMF Decode
01234
01 2 34567 89
DCS Decode
State Run
Inv 155
Au dio Level Au dio In
0.000 V
