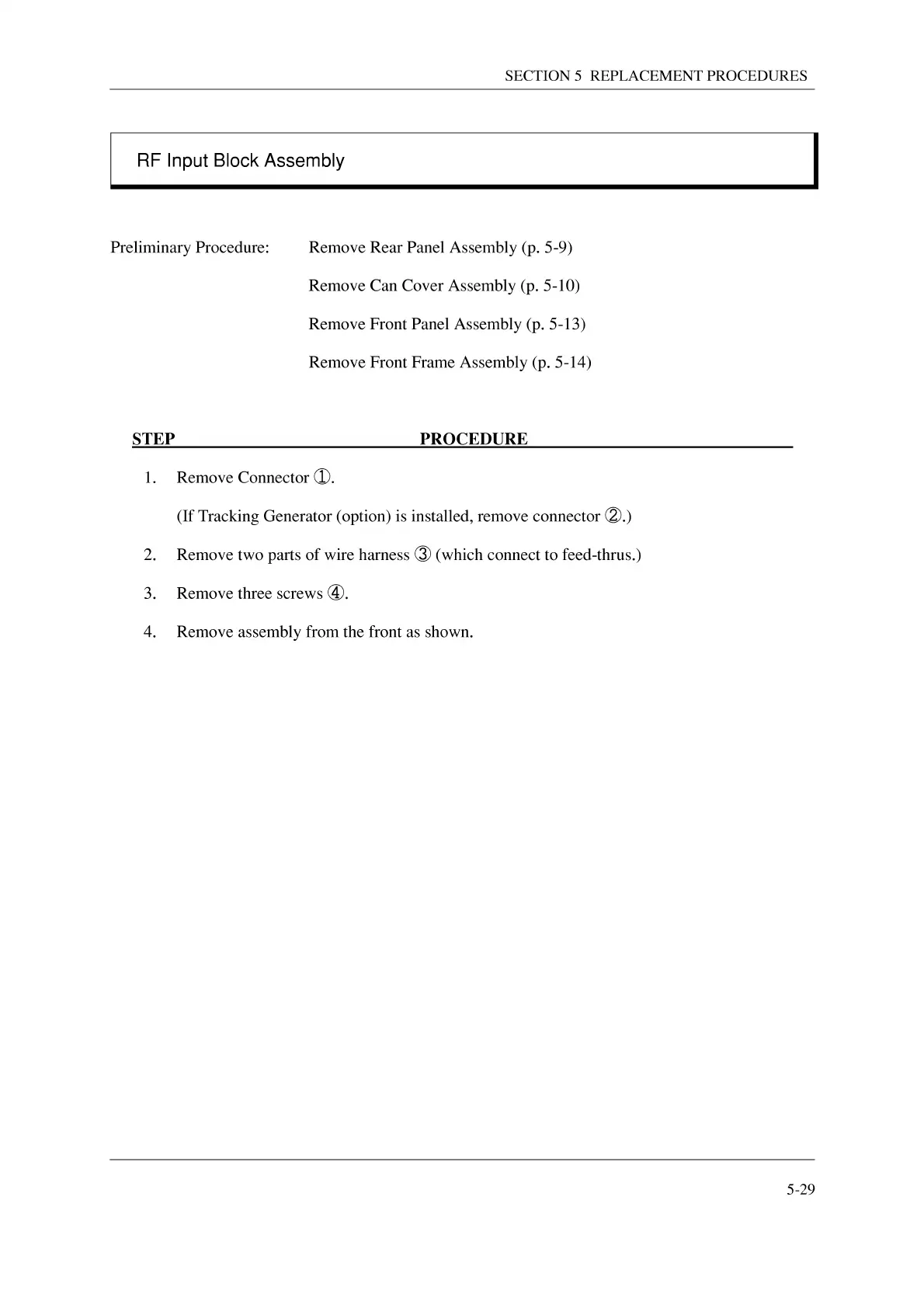

SECTION 5 REPLACEMENT PROCEDURES
RF
Input
Block
Assembly
Preliminary Procedure: Remove Rear Panel Assembly (p. 5-9)
Remove Can Cover Assembly (p. 5-10)
Remove Front Panel Assembly (p. 5-13)
Remove Front Frame Assembly (p. 5-14)
STEP
PROCEDURE
1.
Remove Connector
CD.
(If Tracking Generator (option) is installed, remove connector
(2).)
2.
Remove two parts of wire harness Q) (which connect to feed-thrus.)
3. Remove three screws
@.
4. Remove assembly from the front as shown.
