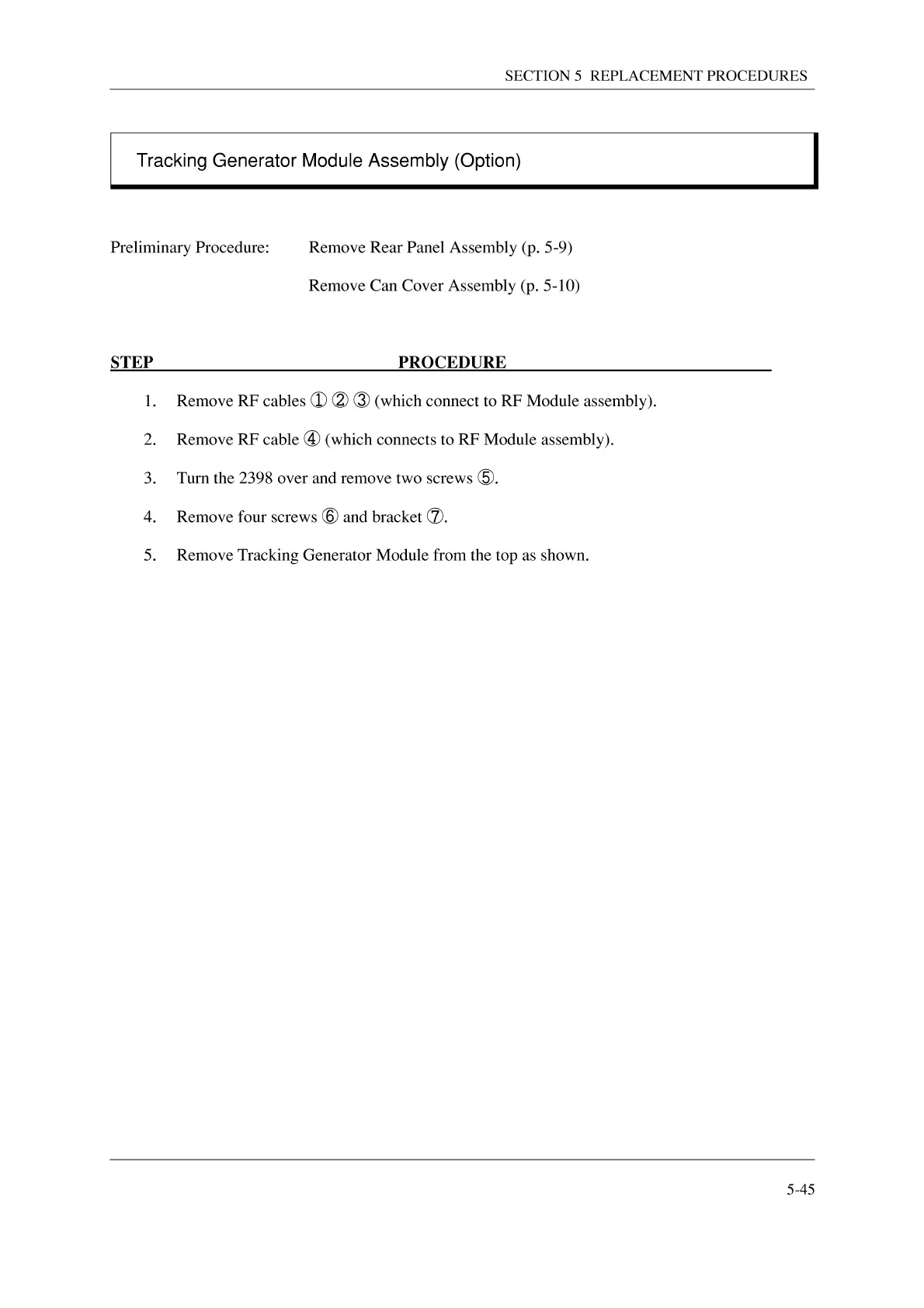

SECTION 5 REPLACEMENT PROCEDURES

Tracking

Generator

Module

Assembly

(Option)

Preliminary Procedure: Remove Rear Panel Assembly (p. 5-9)

Remove Can Cover Assembly (p. 5-10)

STEP

PROCEDURE

Remove RF cables

(2)

Q) (which connect to RF Module assembly).

Remove RF cable @ (which connects to RF Module assembly).

3. Turn the 2398 over and remove two screws

®.

4. Remove four screws ® and bracket (f).

Remove Tracking Generator Module from the top as shown.

5-45
