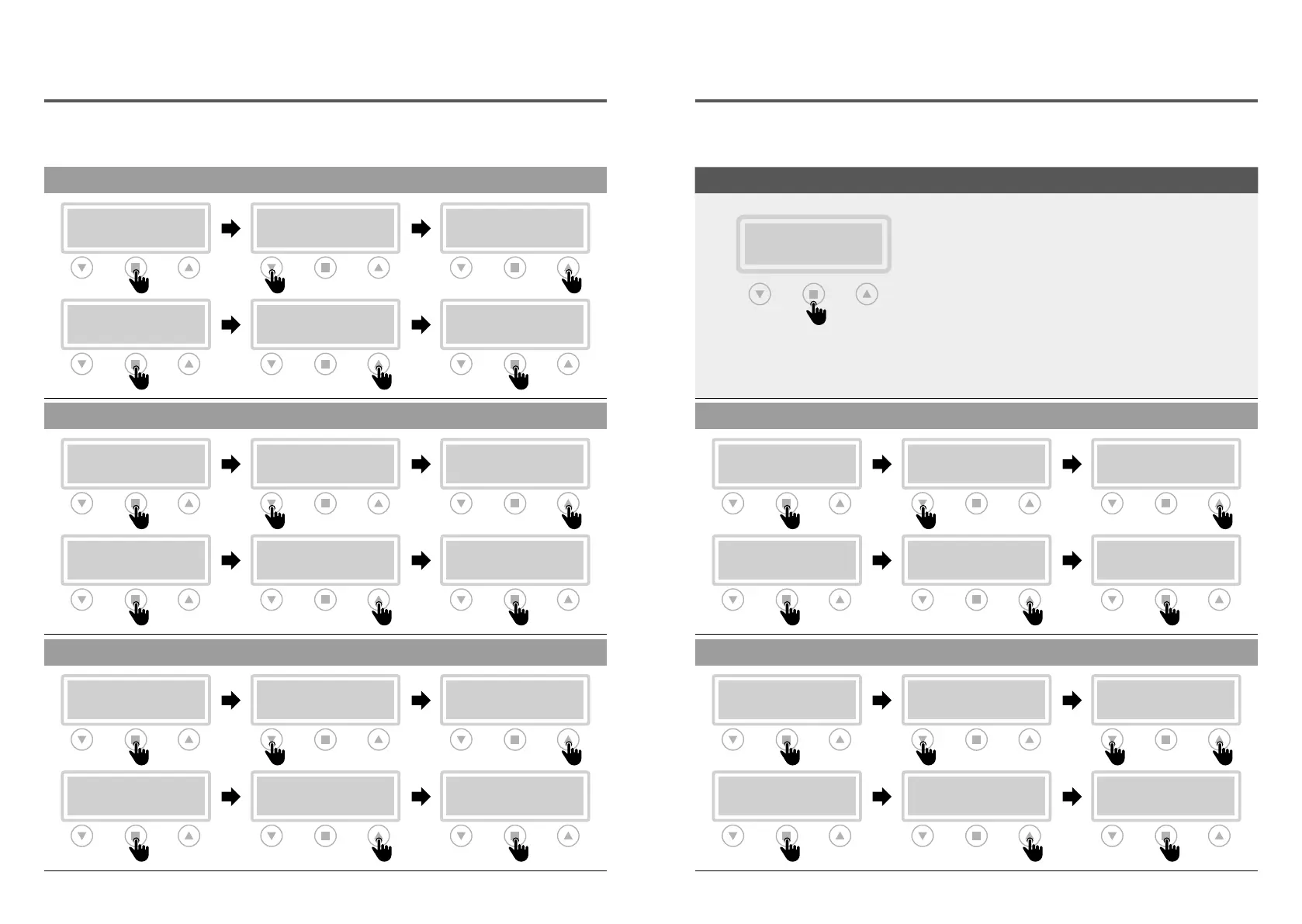

AES EPIC 2D - Page 11

2120
EPIC 2DEPIC 2D
SELF HOLDING
SELF HOLDING
>OFF
M06 PROGRAM
>SELF HOLDING
>EXIT
M06 PROGRAM
>SELF HOLDING
>SELF HOLDING
ON
SELF HOLDING
>ON
BMS SETTING
BMS
>ON
M06 PROGRAM
>BMS
>EXIT
M06 PROGRAM
>BMS
>BMS
OFF
BMS
>OFF
MULTI TANK SETTING
MULTI TANK
>ON
M06 PROGRAM
>MULTI TANK
>EXIT
M06 PROGRAM
>MULTI TANK
>MULTI TANK
OFF
MULTI TANK
>OFF
Installation Installation
M07 SENSOR (sensor/trasducer 4÷20 mA)
SET PARAMETERS
PARAMETERS
>XXX
M07 SENSOR
>PARAMETERS
>EXIT
M07 SENSOR
>PARAMETERS
>PARAMETERS
OFF
PARAMETERS
>OFF MT/BAR
ACCESS TO FUNCTION MODIFIED PARAMETERS
M06 PROGRAM
>M07 SENSOR
The “SENSOR” function allows to use the control
panel with piezoresistive, piezocapacitive level sensors
or pressure transducers (logic 4÷20 mA).
ATTENTION: Switch off the control panel before
connecting the sensor.
PARAMETERS
Setting unit of measure (mt/bar)
FULL SCALE
Set the full scale value specified by the manufacturer of
the sensor used (serial value 160.0)
MINIMUM LEVEL
Parameter active only with unit of measure in mt
MAXIMUM LEVEL
Parameter active only with unit of measure in mt
START P1 e STOP P1
START P2 e STOP P2
SET FULL SCALE
FULL SCALE
>160.0
M07 SENSOR
>FULL SCALE
>EXIT
M07 SENSOR
>FULL SCALE
>FULL SCALE
160.0
FULL SCALE
>160.0
