EPIC 2DEPIC 2D InstallationInstallation

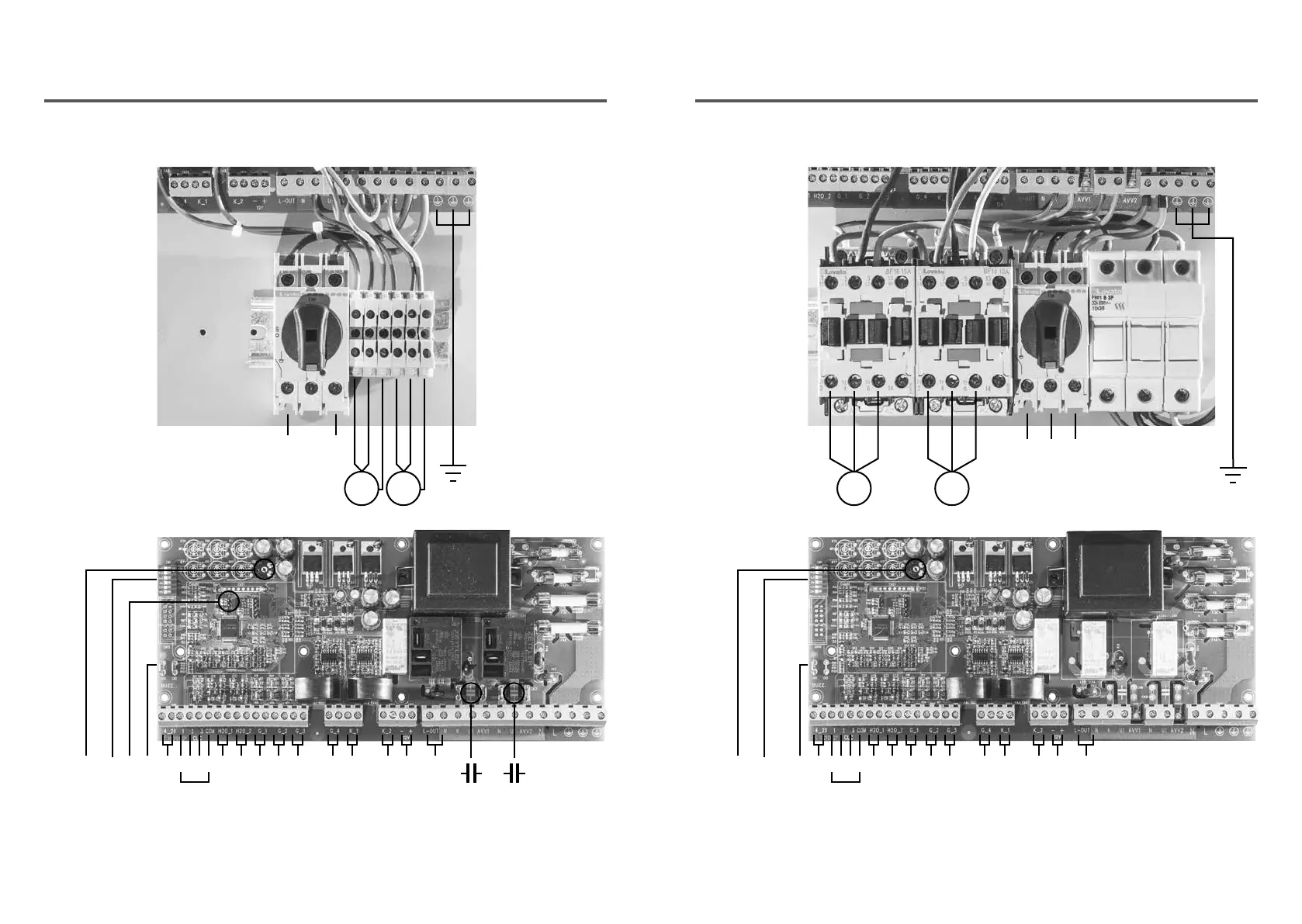

3.2 ELECTRICAL CONNECTIONS
230 V
50÷60 Hz
N L C
M1
1 2 3
LN
EPIC 2D 230 EPIC 2D 400
400 V
50÷60 Hz
TR SU V W
M1
4 5 6
N L C
M2
U V W
M2
H2O water in oil chamber 1
G1 float switch min level
G2 float switch 2
G3 float switch 3
G4 float switch max level
K1 klixon 1
12 V output alarm
230 V output alarm
2 3 C
CLC
buzzer alarm
SW1 dip-switch
trimmer 1
1
H2O water in oil chamber 2
K2 klixon 2
H2O water in oil chamber 1
G1 float switch min level
G2 float switch 2
G3 float switch 3
G4 float switch max level
K1 klixon 1
12 V output alarm
230 V output alarm
2 3 C
CLC
buzzer alarm
SW1 dip-switch
J1 jumper
trimmer 1
1
H2O water in oil chamber 2
K2 klixon 2
4÷20 mA sensor
4÷20 mA sensor
