AES Remora Mini - Exploded View

- 7 -

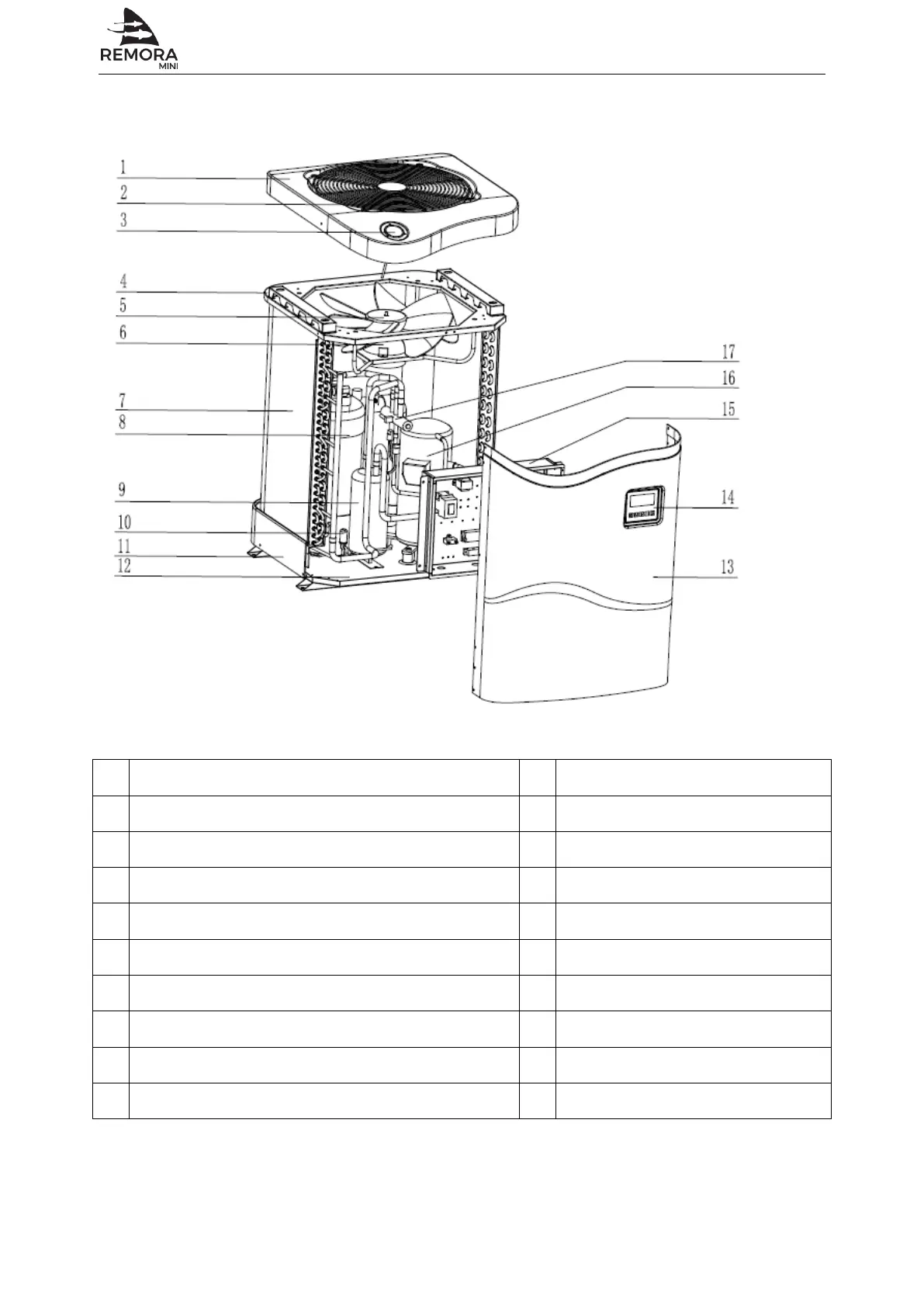

4. EXPLODED VIEW
1
Top cover
11
Plastic bottom panel
2
Fan grill
12
Metal bottom plate
3
Pressure gauge (Not available for mini units)
13
Front panel
4
Support frame
14
Wired controller
5
Fan blade
15
Electrical control box
6
Fan motor
16
Compressor
7
Evaporator
17
4-way valve
8
Titanium heat exchanger
9
Liquid separator (Not available for mini units)
10
EEV (Not available for mini units)
