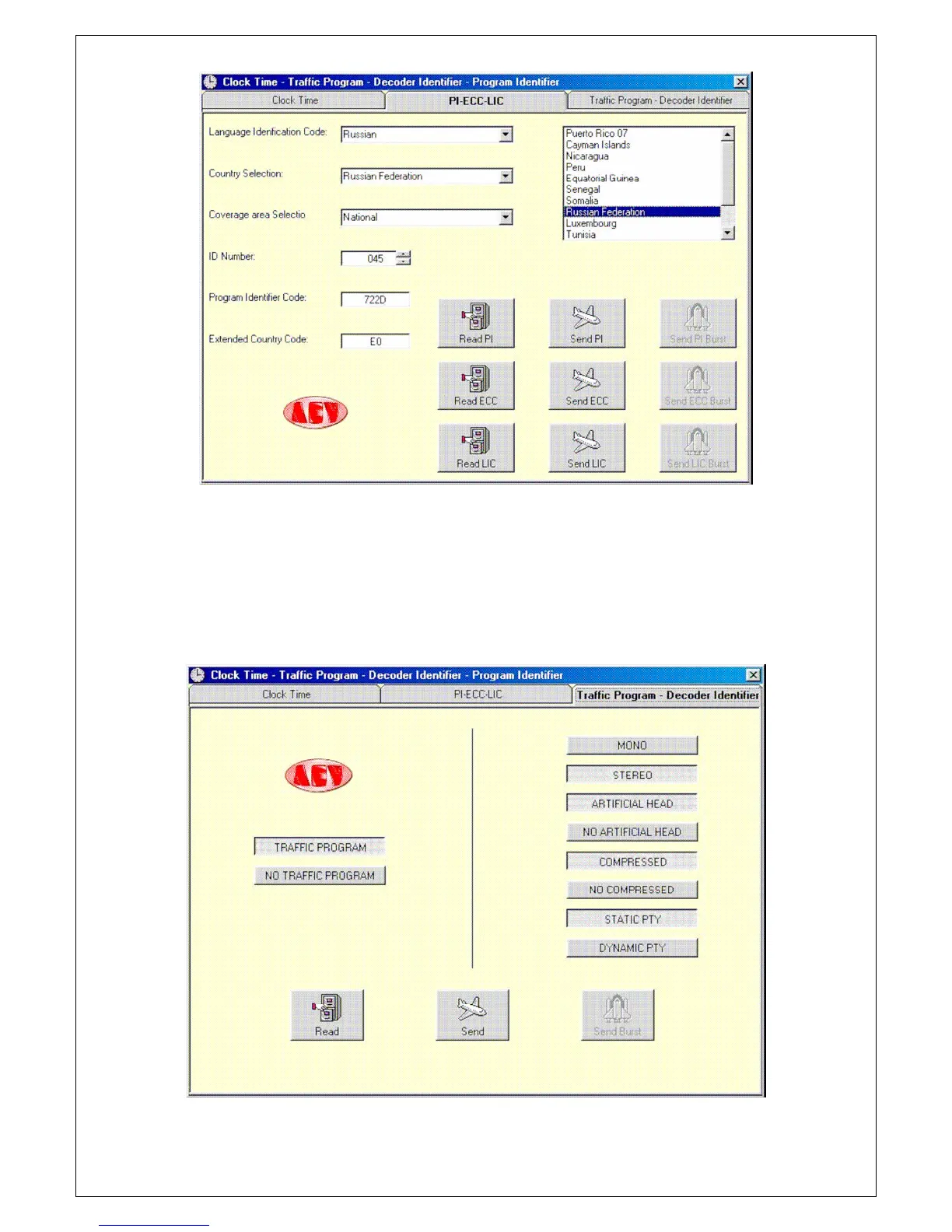

In the following board, the parameters of the Program Identifier can be entered together with
relative further extensions.
The first setting to be made is the type of language used in transmission (Language
identification Code), then select the country (Country Selection), then the type of coverage
(Coverage area Selection) and finally the ID.
The Extended Country Code and the right table are displayed together. The Send push
buttons are used to send the update to the coder, whereas the Read push buttons are used
to read the information set previously.
Let’s now see the Traffic Program - Decoder Identifier board.
The TP option can be selected on the left side. The options relative to the type of
transmission are available on the right side. Once the choices have been made, sent
the update to the coder using the Send push button. Use the Read push button to read
