the radio in the PSN box, in our case radio SUN, enter the two frequencies in the boxes at
the side of AF Method A writing, in our case 100.0 and 104.5 in the second box. Finally
enter code 5159 in the PI box.
At this stage simply send the setting to the rds coder.
To make the setting with method B, proceed in the same manner.
Radio MISS has frequencies 90.5, 91.0 and 93.5, 94.0, radio ABC has PI 5156 and frequencies
89.0, 102.0, 103.5 and 106.5, radio BOYS has PI 5160 and frequencies 98.0 e 100.5.
Select page number 0, enter the name of the first radio in the PSN box, in our case radio ABC.
Now enter the frequencies in the boxes at the side of AF Method B writings, the frequencies of
radio MISS are entered in the first column, those of the associated radio in the second, relative
to the same coverage areas, in our case those of radio ABC.
90.5 102.0
91.0 103.5
93.5 106.5
94.0 89.0
Then enter code 5156 in the PI box.
Make the same settings in page 1 for radio BOYS, enter the name of the radio in the PSN box,
in our case radio BOYS, then complete the frequencies boxes, bearing in mind, as said above,
that those on the left side relate to radio MISS and those on the right side to radio BOYS.
90.5 100.5
93.5 98.0
Then enter code 5160 in the PI box.
At this stage simply send the settings to the rds coder.

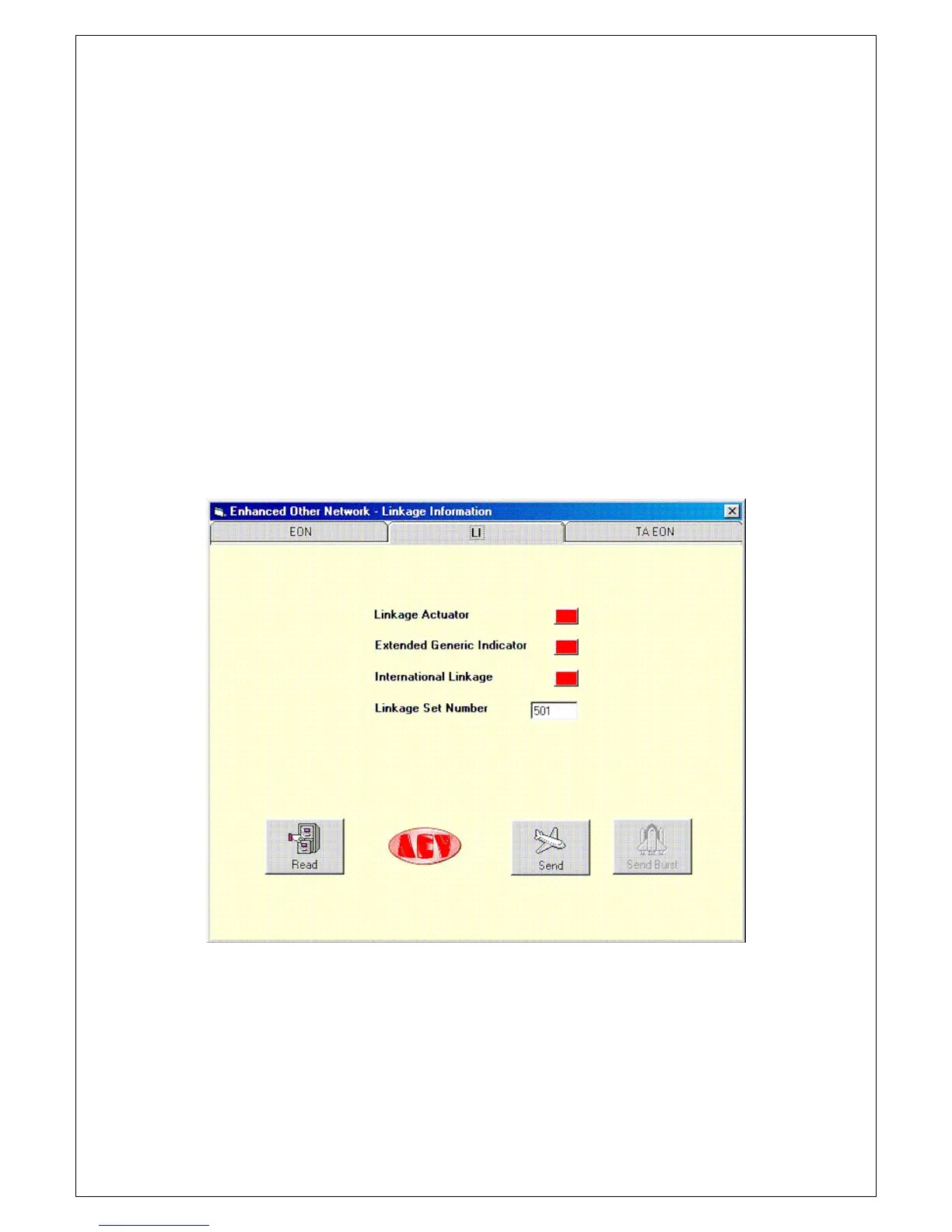

From the Linkage Information board, some parameters relative to the network transmission
can be attributed. In particular using the Linkage Actuator push button, the network
connection activation command is sent, the Extended Generic Indicator, which is a command
not yet used, the International Linkage, which establishes whether the connection in use is of
the national or international type and finally the Linkage Set Number which is the connection
code.
We have still another board, TA EON, which is used only to send all the TA EON selected all
together.
