SMART-SHIFT INSTALLATION
HONDA ODYSSEY 20112017
After calibration (see Section 3), verify that the
vehicle is in Park. The shift cable should be secured
to the Nose Cone using the 5/16” x 3/4” long button
head bolt and 5/16” lock nut.
Secure the shift cable to the Smart Shift by sliding
the end of the OEM cable onto the Cable Bracket and
rotating.

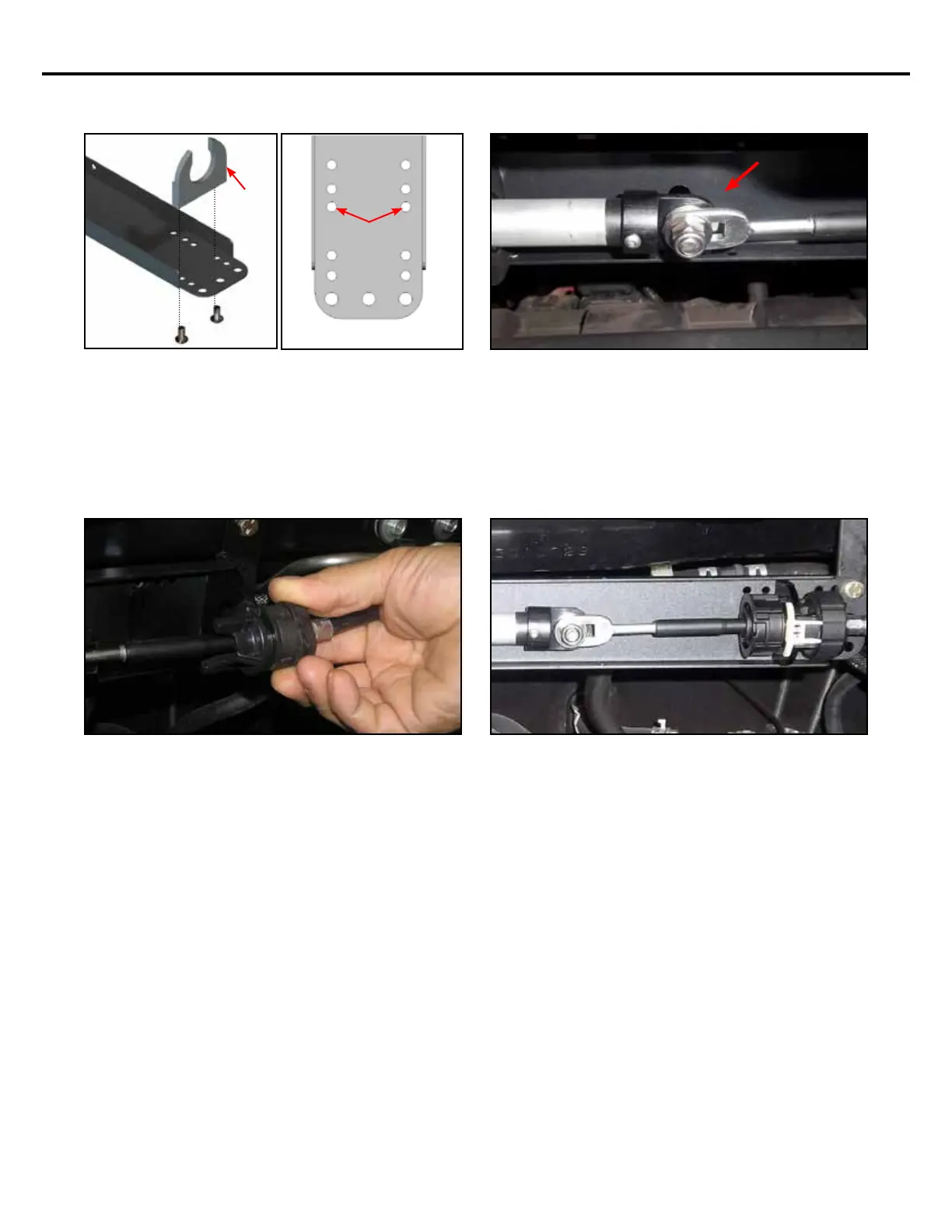

Attach the Cable Bracket (included in KIT-SS-ASSY-
04T) to the end of the Smart Shift bracket in the
location shown in the gures above. The at side of
the bracket should be facing away from the actuator.
Secure this bracket using the (2) provided #10-32 x
3/8” button head screws and a small amount of Blue
Loctite®.
2011-2017
HONDA ODYSSEY
CABLE
BRACKET
Drill out the nose cone hole to 5/16”. Using a 5/16” x
3/4” long button head bolt and 5/16” lock nut, test
t the OEM shifter cable to the to the actuator Nose
Cone as shown. Hint: Use the 3/8” hole directly be-
neath the Nose Cone to gain access to the underside
of the Nose Cone in order to insert and tighten the
screw as shown.
OEM shift cable connector
