Aeware in.zone - Page 11

10
in.zone
installation
spa
air contro
l
water
air venturi line
to the spa
tee with hose
connector
injection point
hartford
loops
check
valve
O
zone injection system

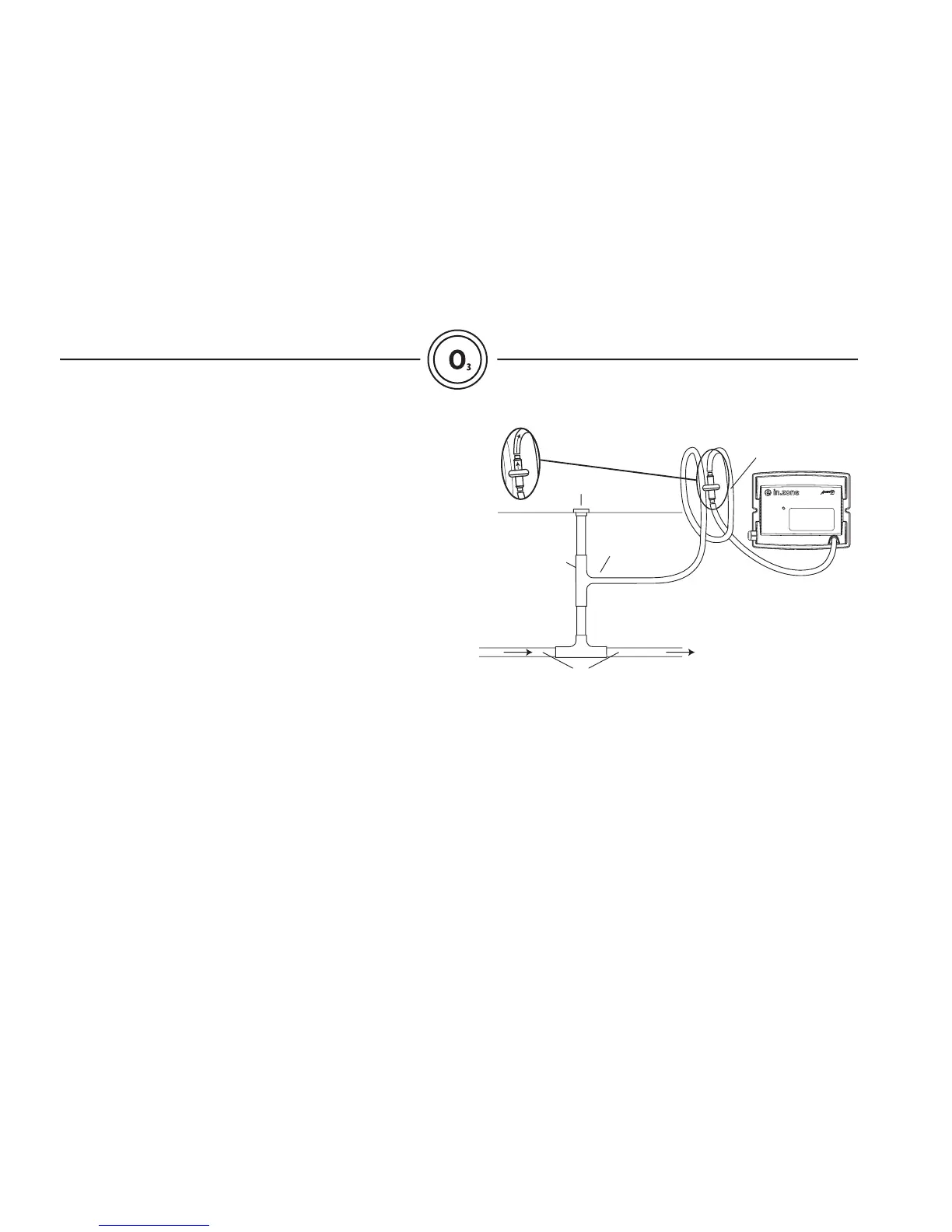

B- To install with an air control injector:
This method can be used if the air control valves are closed.
Injection point must be installed on the venturi air line of the spa.
B1-
Follow the safety instructions listed at the beginning of
this manual.
B2-
Select the venturi line with the best suction and select a
location for the injection point that will lead to the lowest spa
jet in the spa.
B3-
Cut the air control tube.
B4-
Install a tee with a hose connector (tee with hose connector
and other fi tting can be
purchased
at your spa
dealer store).
Use all material needed to make sure your 1⁄4” ID fl exible tube
will be installed safely.
B5-
Connect in.zone so you are sure it will only be activated when
a suction effect is created by the circulation pump.
B6-
Don't forget to perform a suction test before powering
up in.zone (refer to suction test page 11).
