Aeware in.zone - Ozone Injection System

9

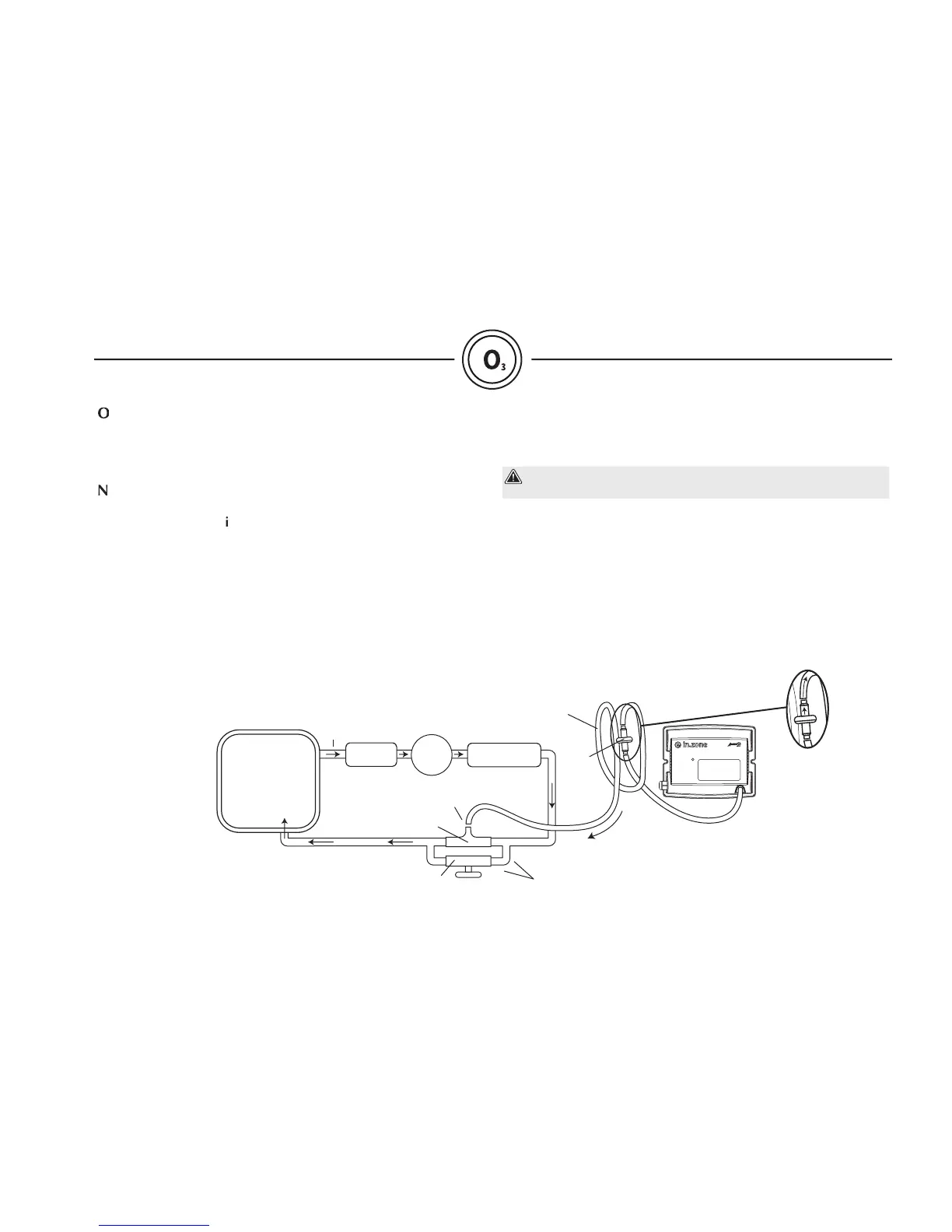

in.zone
installation
Spa
Pu
mp
Filter
water flo
w
va
lve bypass (manifold & venturi)
check
valve
check
valve
hartford
loops
ve
nturi
injection point
Heater
air flow
O
zone injection system
Ozone ready spa:
Follow the manufacturer’s instructions to
install in.zone on an ozone ready spa.
N
on
ozone ready spa:
A- To install with an
i
njection manifold
(bypass)
* Manifold and Venturi can be purchased at spa dealers stores.
A1-
Follow the safety instructions listed at the beginning
of this manual.
A2-
Cut a section of 1 1⁄2” plumbing after the fi lter, pump and
heater. You should install the manifold (bypass) as far as
possible from the spa tub. The longer the tube is between the
bypass and the spa the better because it gives time and space
to ozone to mix with water. We recommend to have at least
10' of tubing between the injection point and the spa tub.
Attention: It is important that ozone do not pass through the
heater or fi lter
A3
- Install the injector manifold with a bypass purchased at a spa
dealer store (the kit should include the venturi).
A4-
Connect in.zone so you are sure it will be activated when
pump is working and at its lowest speed (if it is a 2 speed
pump).
A5
- Don't forget to perform a suction test before powering
up in.zone (refer to suction test page 11).
