AFG 18.0 AXT - Step 1: Main Frame and Stabilizer Assembly

BEFORE
YOU BEGIN
6
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
ASCENT TRAINER
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
ASSEMBLY
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASCENT TRAINER
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TOOLS INCLUDED PARTS INCLUDED
c Phillips Screwdriver
c 4mm L Wrench
c 5mm L Wrench
c 5mm T Wrench
c 13/15mm Flat Wrench
c 1 Console
c 1 Console Mast
c 1 Water Bottle Holder
c 1 Main Frame
c 1 Front Stabilizer Tube
c 1 Base Rail
c 2 Footpads
c 1 Audio Adaptor Cable
c 3 iPod
®
Dock Inserts
c 2 Crank Caps
c 2 Upper Hadlebars
c 2 Lower Handlebars
c 2 Swing Arms
c 2 Link Arms
c 2 Pedal Arms
c 2 Rear Uprights
c 2 Top Hand Rails
c 1 AC Adaptor Cable
c 1 Universal MP3 Player Dock Insert
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
CONSOLE
WATER BOTTLE HOLDER
FRONT STABILIZER TUBE
UPPER HANDLEBAR
SWING ARM
BASE RAIL BRACKET
BASE RAIL
CONSOLE MAST
PEDAL ARM
CRANK
HEART RATE HAND GRIPS
LOWER HANDLEBAR
CRANK CAP
ELBOW COVER
LINK ARM
FOOT PAD
SWING ARM BRACKET
SWING ARM CAP
TOP HAND RAIL
INCLINE BRACKET
MAIN FRAME
SIDE COVER
REAR UPRIGHT
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BASE RAIL
FRONT STABILIZER TUBE
MAIN FRAME
MAIN FRAME
WASHER (B)
20 mm
Qty: 8
BOLT (A)
20 mm
Qty: 8
WASHER (B)
34 mm
Qty: 8
BOLT (A)
20 mm
Qty: 8
HARDWARE BAG 1 CONTENTS:

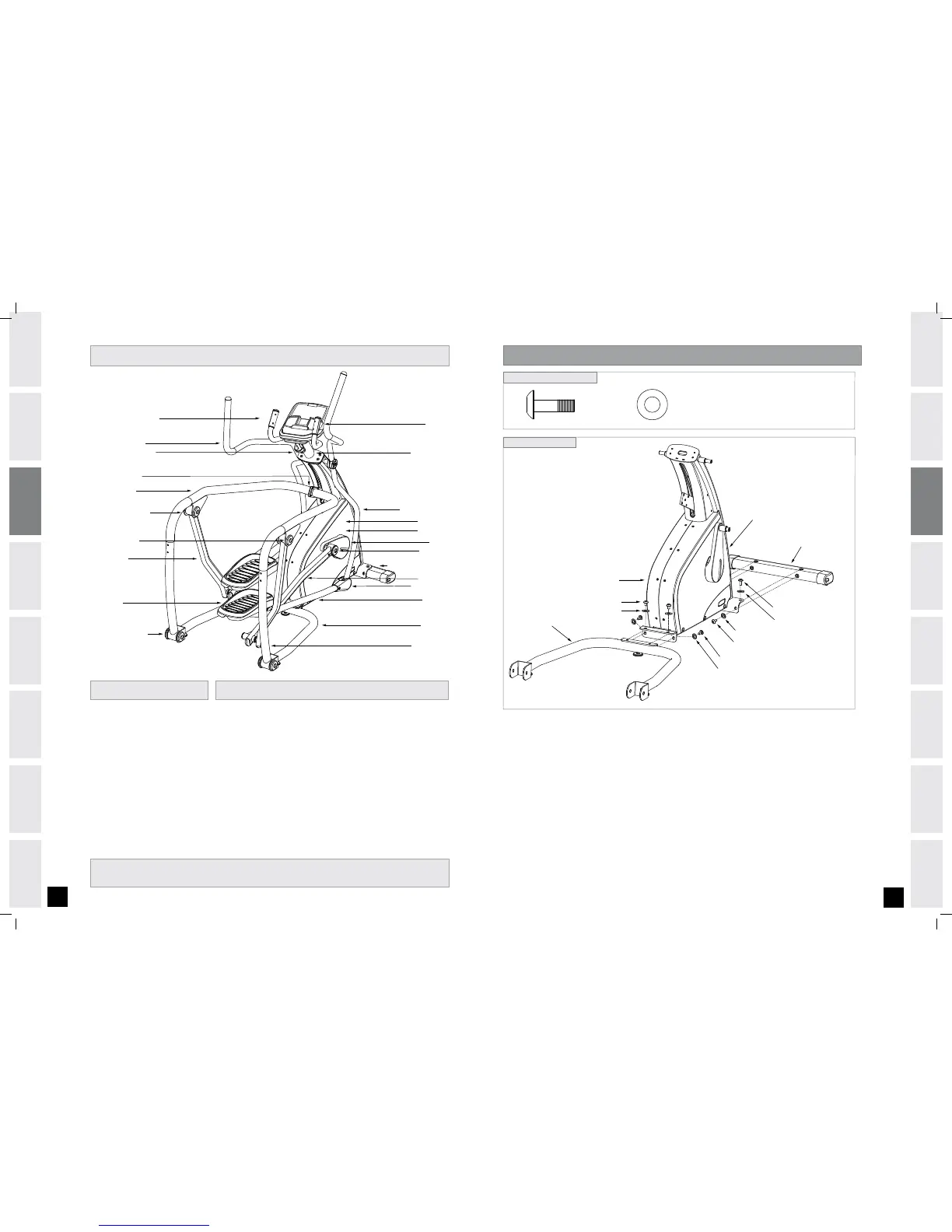

ASSEMBLY STEP 1:
Open HARDWARE BAG 1.
Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 4 BOLTS (A) and 4 WASHERS (B).
Attach the BASE RAIL to the MAIN FRAME using 4 BOLTS (A) and 4 WASHERS (B).
A
B
C
ASSEM B LY S T E P 1
DIAGR A M A ND PART S L IST
TOOLS I N C LUDED PARTS I N C LUDED
c
Phillips Screwdriver
c
5 mm T Wrench
c
5 mm L Wrench
c
6 mm L Wrench
c
13/15 mm Flat Wrench
c
1 Console
c
1 Console Mast
c
1 Water Bottle Holder
c
1 Main Frame
c
1 Front Stabilizer Tube
c
1 Base Rail
c
4 Base Rail Bracket Caps
c
2 Footpads
c
1 Audio Adaptor Cable
c
3 iPod
®
Dock Inserts
c
2 Crank Caps
c
2 Upper Handlebars
c
2 Lower Handlebars
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
c
2 Swing Arm/Pedal Arm Sets
c
4 Swing Arm Caps
c
2 Link Arms
c
2 Elbow Cover Sets
c
2 Rear Uprights
c
2 Top Hand Rails
c
1 Power Cable
c
1 Universal MP3
Player Dock Insert
c
1 iPod
®
Docking Station Plug
c
10 Hardware Bags
c
1 Wireless Chest Strap
