AFG 2.5 ae - Assembly Steps; Step 1: Attach Stabilizer Tube

10

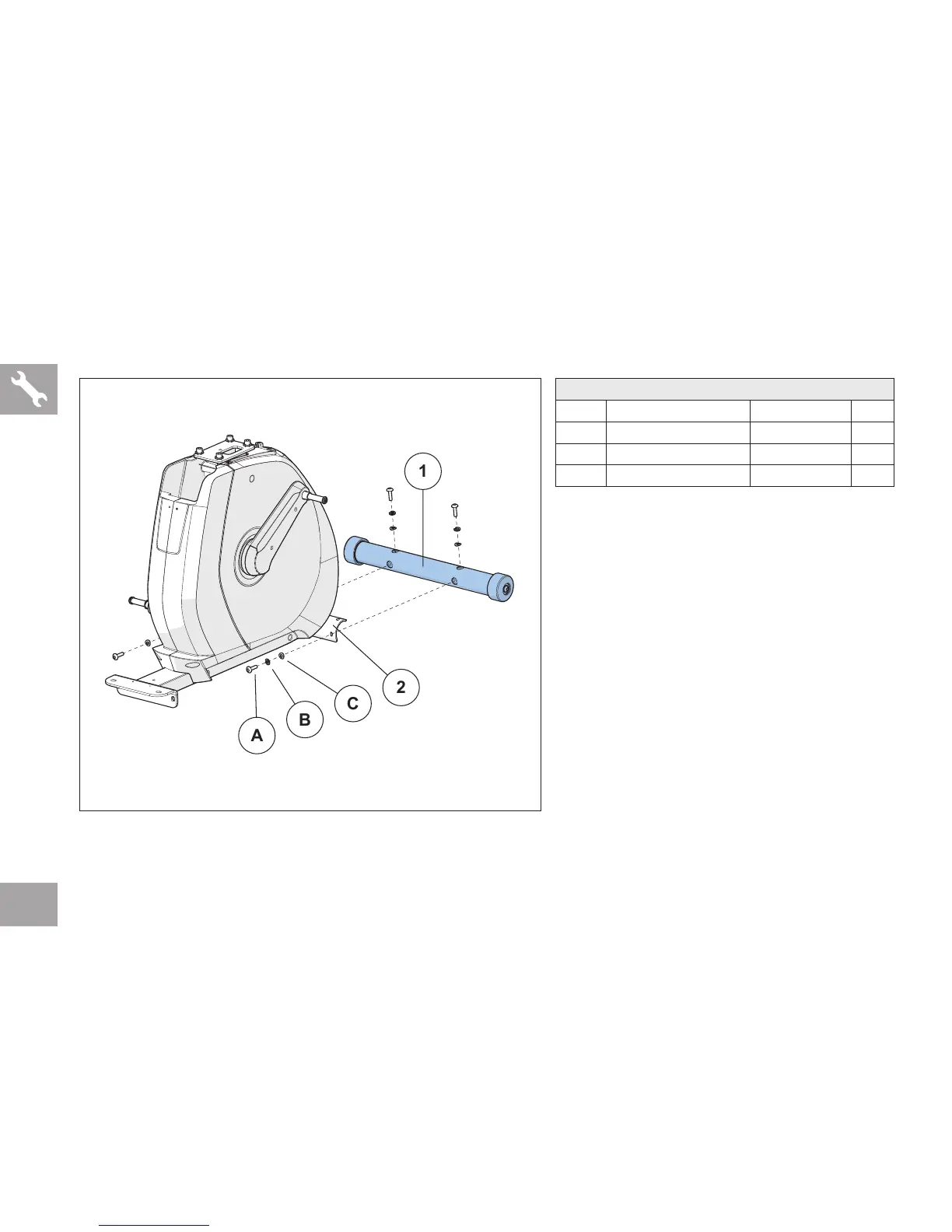

ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the STABILIZER TUBE (1) to the
MAIN FRAME (2) using 2 BOLTS (A),
2 SPRING WASHERS (B) and 2 ARC
WASHERS (C) on each side.
A
B
C
2
1
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
A BUTTON HEAD BOLT M8X1.25PX30L 4
B SPRING WASHER 8.2X15.4X2.0T 4
C ARC WASHER 8.4X17.0X1.0T 4
