AFG 2.5 ae - Step 2: Attach Guide Rail Set

11
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
D SOCKET CAP BOLT M10X1.5PX20L 4
E SPRING WASHER 10.2X18.4X2.5T 4
F FL AT WASHER 10.2X20.0X1.5T 4

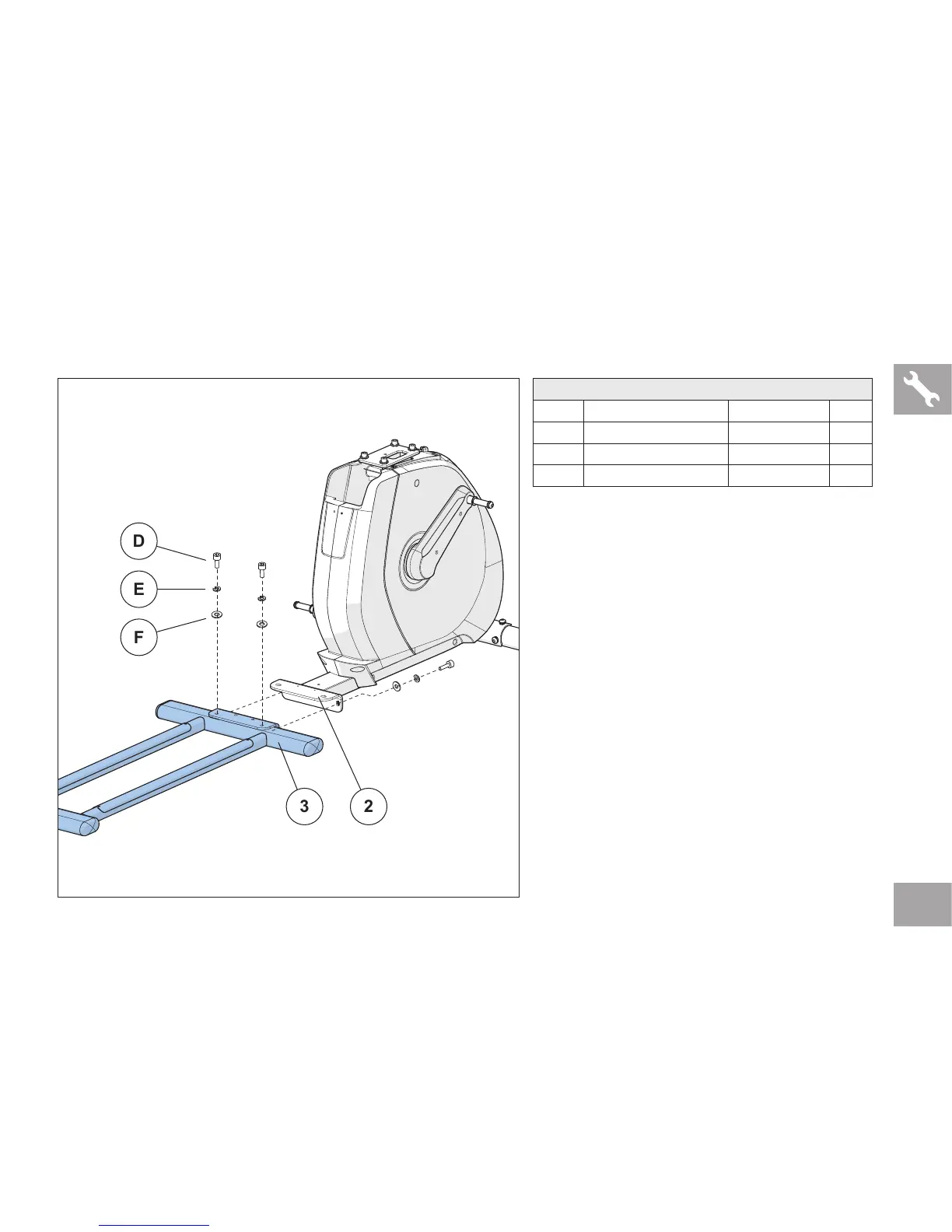

ASSEMBLY STEP 2
3
2
E
F
D
A Open HARDWARE FOR STEP 2.
B Align GUIDE RAIL SET (3) with MAIN
FRAME (2) as shown.
C Attach the GUIDE RAIL SET (3) to the
MAIN FRAME (2) using 4 BOLTS (D),
4 SPRING WASHERS (E) and 4 FLAT
WASHERS (F).
