NOTE: Be
careful not
to pinch any
wires while
attaching the
console mast.

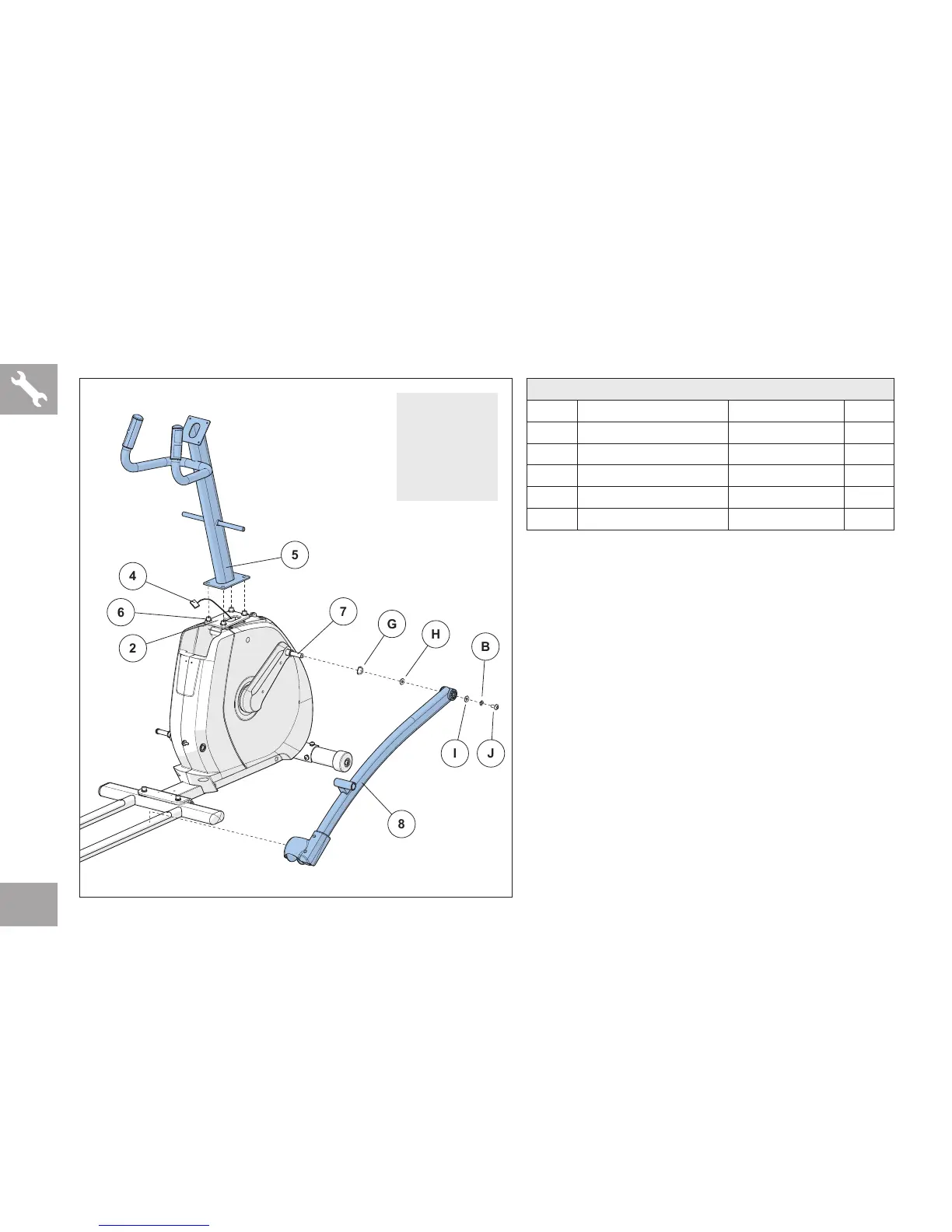

ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Remove PRE-INSTALLED BOLTS AND
WASHERS (6) from MAIN FRAME (2).
C Carefully pull the CONSOLE CABLE (4) through
the CONSOLE MAST (5) using the twist tie
located inside the CONSOLE MAST (5).
D Attach CONSOLE MAST (5) to MAIN FRAME (2)
using PRE-INSTALLED BOLTS AND WASHERS
(6).
E Slide WAVY WASHER (G) and FLAT WASHER
(H) over CRANK (7) followed by PEDAL ARM (8)
as shown. Rest pedal arm wheel on guide rail.
F Attach the PEDAL ARM (8) to the CRANK (7)
using 1 FLAT WASHER (I), 1 SPRING WASHER
(B) and 1 BOLT (J).
G Repeat steps E–F on the opposite side of the
elliptical.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
G WAVY WASHER 17.2X22.5X0.5T 2
H FL AT WASHER 16.0X25.0X1.0T 2
I FL AT WASHER 8.2X30.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX15L 2
