AFG 2.5 ae - Step 4: Attach Lower Link Arms

13
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
K FL AT WASHER 20.2X27.2X1.5T 4
L WAVY WASHER 20.7X29.1X0.5T 2
I FL AT WASHER 8.2X20.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX20L 2

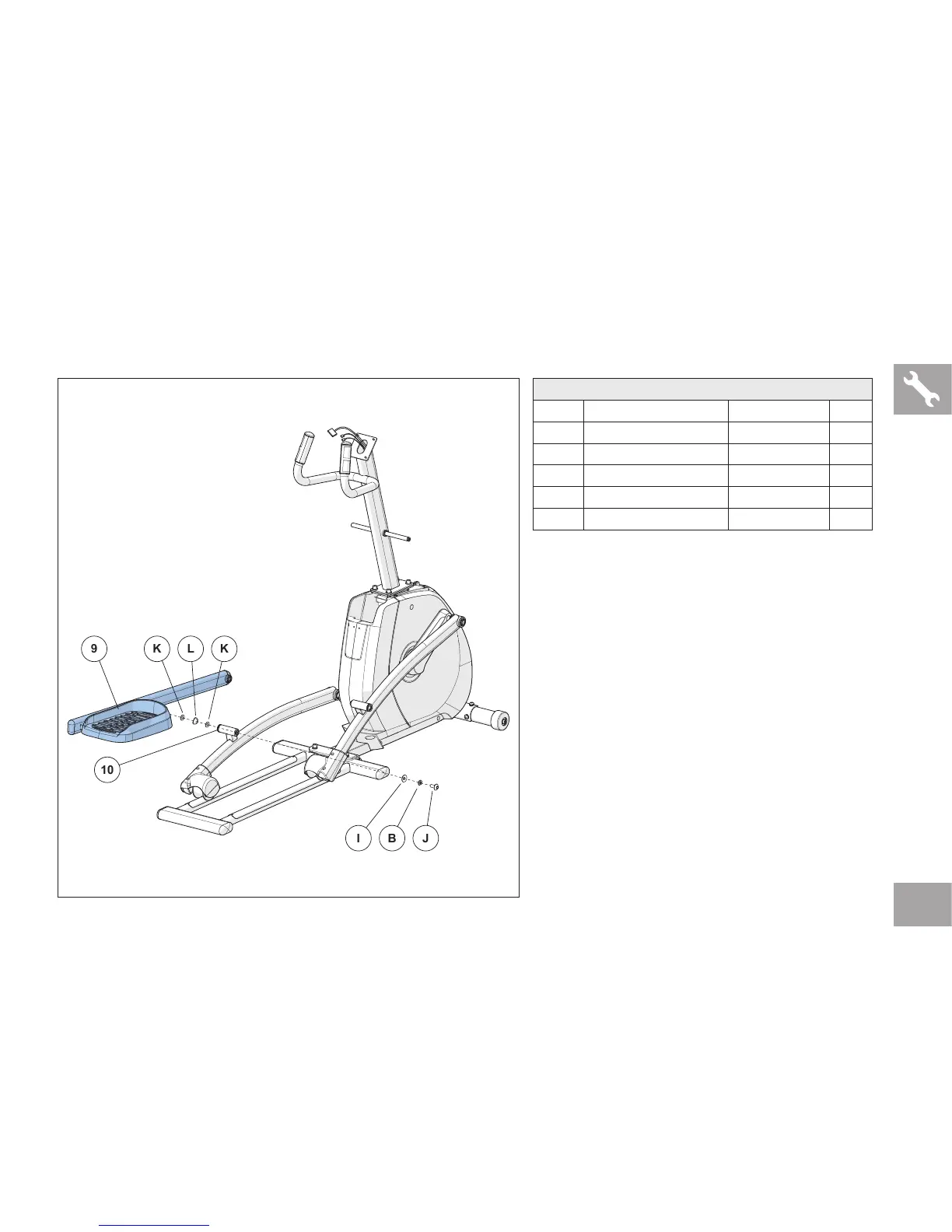

ASSEMBLY STEP 4
9
10
K
L
K
I
B
J
A Open HARDWARE FOR STEP 4.
B Slide 1 FLAT WASHER (K), 1 WAVY
WASHER (L) and another FLAT
WASHER (K) onto the LOWER LINK ARM
(9).
C Slide the LOWER LINK ARM (9) into the
PEDAL ARM BRACKET (10).
D Attach the LOWER LINK ARM (9)
to the PEDAL ARM BRACKET (10)
using 1 FLAT WASHER (I), 1 SPRING
WASHER (B) and 1 BOLT (J).
E Repeat steps B–D on the opposite side of
the elliptical.
