AFG 2.5 ae - Step 5: Attach Lower Handlebar

14
H
G
H
I
B
5
12
J

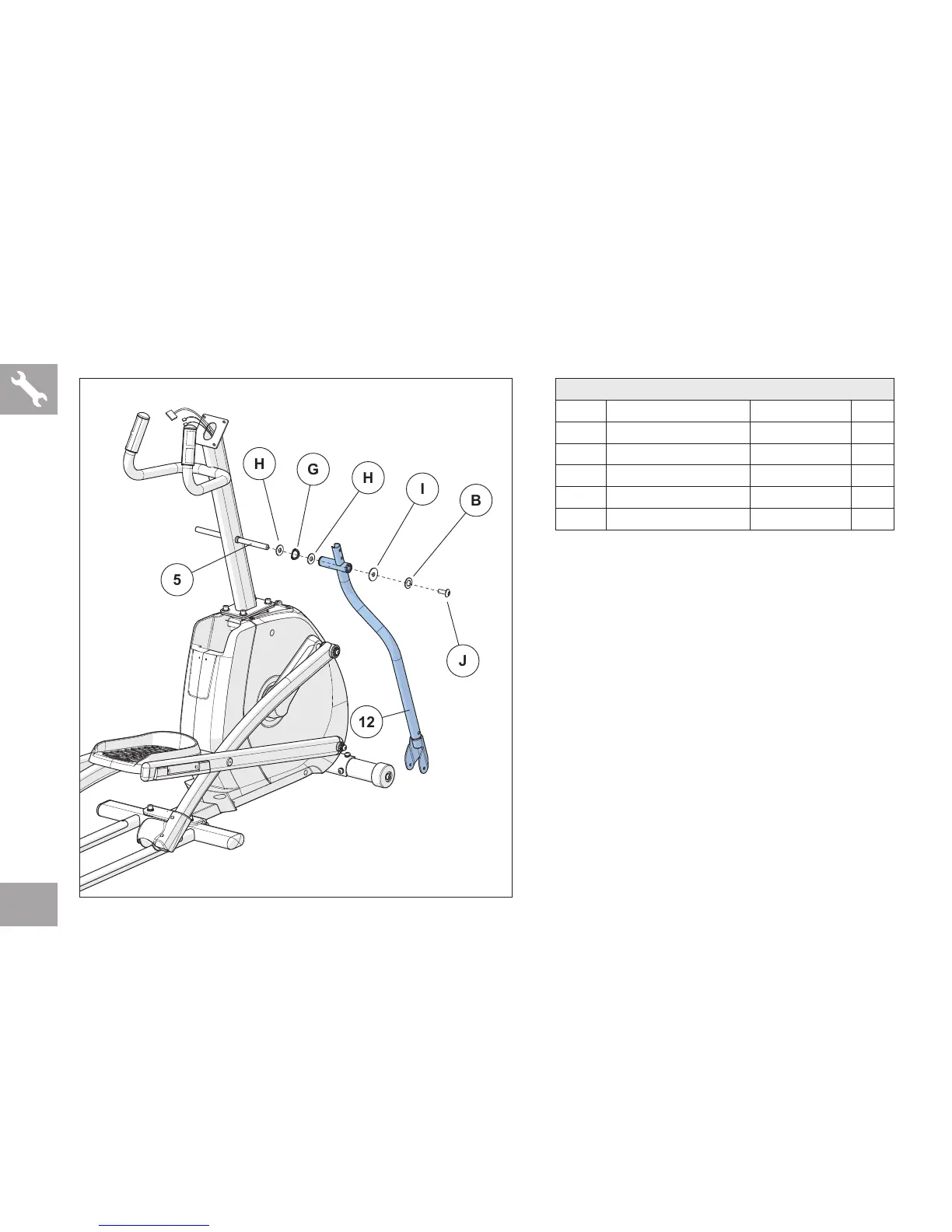

ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 6.
B Slide 1 FLAT WASHER (H), 1 WAVY WASHER
(G) and 1 FLAT WASHER (H) onto the
CONSOLE MAST (5).
C Slide LOWER HANDLEBAR (12) onto
CONSOLE MAST (5) and attach using 1 FLAT
WASHER (I), 1 SPRING WASHER (B) and 1
BOLT (J).
D Repeat steps B–C on the other side.
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
G WAVY WASHER 17.2X22.5X0.5T 2
H FLAT WASHER 16.0X25.0X1.0T 4
I FL AT WASHER 8.2X30.0X1.5T 2
B SPRING WASHER 8.2X15.4X2.0T 2
J BUTTON HEAD BOLT M8X1.25PX20L 2
