AFG 2.5 ae - Step 6: Secure Lower Link Arm

15
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
K BOLT M8X1.25PX70L-12L 2
B SPRING WASHER 8.2X15.4X2.0T 2
I FL AT WASHER 8.2X20.0X1.5T 2
L NUT M8X1.25P 2

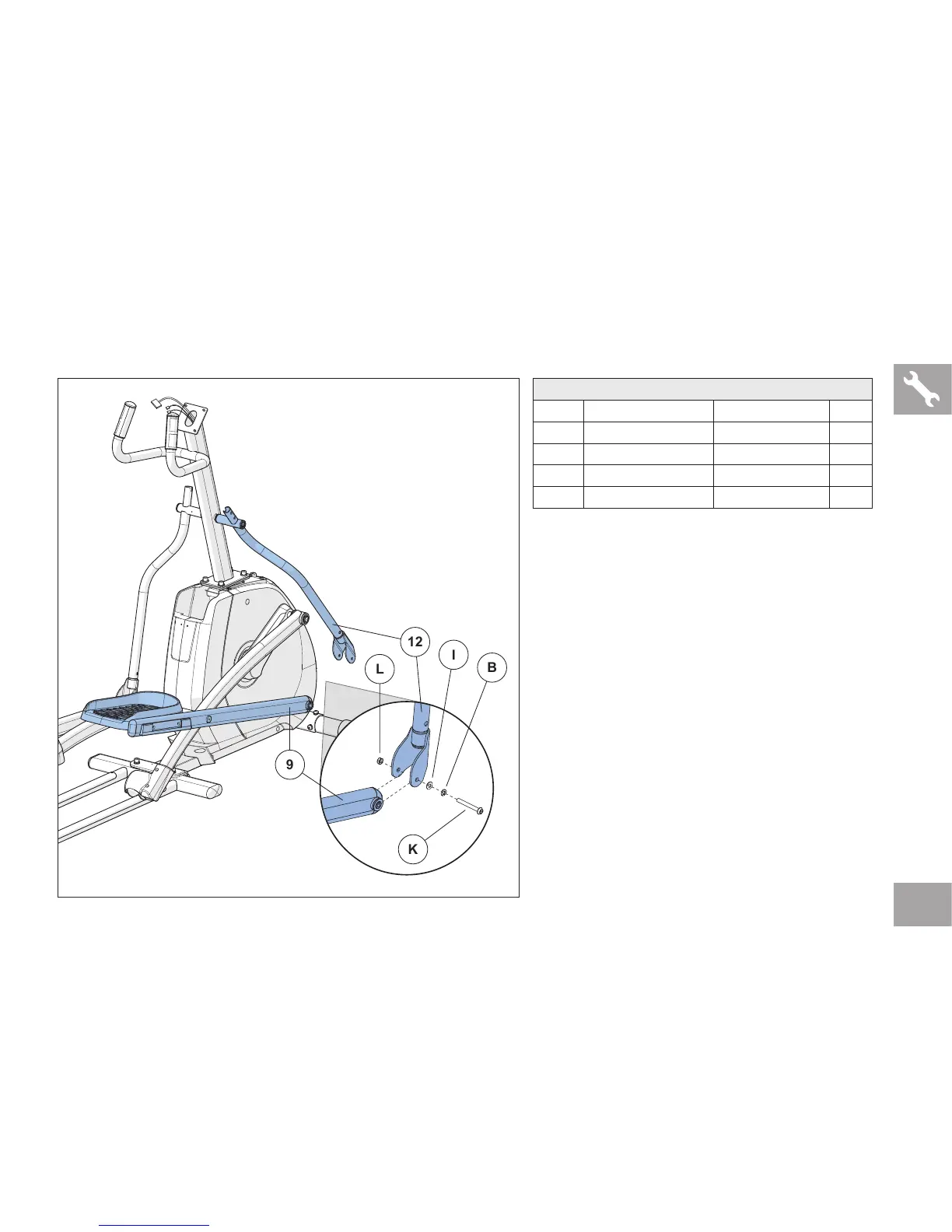

ASSEMBLY STEP 6
12
I
B
9
K
L
A Open HARDWARE BAG 6.
B Slide LOWER LINK ARM (9) into bottom end of
LOWER HANDLEBAR (12).
C Secure the joint with 1 BOLT (K), 1 SPRING
WASHER (B),1 FLAT WASHER (I) and 1
NUT (L).
D Repeat steps B–C on the opposite side of
the elliptical.
