AFG 3.3AT - Assembly Step

1110
A
1
2
1
D
C
B

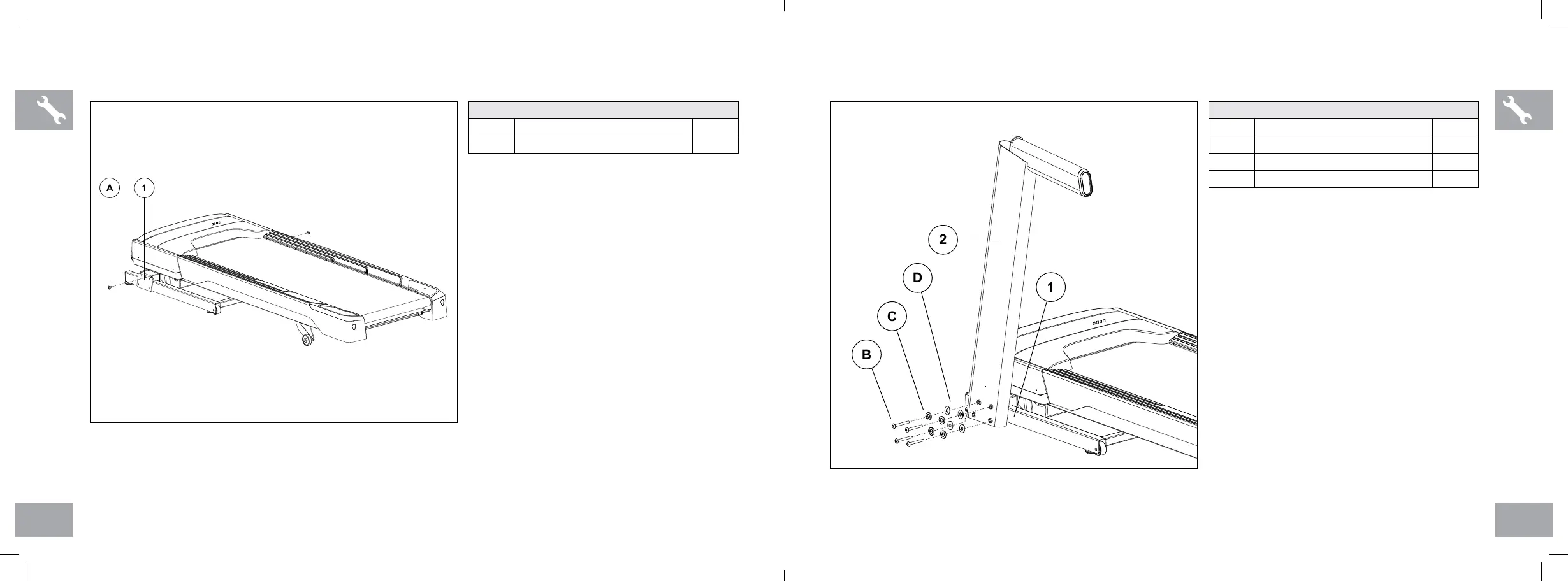

ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward to remove all contents
from underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Insert 2 BOLTS (A) into MAIN FRAME
BRACKETS (1).
HARDWARE FOR STEP 1
PART TYPE QTY
A BOLT 2
ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Attach LEFT CONSOLE MAST (2) so that
BOLT (A) sits on the NOTCHED HOLE in the
bottom of the CONSOLE MAST.
C Attach LEFT CONSOLE MAST (2) to MAIN
FRAME BRACKET (1) using 4 BOLTS (B),
4 SPRING WASHERS (C), and 4 FLAT
WASHERS (D).
HARDWARE FOR STEP 2
PART TYPE QTY
B BUTTON HEAD BOLT 8
C SPRING WASHER 8
D FLAT WASHER 8
