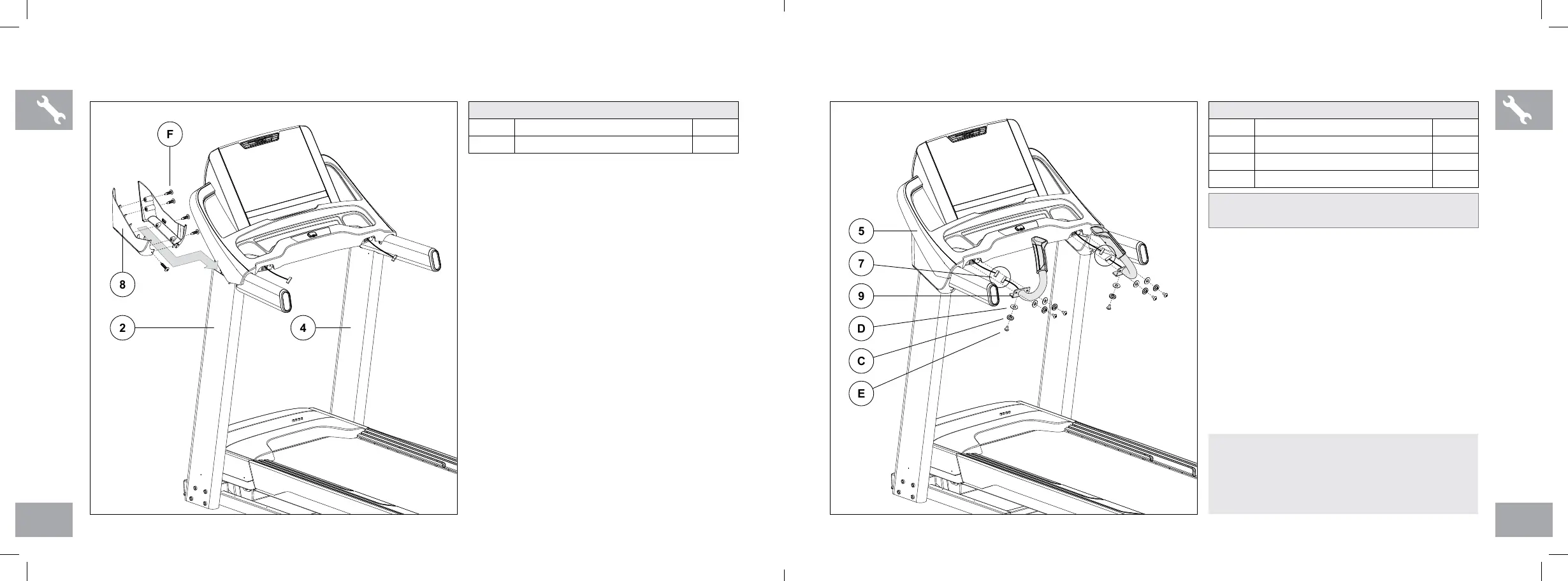

ASSEMBLY STEP 6
A Open HARDWARE FOR STEP 6.
B Connect the HEART RATE CABLES
(7) and carefully tuck them inside the
CONSOLE (5).
C Attach HEART RATE BAR (9) to the
CONSOLE (5) using using 3 BOLTS (E),
3 SPRING WASHERS (C) and 3 FLAT
WASHERS (D).
D Repeat on other side.
HARDWARE FOR STEP 6
PART TYPE QTY
E BUTTON HEAD BOLT 6
C SPRING WASHER 6
D FLAT WASHER 6
NOTE: Be careful not to pinch the console
cables while attaching the console.
ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Slide both CONSOLE MAST COVERS (8)
under the console around CONSOLE MAST
(2).
C Attach CONSOLE MAST COVERS (8) using 4
SCREWS (F) from the inside and 1 SCREW (F)
from the front.
D Repeat on other side (4).
HARDWARE FOR STEP 5
PART TYPE QTY
F SCREW 10
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.
