Afore AF3K-THP - Mounting Location

Installation
09

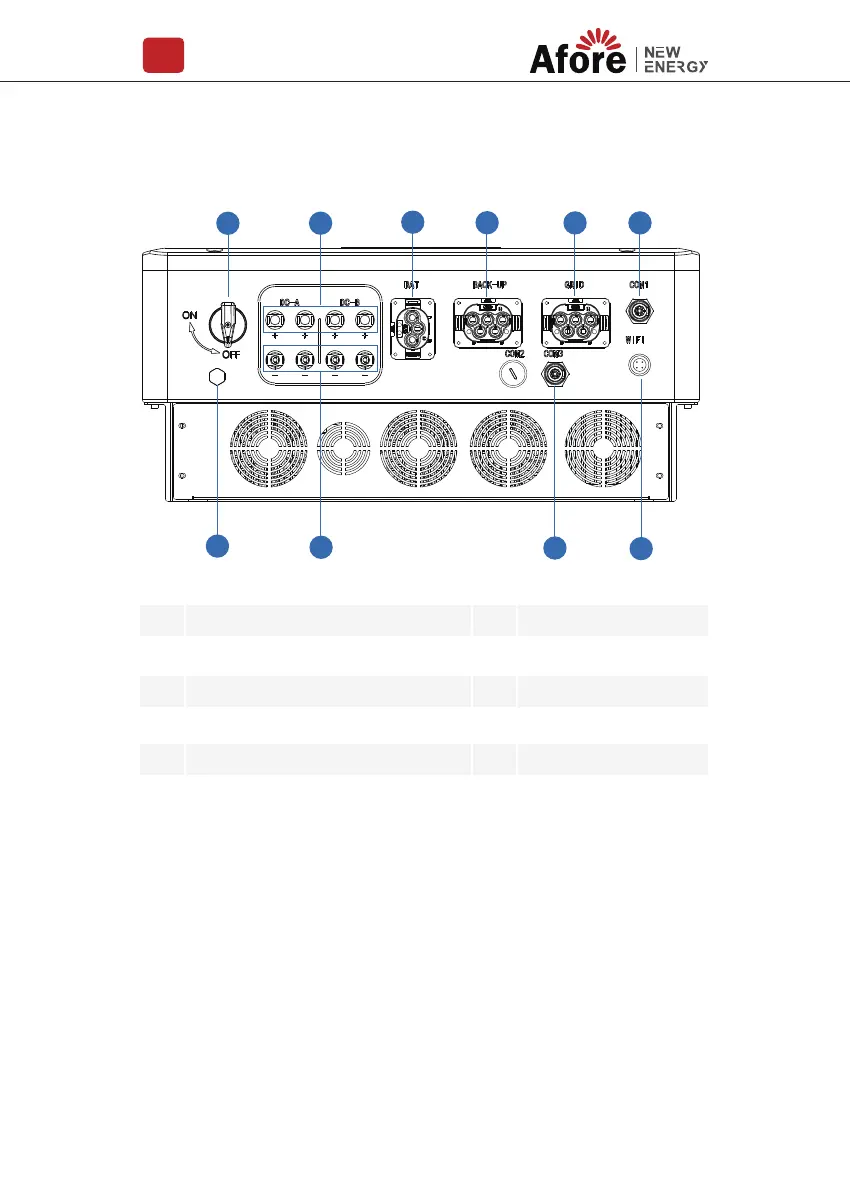

Inverter Terminals
The inverters are designed for indoor and outdoor installation (IP65), to increase
the safety, performance and lifespan of the inverter, please select the mounting
location carefully based on the following rules:
• The inverter should be installed on a solid surface, far from flammable or
corrosion materials, where is suitable for inverter’s weight and dimensions.
• The ambient temperature should be within -25℃ ~ 60℃ (between -13 °F and
140°F).
• The installation of inverter should be protected under shelter. Do not expose
the inverter to direct sunlight, water, rain, snow, spray lightning, etc.
4.1.3 Mounting Location
No. Items
DC Switch
Waterproof Ventilating Valve
DC Connectors ( + ) For PV Strings
DC Connectors ( − ) For PV Strings
Battery Port
1
2
3
4
5
No. Items
BACK UP
BAT Port
GRID UP
Meter Port
Wifi Port
6
7
8
9
10
1
3
5
6
8
9
2
4
7
10
