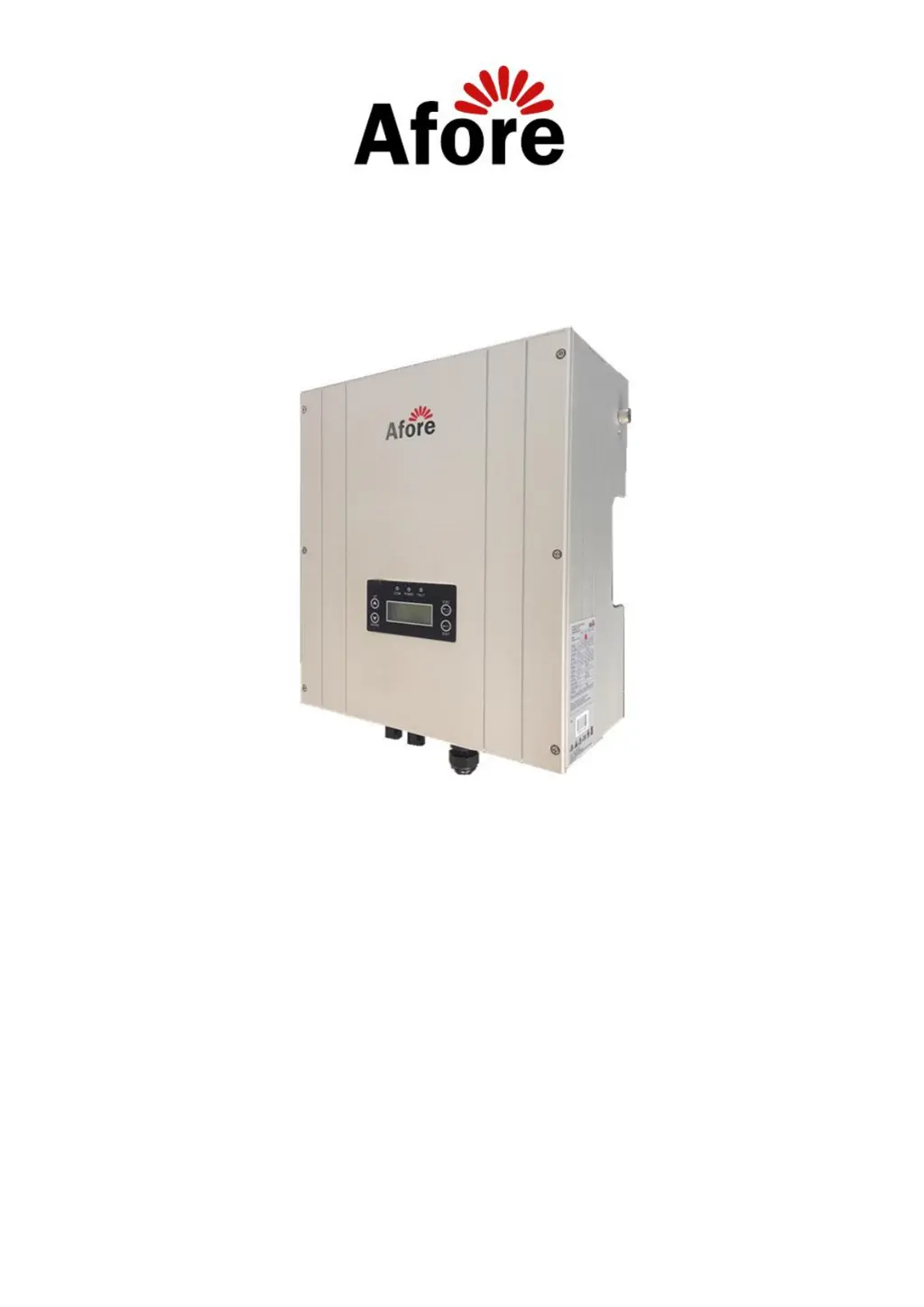

USER’S MANUAL
On-Grid PV Inverter
Anyhome Series：HNSxxxxTL-1(xxxx=1000,1500,2000,2500,3000,3600)
HNSxxxxTL(xxxx=3000, 3600, 4000, 5000,6000,7000,8000)
Version：03.610100011008-V0.01

Table of Contents

Other manuals for Afore HNS4000TL

Preview: Installation And Operation Manual
Installation And Operation Manual28 pages

Questions and Answers

  • S
    Samantha PetersenAug 15, 2025
    What to do if my Afore Inverter shows 'No Utility'?
    • R
      Robert StoneAug 15, 2025
      If your Afore Inverter displays a 'No Utility' error, it could be due to several reasons: a utility loss, the AC side circuit breaker being turned off, a poor connection on the AC side, or an inverter fault. First, if the grid returns to normal, the inverter will restart automatically. If not, replace the AC circuit breaker and check the AC connector for a secure connection. If the fault persists after several restarts, the inverter may need replacement.
  • O
    otranAug 18, 2025
    How to fix Bus High Fault/Bus Fault on Afore Inverter?
    • D
      Daniel FordAug 18, 2025
      A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by high PV input voltage or a poor AC side connection. To resolve this, check that the PV input voltage is within the acceptable range: 450Vdc for models up to 3.0kW, or 500Vdc for models up to 5.0kW. Also, ensure the AC connector and circuit breaker are well connected.
  • A
    amanda53Aug 21, 2025
    What to do if Afore Inverter shows Over Temperature Fault?
    • J
      Jason BarnesAug 21, 2025
      If your Afore Inverter displays an 'Over Temperature Fault', it may be due to the inverter enclosure being too hot or a temperature sensor fault. Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. If the problem persists, the temperature sensor may need to be replaced.
  • K
    Katelyn MartinAug 25, 2025
    Why does my Afore Inverter show a Ground Current Fault?
    • M
      Marissa KramerAug 25, 2025
      A 'Ground Current Fault' on your Afore Inverter can occur due to poor earthing leading to high leakage current, or if the PV(+) or PV(-) is earthed. To address this: 1. Check the AC output wiring and restart the inverter. 2. Check the PV array wiring.
  • M
    Michelle NguyenAug 28, 2025
    How to resolve PV Over Fault on Afore Inverter?
    • B
      Brianna HoffmanAug 28, 2025
      A 'PV Over Fault' on your Afore Inverter typically indicates that the PV array's Voc (open-circuit voltage) is too high. You should re-design the PV array configuration. Also, measure the PV array voltage to ensure it matches what the inverter displays.
  • R
    randyhernandezAug 31, 2025
    Why is my Afore Inverter showing a 'Bus High Fault' or 'Bus Fault'?
    • J
      Joseph KempAug 31, 2025
      A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by: * High PV Input voltage: Ensure the PV input voltage is within the specified range (450Vdc for up to 3.0kW models, 500Vdc for up to 5.0kW models). * Poor AC side connection: Check the AC connector and circuit breaker for a secure connection.
  • R
    Robert FloresSep 3, 2025
    What to do if Afore Inverter displays 'Over Temperature Fault'?
    • C
      craigjoshuaSep 3, 2025
      If your Afore Inverter is showing an 'Over Temperature Fault', it could be due to: * The inverter enclosure being too hot: Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. * A faulty temperature sensor: Replace the temperature sensor.
  • E
    Emily HansonSep 7, 2025
    How to solve 'Ground Current Fault' on Afore Inverter?
    • N
      Nicholas FlynnSep 7, 2025
      A 'Ground Current Fault' on your Afore Inverter may be due to: 1. Poor earthing or high leakage current: Check the AC output wiring and restart the inverter. 2. PV(+) or PV(-) earthed: Inspect the PV array wiring.
  • R
    rebecca82Sep 12, 2025
    Why does my Afore Inverter show 'PV Over Fault'?
    • K
      Kimberly RossSep 12, 2025
      An Afore Inverter displaying a 'PV Over Fault' typically indicates that the PV array's Voc (open-circuit voltage) is too high. To resolve this: * Redesign the PV array configuration. * Measure the PV array voltage to ensure it matches the inverter's display.

Summary

Safety Guidelines

Safety Precautions

Lists essential safety measures and warnings for handling the inverter and related equipment.

Explanations of Symbols

Inverter Mounting

Mounting Safety

Provides critical safety warnings and precautions related to the physical installation of the inverter.

Selecting the Mounting Location

Wall Mounting Procedure

Details the step-by-step process for mounting the inverter using the provided wall bracket.

Electrical Connections

Connection Area Overview

Connecting to the Public Grid (AC)

Explains the procedure and conditions for connecting the inverter to the AC power grid.

Connecting the PV Generator (DC)

Details the requirements and steps for connecting the solar PV generator to the inverter.

DC Connection Conditions

Specifies the requirements for PV modules and the limits for DC input voltage and current.

Connecting PV Generator DC Plugs

Guides on assembling and connecting DC plug connectors to the PV generator cables for the inverter.

Inverter Operation

Series Operation

Details the operational procedures, controls, displays, and commissioning steps for the inverter.

Commissioning

LED Display

LCD Display and Settings

Technical Specifications

Troubleshooting Guide

Warranty Information

Product Quality Standards and Warranty

Warranty Exceptions

Repair and Replacement

Afore HNS4000TL Specifications

General IconGeneral
ModelHNS4000TL
Rated Power4000W
Nominal AC Voltage230V
Frequency50/60Hz
Protection DegreeIP65
Cooling MethodNatural Convection
