Afore HNS6000TL User Manual

33 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

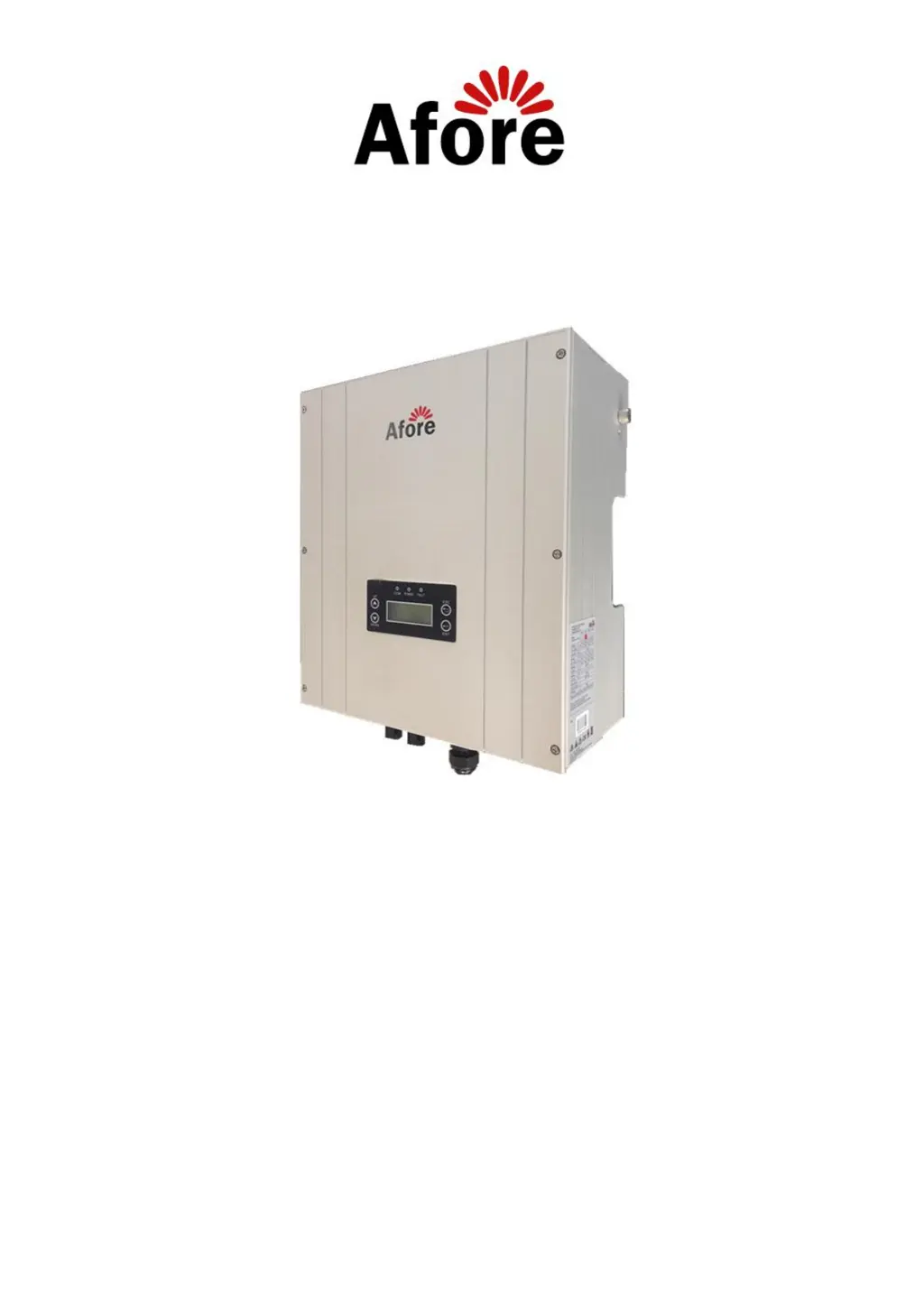

USER’S MANUAL

On-Grid PV Inverter

Anyhome Series：HNSxxxxTL-1(xxxx=1000,1500,2000,2500,3000,3600)

HNSxxxxTL(xxxx=3000, 3600, 4000, 5000,6000,7000,8000)

Version：03.610100011008-V0.01

Other manuals for Afore HNS6000TL

Installation And Operation Manual26 pages

Questions and Answers:

J
Jordan RichardsAug 9, 2025
What to do if my Afore Inverter shows 'No Utility'?
- M
  Michael ArellanoAug 9, 2025
  If your Afore Inverter displays a 'No Utility' message, it could be due to several reasons: * A utility outage: The inverter should automatically restart once the grid is back to normal. * A tripped AC circuit breaker: Replace the AC circuit breaker. * A poor AC connection: Check the AC connector for a secure connection. * Inverter fault: If the problem persists after several restarts, the inverter may need to be replaced.
J
Jeffery CannonAug 14, 2025
Why is my Afore Inverter showing a 'Bus High Fault' or 'Bus Fault'?
- E
  Erin LopezAug 14, 2025
  A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by: * High PV Input voltage: Ensure the PV input voltage is within the specified range (450Vdc for up to 3.0kW models, 500Vdc for up to 5.0kW models). * Poor AC side connection: Check the AC connector and circuit breaker for a secure connection.
W
Wyatt OrtizAug 21, 2025
What to do if Afore Inverter displays 'Over Temperature Fault'?
- D
  Dalton WrightAug 21, 2025
  If your Afore Inverter is showing an 'Over Temperature Fault', it could be due to: * The inverter enclosure being too hot: Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. * A faulty temperature sensor: Replace the temperature sensor.
D
Daniel BryantAug 27, 2025
How to solve 'Ground Current Fault' on Afore Inverter?
- A
  alexandra30Aug 27, 2025
  A 'Ground Current Fault' on your Afore Inverter may be due to: 1. Poor earthing or high leakage current: Check the AC output wiring and restart the inverter. 2. PV(+) or PV(-) earthed: Inspect the PV array wiring.
S
Sara MurphySep 1, 2025
Why does my Afore Inverter show 'PV Over Fault'?
- A
  Amy LeeSep 1, 2025
  An Afore Inverter displaying a 'PV Over Fault' typically indicates that the PV array's Voc (open-circuit voltage) is too high. To resolve this: * Redesign the PV array configuration. * Measure the PV array voltage to ensure it matches the inverter's display.

Afore HNS6000TL Specifications

General

Model	HNS6000TL
Type	Grid-tied Inverter
Rated Output Power	6000 W
Max. DC Power	6600 W
Start Voltage	200 V
Number of MPPT	2
Nominal AC Voltage	230V
Max. Output Current	27.3 A
Power Factor	>0.99
THDi	<3%
AC Grid Frequency	50/60Hz
Max. Efficiency	98.1%
Euro Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
AC Voltage Range	180~280V
Communication	RS485, WiFi, Ethernet
Humidity	0% - 100% (non-condensing)

Summary

Safety Instructions

Safety Precautions

Lists essential safety precautions for handling the inverter.

Explanations of Symbols

Explains the meaning of various safety symbols used in the manual.

Mounting

Mounting Safety

Critical safety considerations before and during inverter mounting.

Mounting Location Selection

Mounting with Wall Bracket

Electrical Connection

Connection Area Overview

AC Grid Connection

Procedures and conditions for connecting the inverter to the AC grid.

DC PV Generator Connection

Steps for connecting the inverter to the PV generator.

System Diagram

Operation

Product Overview

Series Operation

Details the operational modes and procedures for the inverter.

Technical Data

Trouble Shooting

Warranty Terms

Product Quality Standards and Warranty
