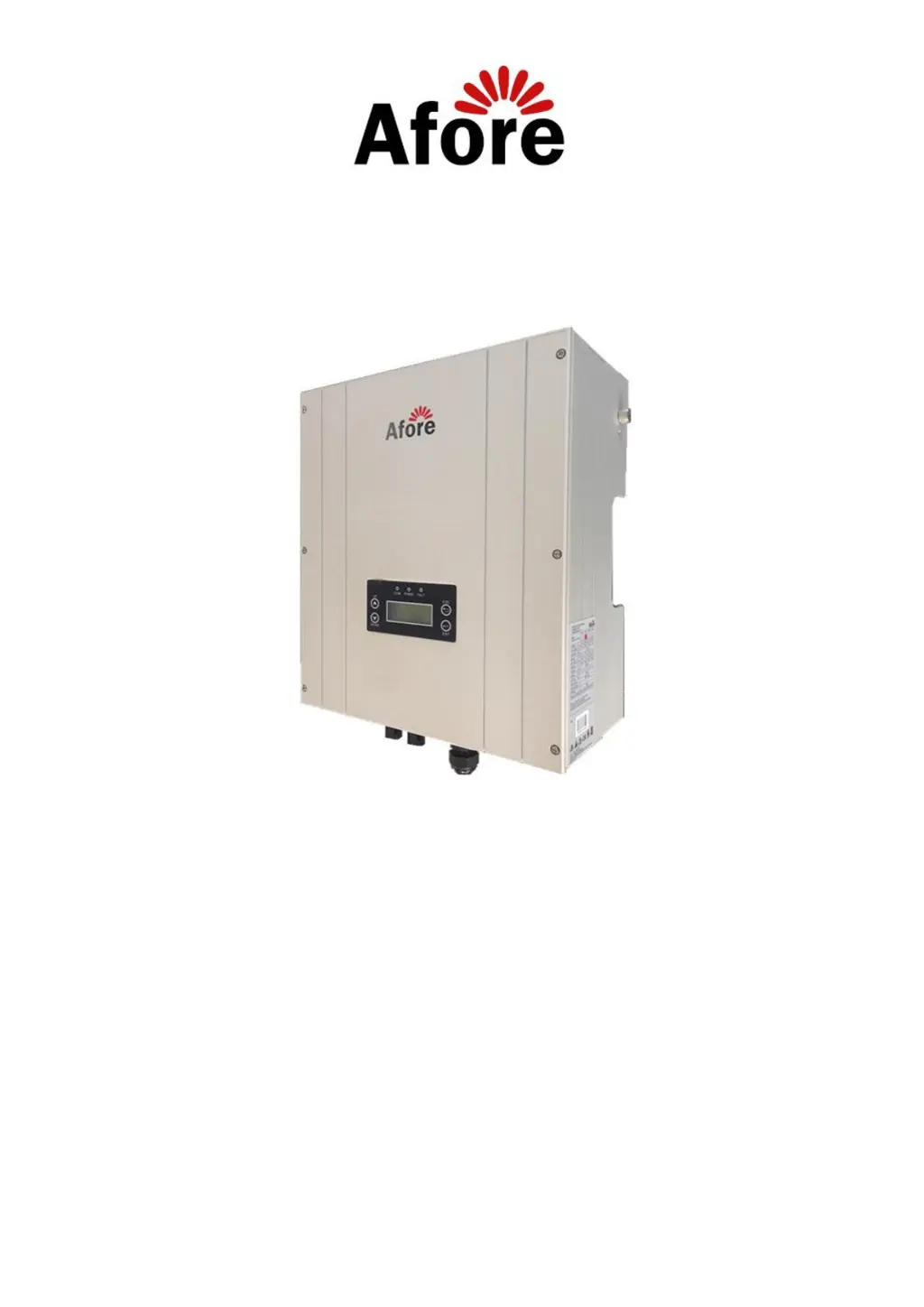

USER’S MANUAL

On-Grid PV Inverter

Anyhome Series：HNSxxxxTL-1(xxxx=1000,1500,2000,2500,3000,3600)

HNSxxxxTL(xxxx=3000, 3600, 4000, 5000,6000,7000,8000)

Version：03.610100011008-V0.01

Other manuals for Afore HNS5000TL

Installation And Operation Manual28 pages

Questions and Answers:

A
Anthony GibsonAug 14, 2025
What to do if my Afore Inverter shows 'No Utility'?
- H
  heatherbrownAug 15, 2025
  If your Afore Inverter displays a 'No Utility' error, it could be due to several reasons: a utility loss, the AC side circuit breaker being turned off, a poor connection on the AC side, or an inverter fault. First, if the grid returns to normal, the inverter will restart automatically. If not, replace the AC circuit breaker and check the AC connector for a secure connection. If the fault persists after several restarts, the inverter may need replacement.
J
James WareAug 18, 2025
How to fix Bus High Fault/Bus Fault on Afore Inverter?
- B
  brittneybarnesAug 18, 2025
  A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by high PV input voltage or a poor AC side connection. To resolve this, check that the PV input voltage is within the acceptable range: 450Vdc for models up to 3.0kW, or 500Vdc for models up to 5.0kW. Also, ensure the AC connector and circuit breaker are well connected.
J
James HaysAug 21, 2025
What to do if Afore Inverter shows Over Temperature Fault?
- M
  maria96Aug 21, 2025
  If your Afore Inverter displays an 'Over Temperature Fault', it may be due to the inverter enclosure being too hot or a temperature sensor fault. Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. If the problem persists, the temperature sensor may need to be replaced.
M
Mr. Christopher TaylorAug 25, 2025
Why does my Afore Inverter show a Ground Current Fault?
- T
  Tommy VasquezAug 25, 2025
  A 'Ground Current Fault' on your Afore Inverter can occur due to poor earthing leading to high leakage current, or if the PV(+) or PV(-) is earthed. To address this: 1. Check the AC output wiring and restart the inverter. 2. Check the PV array wiring.
K
Kyle CollierAug 28, 2025
How to resolve PV Over Fault on Afore Inverter?
- E
  ehansenAug 28, 2025
  A 'PV Over Fault' on your Afore Inverter typically indicates that the PV array's Voc (open-circuit voltage) is too high. You should re-design the PV array configuration. Also, measure the PV array voltage to ensure it matches what the inverter displays.
M
Michael OsbornAug 31, 2025
Why is my Afore Inverter showing a 'Bus High Fault' or 'Bus Fault'?
- B
  Brittany McdanielAug 31, 2025
  A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by: * High PV Input voltage: Ensure the PV input voltage is within the specified range (450Vdc for up to 3.0kW models, 500Vdc for up to 5.0kW models). * Poor AC side connection: Check the AC connector and circuit breaker for a secure connection.
M
Mrs. Amanda Martin MDSep 3, 2025
What to do if Afore Inverter displays 'Over Temperature Fault'?
- S
  Stephanie SotoSep 3, 2025
  If your Afore Inverter is showing an 'Over Temperature Fault', it could be due to: * The inverter enclosure being too hot: Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. * A faulty temperature sensor: Replace the temperature sensor.
J
jacobsanchezSep 7, 2025
How to solve 'Ground Current Fault' on Afore Inverter?
- M
  Mr. Kevin Golden MDSep 7, 2025
  A 'Ground Current Fault' on your Afore Inverter may be due to: 1. Poor earthing or high leakage current: Check the AC output wiring and restart the inverter. 2. PV(+) or PV(-) earthed: Inspect the PV array wiring.
B
baldwinlisaSep 12, 2025
Why does my Afore Inverter show 'PV Over Fault'?
- C
  Christine WhiteSep 12, 2025
  An Afore Inverter displaying a 'PV Over Fault' typically indicates that the PV array's Voc (open-circuit voltage) is too high. To resolve this: * Redesign the PV array configuration. * Measure the PV array voltage to ensure it matches the inverter's display.

Afore HNS5000TL Specifications

General

Model	HNS5000TL
Rated Power	5000W
Max. DC Voltage	1000V
Number of MPPTs	2
Max. Input Current per MPPT	11A
Nominal AC Voltage	230V
Power Factor	>0.99
THDi	<3%
Max Efficiency	98.1%
MPPT Efficiency	99.5%
Protection Degree	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Output Voltage	230V
Frequency	50/60 Hz
Max PV Input Voltage	1000V
Cooling	Natural Convection
Protection	IP65
Operating Temperature	-25°C to +60°C
AC Voltage Range	180V - 270V
Humidity	0-100% (non-condensing)

Summary

2 Safety Instructions

2.1 Safety Precautions

General safety guidelines and warnings.

2.2 Explanations of Symbols

4 Mounting

4.1 Safety

Critical safety precautions during the mounting process.

4.2 Selecting the Appropriate Mounting Location

4.3 Mounting the Inverter with Wall Mounting Bracket

5 Electrical Connection

5.1 Overview of the Connection Area

5.2 Connection to the Public Grid (AC)

Details on how to connect the inverter to the AC power grid.

5.3 Connection to the PV Generator (DC)

Instructions for connecting the inverter to the PV DC input.

6 System Diagram

Typical PV System Connection Diagram

7 Operation

7.1 Series Operation

Details on how to operate the inverter series.

7.1.4 Anyhome Series LCD Display

8 Technical Data

Single MPPT Tracker Specifications

Detailed electrical and general specifications for the single MPPT tracker models.

Double MPPT Tracker Specifications

Detailed electrical and general specifications for the double MPPT tracker models.

9 Trouble Shooting

Troubleshooting Common Errors

Lists common error displays, their possible causes, and recommended solutions.

Annex Warranty Terms (Overseas)
