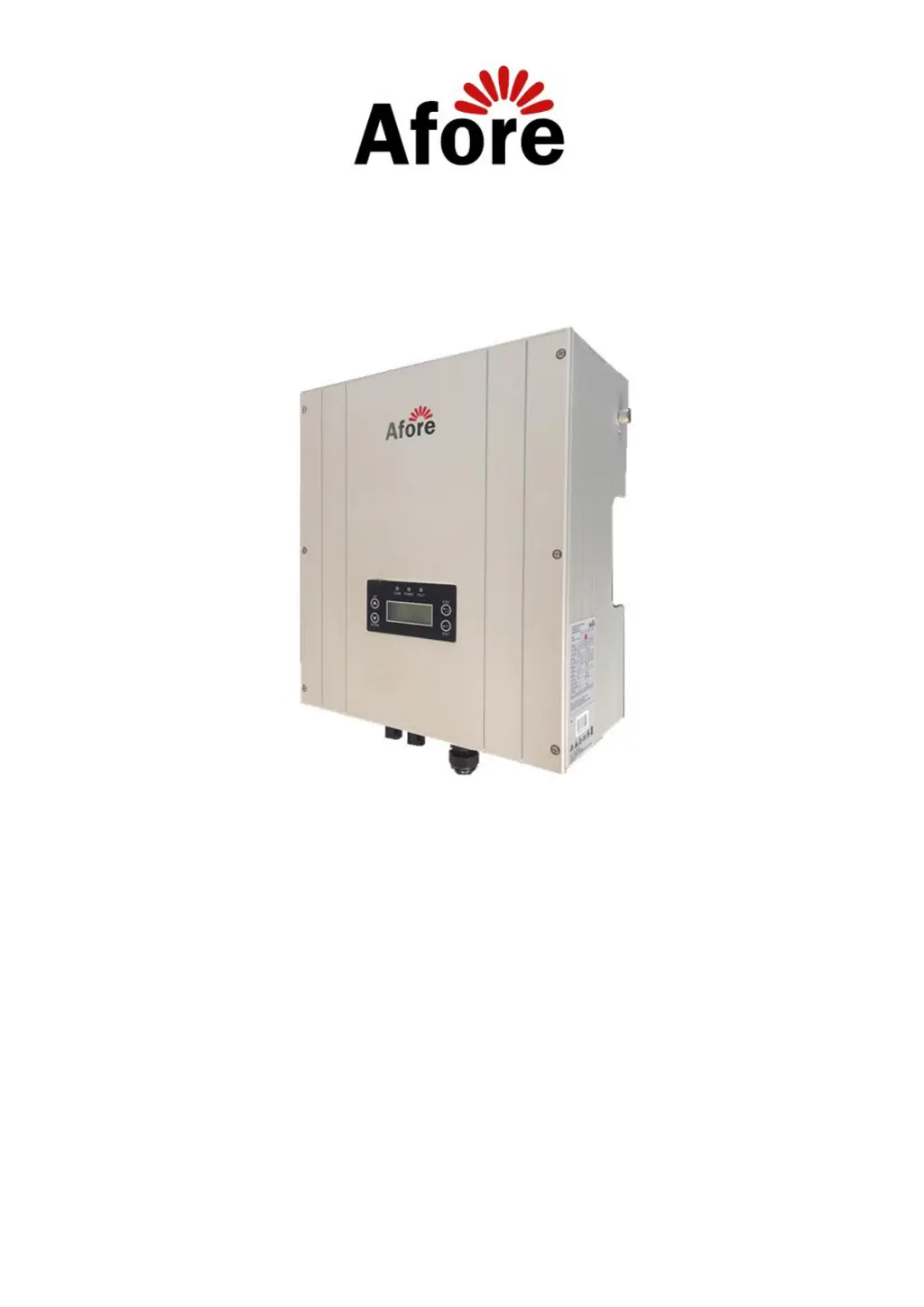

USER’S MANUAL
On-Grid PV Inverter
Anyhome Series：HNSxxxxTL-1(xxxx=1000,1500,2000,2500,3000,3600)
HNSxxxxTL(xxxx=3000, 3600, 4000, 5000,6000,7000,8000)
Version：03.610100011008-V0.01

Table of Contents

Other manuals for Afore HNS3000TL

Preview: Installation And Operation Manual
Installation And Operation Manual28 pages

Questions and Answers

  • C
    Casey SanchezAug 15, 2025
    What to do if my Afore Inverter shows 'No Utility'?
    • S
      Stacey SmithAug 15, 2025
      If your Afore Inverter displays a 'No Utility' error, it could be due to several reasons: a utility loss, the AC side circuit breaker being turned off, a poor connection on the AC side, or an inverter fault. First, if the grid returns to normal, the inverter will restart automatically. If not, replace the AC circuit breaker and check the AC connector for a secure connection. If the fault persists after several restarts, the inverter may need replacement.
  • A
    Adam HernandezAug 18, 2025
    How to fix Bus High Fault/Bus Fault on Afore Inverter?
    • K
      Kathleen SmithAug 18, 2025
      A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by high PV input voltage or a poor AC side connection. To resolve this, check that the PV input voltage is within the acceptable range: 450Vdc for models up to 3.0kW, or 500Vdc for models up to 5.0kW. Also, ensure the AC connector and circuit breaker are well connected.
  • C
    Collin YoungAug 21, 2025
    What to do if Afore Inverter shows Over Temperature Fault?
    • M
      Michael JohnsonAug 21, 2025
      If your Afore Inverter displays an 'Over Temperature Fault', it may be due to the inverter enclosure being too hot or a temperature sensor fault. Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. If the problem persists, the temperature sensor may need to be replaced.
  • J
    Judy SnyderAug 25, 2025
    Why does my Afore Inverter show a Ground Current Fault?
    • R
      Robert SanfordAug 26, 2025
      A 'Ground Current Fault' on your Afore Inverter can occur due to poor earthing leading to high leakage current, or if the PV(+) or PV(-) is earthed. To address this: 1. Check the AC output wiring and restart the inverter. 2. Check the PV array wiring.
  • B
    Becky NguyenAug 28, 2025
    How to resolve PV Over Fault on Afore Inverter?
    • A
      Angela SmithAug 28, 2025
      A 'PV Over Fault' on your Afore Inverter typically indicates that the PV array's Voc (open-circuit voltage) is too high. You should re-design the PV array configuration. Also, measure the PV array voltage to ensure it matches what the inverter displays.
  • T
    Thomas HamiltonSep 1, 2025
    Why is my Afore Inverter showing a 'Bus High Fault' or 'Bus Fault'?
    • C
      Crystal RandolphSep 1, 2025
      A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by: * High PV Input voltage: Ensure the PV input voltage is within the specified range (450Vdc for up to 3.0kW models, 500Vdc for up to 5.0kW models). * Poor AC side connection: Check the AC connector and circuit breaker for a secure connection.
  • A
    Austin PetersenSep 4, 2025
    What to do if Afore Inverter displays 'Over Temperature Fault'?
    • L
      lisamillerSep 4, 2025
      If your Afore Inverter is showing an 'Over Temperature Fault', it could be due to: * The inverter enclosure being too hot: Turn off the inverter and allow it to cool down to a normal temperature. Consider relocating the inverter to a well-ventilated area. * A faulty temperature sensor: Replace the temperature sensor.
  • B
    Brett FranklinSep 7, 2025
    How to solve 'Ground Current Fault' on Afore Inverter?
    • D
      David Anderson Jr.Sep 7, 2025
      A 'Ground Current Fault' on your Afore Inverter may be due to: 1. Poor earthing or high leakage current: Check the AC output wiring and restart the inverter. 2. PV(+) or PV(-) earthed: Inspect the PV array wiring.
  • A
    Angela CruzSep 12, 2025
    Why does my Afore Inverter show 'PV Over Fault'?
    • R
      Rebekah ThomasSep 12, 2025
      An Afore Inverter displaying a 'PV Over Fault' typically indicates that the PV array's Voc (open-circuit voltage) is too high. To resolve this: * Redesign the PV array configuration. * Measure the PV array voltage to ensure it matches the inverter's display.

Afore HNS3000TL Specifications

General IconGeneral
ModelHNS3000TL
Rated Output Power3000W
Max. DC Power3900W
Max. PV Input Power3900W
Efficiency97.5%
Cooling MethodNatural Convection
Protection ClassIP65
Nominal AC Power3000W
Nominal AC Voltage230V
Output Voltage230V
Output Frequency50Hz/60Hz
Operating Temperature Range-25°C to +60°C
