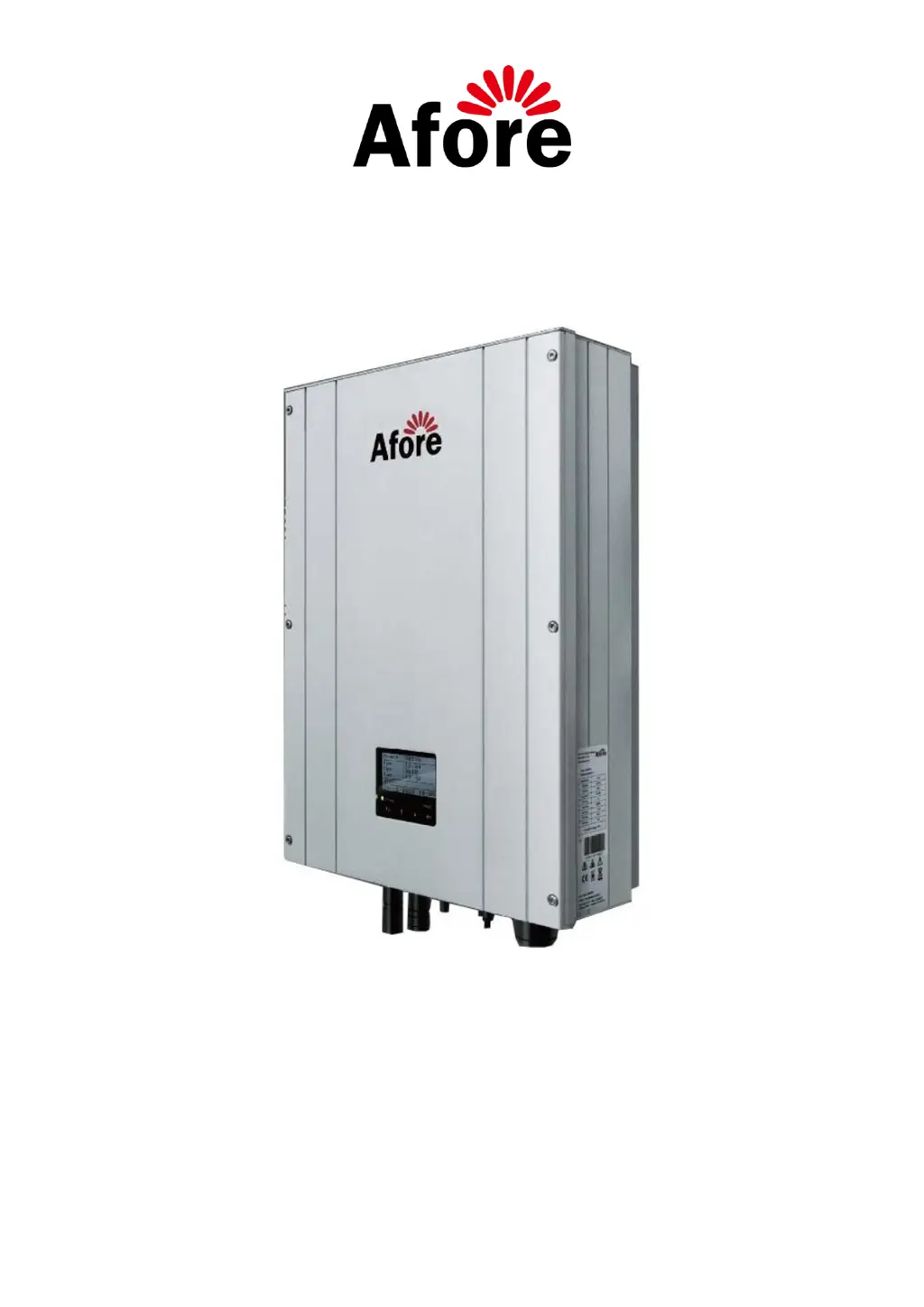

Afore HNS2500TL-1 - User Manual

Other manuals for Afore HNS2500TL-1

Installation And Operation Manual28 pages

Questions and Answers

S
suzannewatkinsAug 19, 2025
What to do if my Afore HNS2500TL-1 shows 'No Utility'?
- S
  Sandra StephensAug 19, 2025
  If your Afore Inverter displays a 'No Utility' error, it could be due to several reasons: a utility loss, a tripped AC side circuit breaker, a poor AC side connection, or an inverter fault. If the grid returns to normal, the inverter should restart automatically. Try replacing the AC circuit breaker or checking the AC connector for a secure connection. If the fault persists after several restarts, the inverter may need to be replaced.
J
julie89Aug 21, 2025
What to do if Afore HNS2500TL-1 displays 'Over Temperature Fault'?
- J
  Joseph ChapmanAug 21, 2025
  If your Afore inverter shows an 'Over Temperature Fault', it could be due to the inverter enclosure being too hot or a temperature sensor fault. Turn off the inverter and allow it to cool down to a normal temperature, or install the inverter in a well-ventilated area. If the problem continues, replace the temperature sensor.
J
Jason BartlettAug 23, 2025
Why is my Afore HNS2500TL-1 Inverter showing a 'Bus High Fault' or 'Bus Fault'?
- P
  Paul MartinAug 25, 2025
  A 'Bus High Fault' or 'Bus Fault' on your Afore inverter can be caused by a high PV input voltage or a poor AC side connection. Ensure the PV input voltage is within the specified limits: 450Vdc for models up to 3.0kW, or 500Vdc for models up to 5.0kW. Also, check the AC connector and circuit breaker for a secure connection.
J
Jose ReeseAug 26, 2025
What causes a 'Ground Current Fault' in Afore Inverter and how to fix it?
- E
  Erica LopezAug 26, 2025
  A 'Ground Current Fault' in your Afore inverter may be caused by poor earthing leading to high leakage current, or the PV(+) or PV(-) being earthed. Check the AC output wiring and restart the inverter. Also, inspect the PV array wiring.
J
Joshua JonesAug 28, 2025
What should I do if my Afore HNS2500TL-1 shows 'PV Over Fault'?
- D
  Dr. Austin CarrollAug 28, 2025
  If your Afore Inverter displays a 'PV Over Fault', it indicates that the PV array's Voc (open-circuit voltage) is too high. Redesign the PV array configuration. Also, measure the PV array voltage to ensure it matches what the inverter displays.
C
Corey HebertAug 30, 2025
What to do if my Afore Inverter shows PV1 Over Current?
- H
  Heather BlackAug 30, 2025
  If your Afore Inverter displays a 'PV1 Over Current' error, it indicates that the PV1 current is excessively high, triggering a protective mechanism. To resolve this: * Power off the inverter, and then restart it. If the issue persists frequently, consider seeking assistance from local distributors.
L
Laura PalmerSep 1, 2025
Why does my Afore HNS2500TL-1 show PV Volt High?
- D
  david58Sep 2, 2025
  The 'PV Volt High' error on your Afore Inverter means the DC input voltage from your PV strings exceeds the maximum allowable value. To fix this, reconfigure the PV strings to reduce the DC input voltage by decreasing the number of PV strings. If problems persist, contact local distributors for further assistance.
D
Debra CarterSep 4, 2025
Why does my Afore HNS2500TL-1 show PV Volt Low?
- S
  Sarah AndersonSep 4, 2025
  The 'PV Volt Low' error on your Afore Inverter indicates that the DC input voltage from the PV strings is below the minimum required value. To address this, reconfigure the PV strings to increase the DC input voltage by increasing the number of PV strings. If the issue continues, contact local distributors for additional support.
T
tatekennethSep 6, 2025
How to fix a PV Fault on my Afore Inverter?
- W
  willie43Sep 6, 2025
  A 'PV Fault' on your Afore Inverter means the impedance between ground and PV (+) & PV (-) is too low. Here’s how you can troubleshoot: * Check the battery and wiring for water immersion or insulation damage and correct any issues found. If the fault continues to occur frequently, seek help from local distributors.
P
paulbrownSep 8, 2025
How to fix Bus High Fault/Bus Fault on Afore Inverter?
- J
  Jane BrownSep 9, 2025
  A 'Bus High Fault' or 'Bus Fault' on your Afore Inverter can be caused by high PV input voltage or a poor AC side connection. To resolve this, check that the PV input voltage is within the acceptable range: 450Vdc for models up to 3.0kW, or 500Vdc for models up to 5.0kW. Also, ensure the AC connector and circuit breaker are well connected.

Summary

Safety Guidelines

Safety Precautions

Lists essential safety measures to be followed during installation and operation of the inverter.

Inverter Mounting

Electrical Connections

AC and RS485 Connection Procedure

Details the process of connecting the inverter to the public grid (AC) and RS485 communication.

DC Connection to PV Generator

Provides instructions and cautions for connecting the inverter to the PV generator (DC).

DC Connection Conditions and Assembly

Final DC Connection Steps

PV System Diagram

Inverter Operation and Controls

Commissioning the Inverter

Auto Test Function

Trouble Shooting Guide

Faults: Over Voltage, GFCI, EEPROM

Details troubleshooting for over voltage, ground-fault protection, and EEPROM errors with causes and solutions.

Faults: Sensor Failures, Over Current, Protection

Covers troubleshooting for sensor failures, AC over current, and protection mechanisms like GFCI and relay faults.

Faults: Temperature, Islanding, Grid Loss

Addresses issues related to over temperature, islanding protection, and grid loss, providing causes and solutions.

Faults: Grid Voltage;Frequency, LCD;LED Issues

Explains troubleshooting for grid under/over voltage, frequency errors, and problems with the LCD screen or LEDs.

Troubleshooting Notes and Restart Procedure

Technical Specifications

Afore HNS2500TL-1 Specifications

General

Model	HNS2500TL-1
Rated Power	2500 W
Max. DC Voltage	550V
Nominal AC Power	2500 W
Max. AC Power	2500 W
Nominal AC Voltage	230 V
Output Voltage AC	230 V
Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Max. Output Current	11.4 A
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-25°C to 60°C
