POWER LED (Green)
POWER LED turns on when DC voltage reaches the start-up voltage and turns off when it falls below a
certain value. POWER LED is on represents inverter is active and so is the inverter control system. If POWER
LED is off, inverter cannot be normally started up.
Under normal operation conditions, when light is sufficient, inverter connects to the grid and generates in
the morning and stops after dark. This procedure may repeat several times in one day, especially in
morning and at night. It is a normal working phenomenon but not a wrong signal.
FAULT LED (Red)
Red FAULT LED turns on means the on-grid generation is stopped due to some faults. Please wait 10
minutes to be sure whether the fault is temporary. If yes, inverter will automatically restart again. If not,
contact after-sales personnel.
RUN LED Flashes (Yellow)
When situation is satisfied for inverter to connect grid, RUN LED will turn on. If the yellow RUN LED doesn’t
turn on, it means the inverter doesn’t connect to grid.
7.1.4 Anyhome Series LCD Display

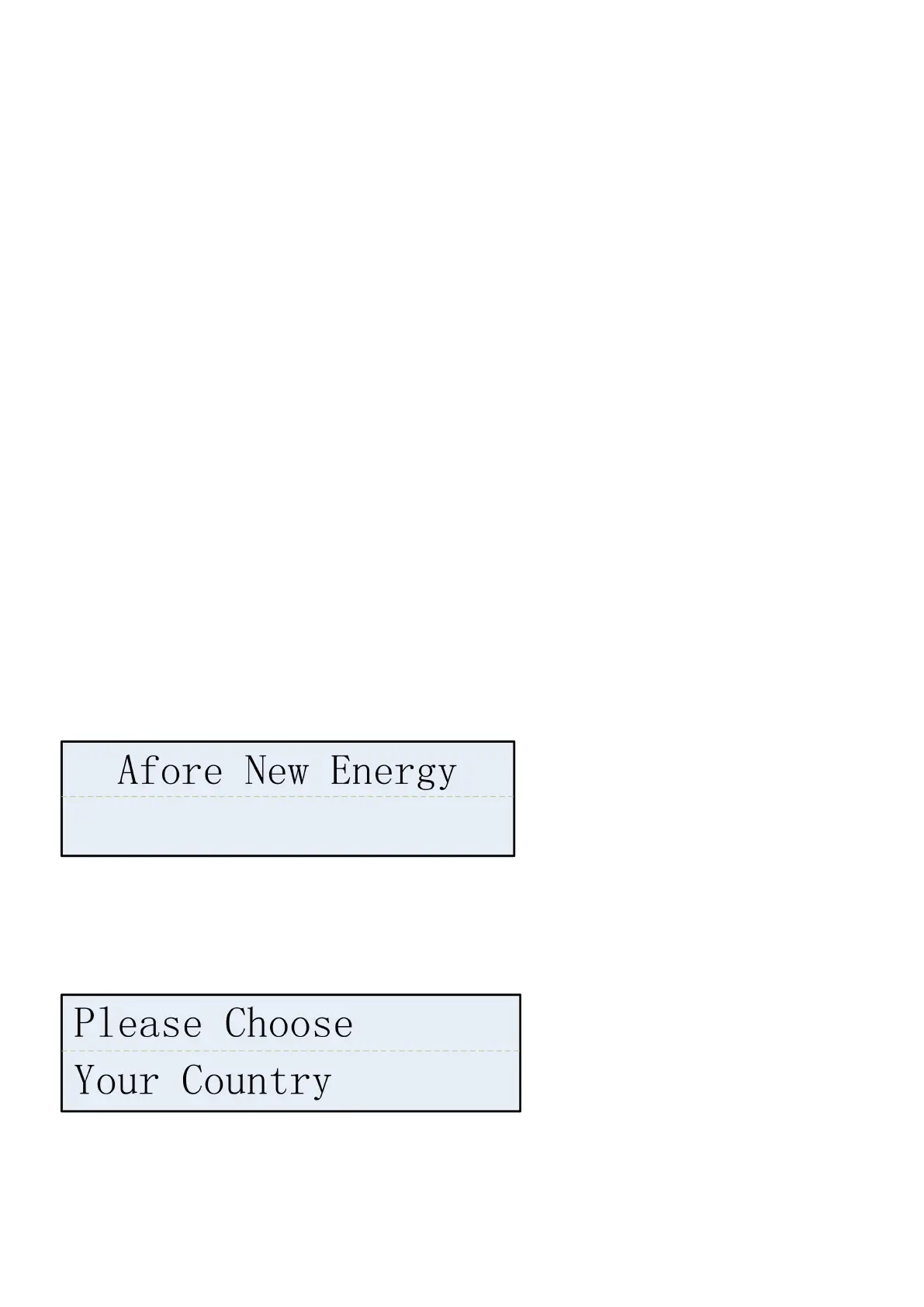

Inverter will start up automatically with enough DC voltage provided by PV array. When starting up (POWER
LED is on), it shows “Afore New Energy” on LCD in front of the inverter.
7.1.4.1First Boot Setting
First turned on power, the inverter will delay 1 second and automatically jump to the reminder interface to
set country.
Press Ent to country and standard setting interface. Press UP and DOWN to show countries. Choose
corresponding country and standard and press Ent.
