Step 9

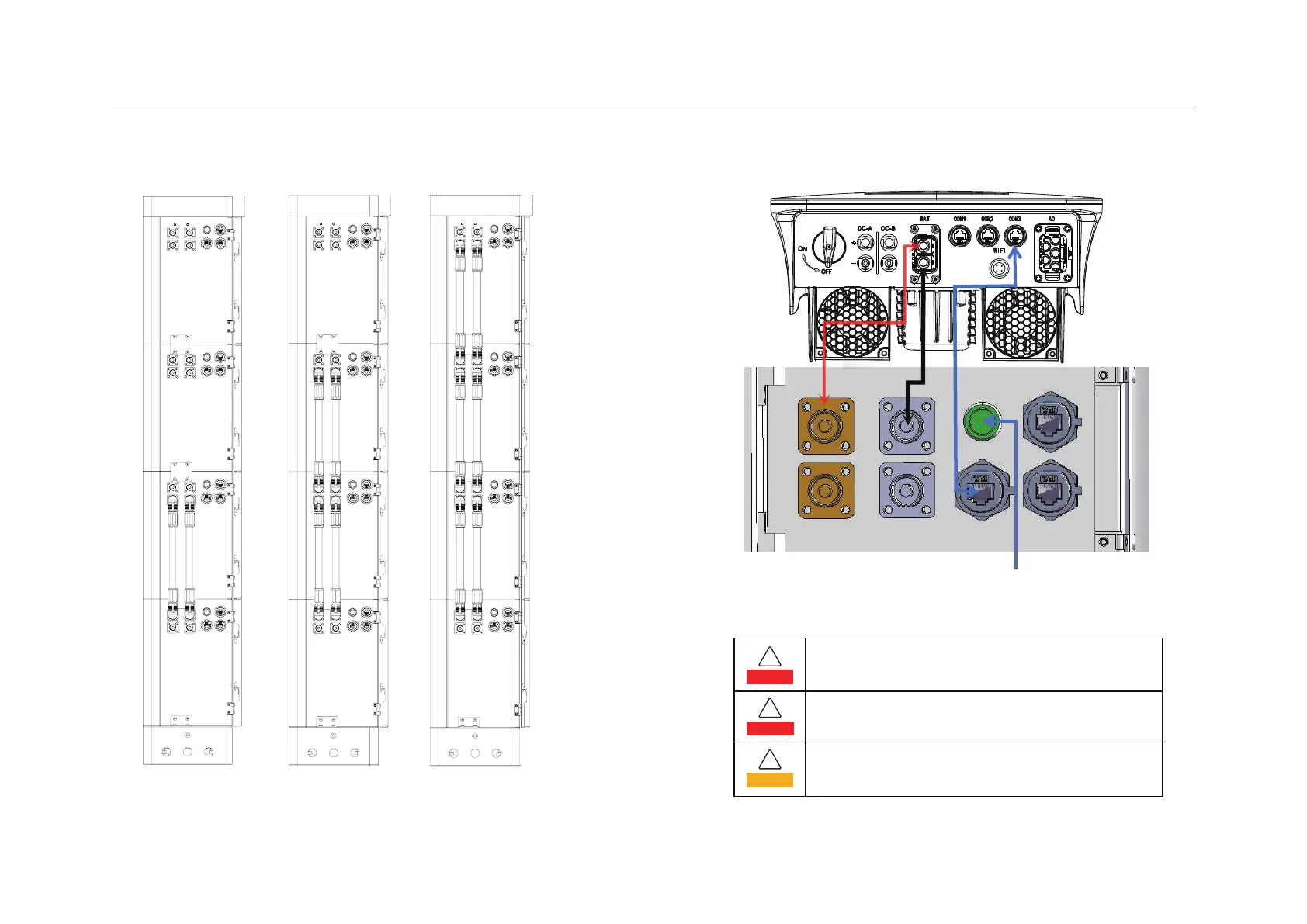

Connect the power cables between the battery and the battery as shown.
21 22
（9.1） （9.2） （9.3）
ON/OFF
Link in
P+ P-
COM Link out
Connect the power through P+ and P- .
Connect the first battery pack COM Terminal to the inverter BMS port
for communication beween inverter and battery.
Choose one of the
Link Com ports, the
function is the same
After the harness is linked,press
the button for 3S to turn on the
batteries,3S to turn off it.
Ensure power cables are installed with the correct polarity.
A dangerous situation may arise if the polarities are reversed.
Do not create a short circuit between the
positive and negative terminals of the battery.
Ensure the polarity is correct during installation.
Incorrect communication cable connection will cause the
battery system to operate in unexpected ways which
may lead to system failure.
Danger
Warning
Danger
!
!
!
