AF5000W-LE is a low-voltage battery storage system based on lithium-iron
phosphate technology. It is used to primarily store excess power that is
generated by an inverter base d on PV system.

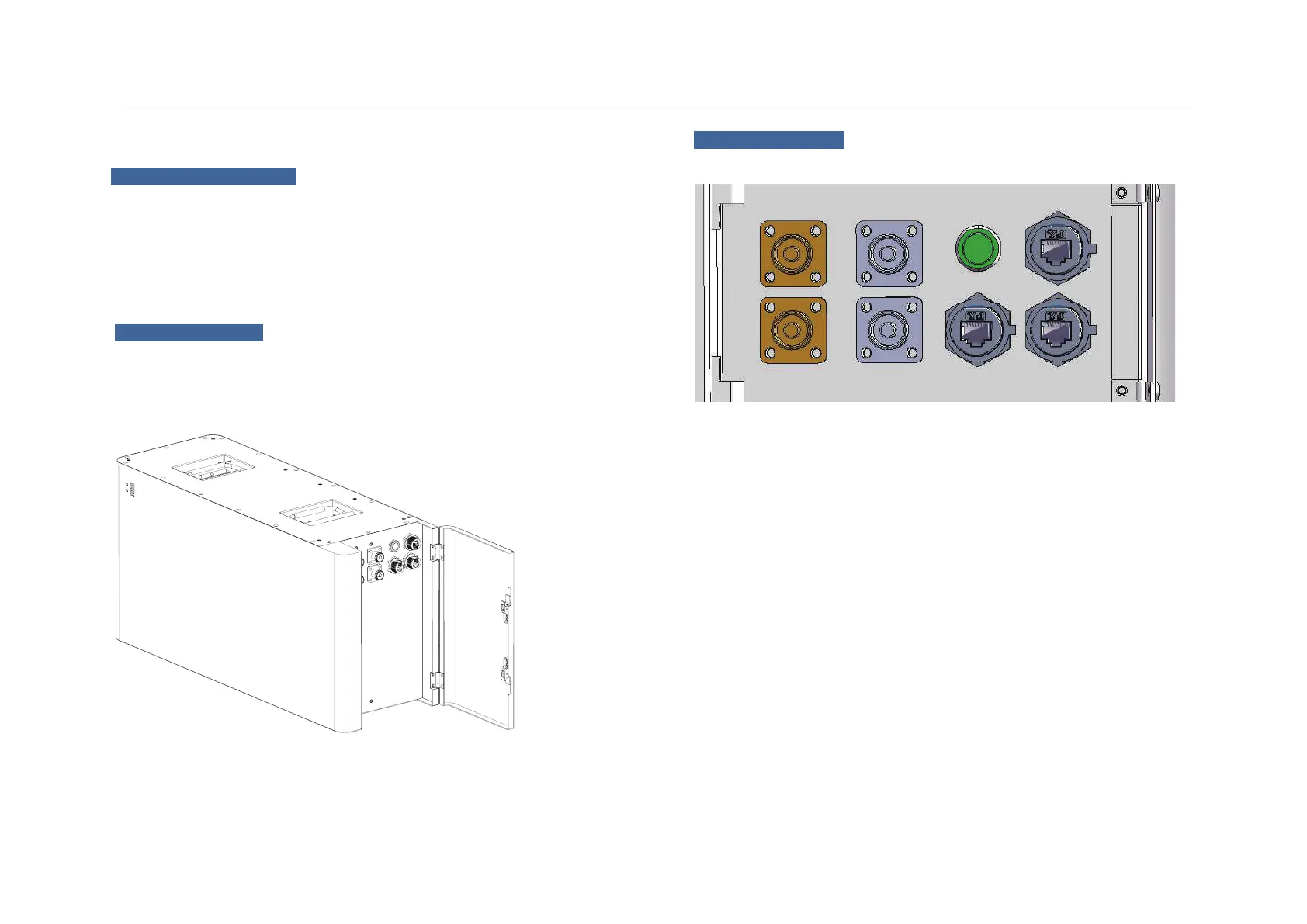

3 . 2 Battery Module
3. System Information
3 . 3 . 1 Connection Area
3 . 3 Port definitions
ON/OFF
Link in
P+ P-
COM
Link out
07 08
3 . 3 . 2 ON/OFF
1. ON
3 . 1 Product Introduction
For single Battery Module, long press (more than 3 seconds) ON/OFF button, the Normal LED
indicator on the front panel will flash, then the battery will operate normally. L1 to L6 show
battery SOC, L7/L8 shows battery status.
For multiple Battery Modules in parallel, long press (more than 3 seconds) ON/OFF
button of MASTER battery (which is connected to the inverter), the Normal LED indicator will
flash, then the battery system will automatically encode and assign ID to each slave battery and
the battery system will operate normally.
Note: For multiple batteries in parallel, only the LED State of Charge indicator of the
Master battery will flash to show the SOC level of the whole system, and the LED State of
Charge indicators of the slave batteries will turn off, while theNormal&Alarm LED
indicators will operate normally.
2 OFF
Press ON/OFF button of the Master PACK (which is connected to the inverter) for more than 3s,
the LED indicator on the front panel will flash, and then release the button, the master pack will
shut down after all the slave packs shut down (Sleep Mode).
For single Battery Module, long press (more than 3 seconds) ON/OFF button,
the LED indicator on the front panel will flash, and then release the button, the battery will shut
down.
For the system connected with inverter, there is an air switch between the
inverter and battery system, normally the air switch keeps off-state if the system does not work.
