Diagnostics
March 2002
4
-
21
Signal Strength

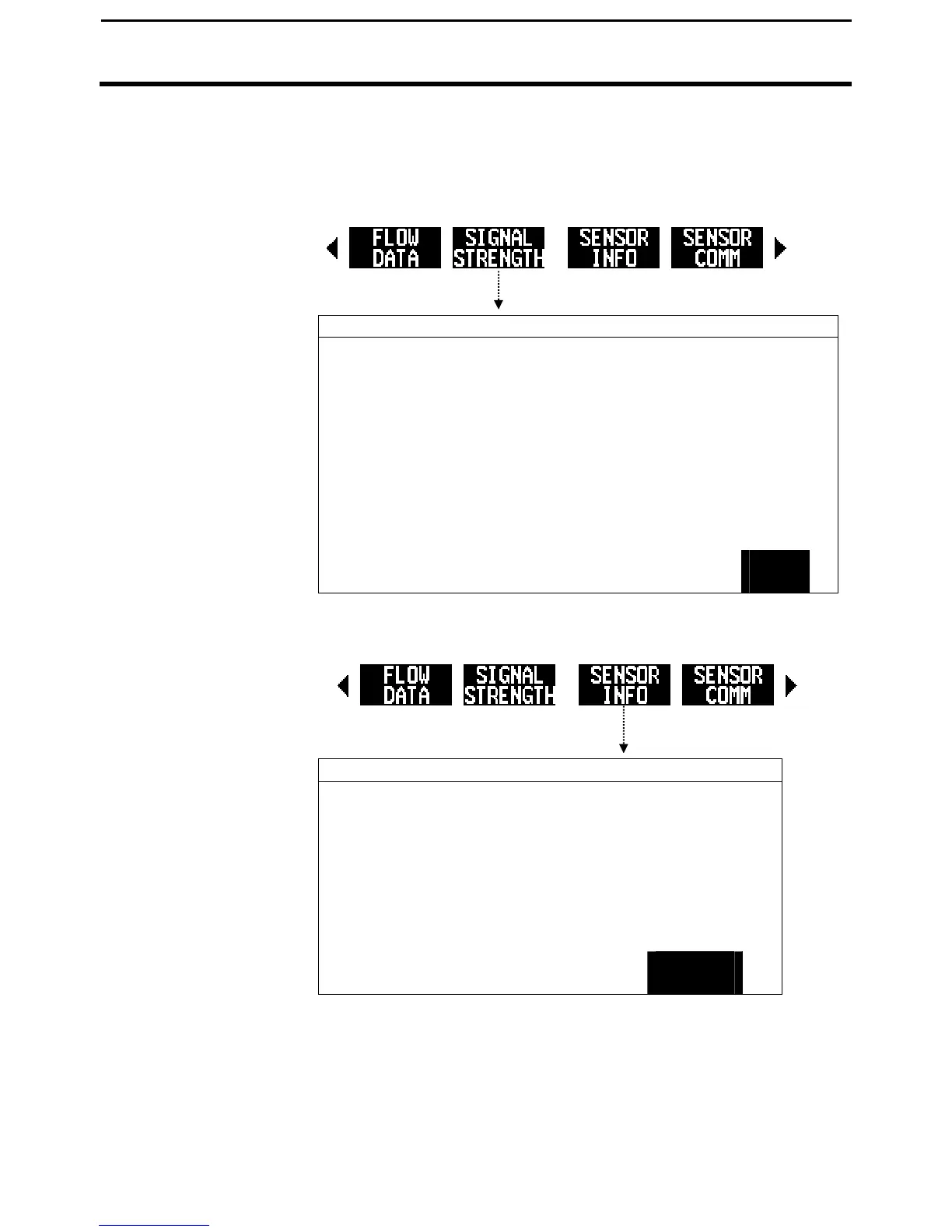

This screen shows the signal strength from each sensor broken down by
each lens. This number is used to indicate the amount of light coupled from
the emitter to the detector. After a new installation and before picking, this
value should be greater than 8000 or higher.
DIAGNOSTICS: SIGNAL STRENGTH
SENSOR
A
B
C
D
E
1
8120
10659
10985
10258
9269
2 9145 8736 8000 9602 9387
3 8630 9842 10089 9367 8934
4 10367 11356 10758 9158 9698
EXIT
Sensor Info
This screen shows the hardware and firmware revisions of each sensor.
DIAGNOSTICS: SENSOR INFO
SENSOR
HW REVISION
FW REVISION
1 2.0 2.11
2 2.0 2.11
3 2.0 2.11
4
2.0
2.11
EXIT
