INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
32

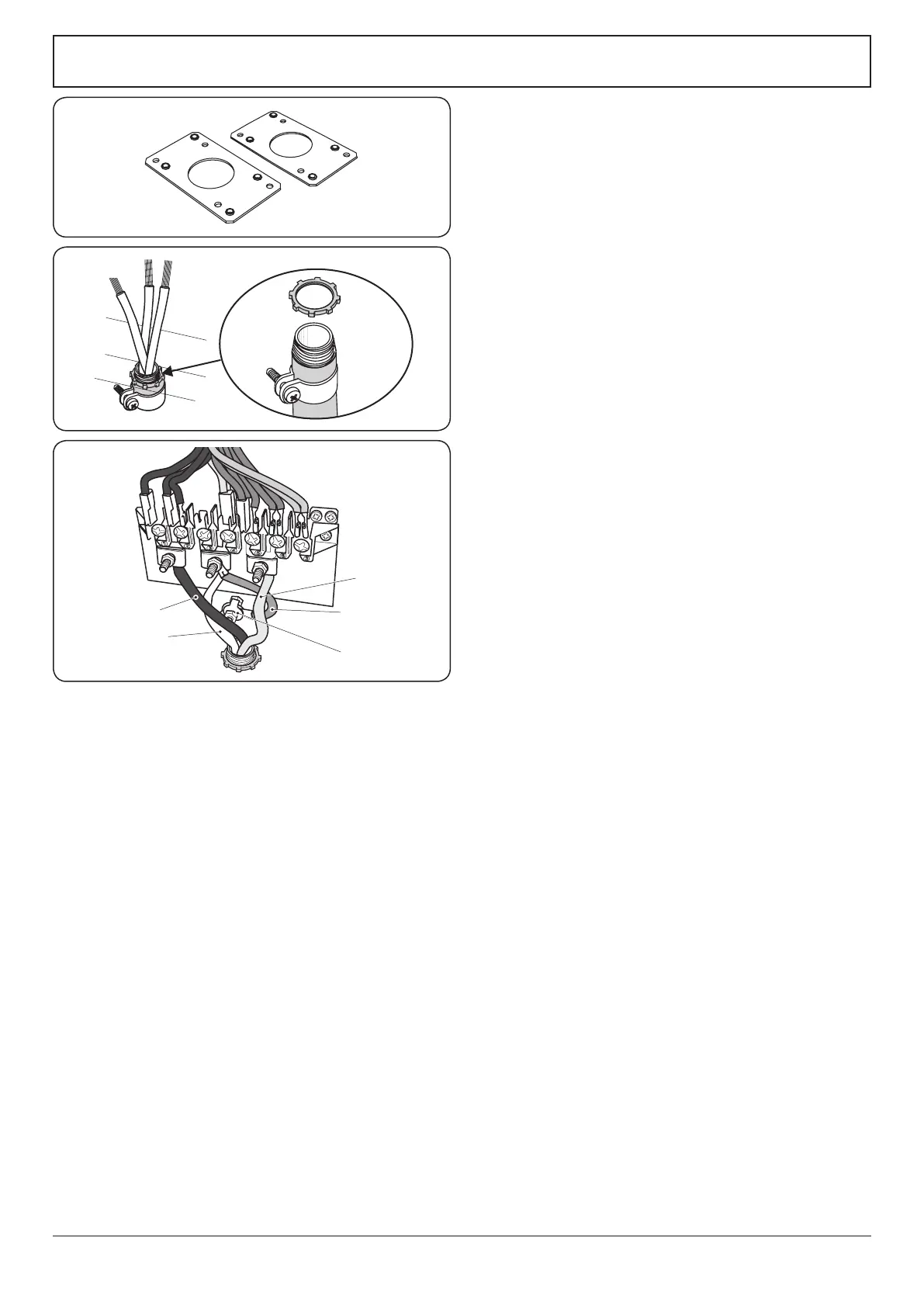

3-Wire Conduit Installation
Disconnect the supplied power cord from the terminal block
and ground post. Keep the terminal block parts; you will need
them. Remove the strain relief clamp from the power cord
and remove the power cord and strain relief clamp from the
mounting bracket.
The range is shipped with reducer plates to give a 1
1
/
8
’’
diameter opening for conduit connection. Find the reducer
plates (Fig.7-24) in the conversion kit and x them to the
mounting bracket.
Install a squeeze connector (not supplied with the range), to
your conduit. Insert the conduit through the reducer plates
on the mounting bracket. Allow enough slack to easily attach
the wires to the terminal block (Fig.7-25).
Note: DO NOT install the conduit without a squeeze
connector.
Attach the ground strap to the ground and center terminal of
the connector block (Fig.7-26).
The neutral or ground wire of the power cord must be
connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the
outside terminals.
Note: Make sure the wires are completely inserted into the
terminals and secure connections are made.
Secure the squeeze connector in place in the bracket by
tightening the squeeze connector screws.
ArtNo.280-0039 Reducer Plate
ArtNo.280-0043 3-Wire conduit fitting
Fig.7-24
Fig.7-25
ArtNo.280-0083 - 3-Wire conduit connection
Black
White
Red
‘Ground strap’
(grey)
Ground
Fig.7-26
