79024230 A Rev. 01-9
General Information
Snap Rings
Snap ring installers should be designed so as not to
permanently deform the snap rings.
Installed snap rings should be seated securely in the
groove.
Be careful not to overload the snap-ring to the extent that
it is permanently deformed.

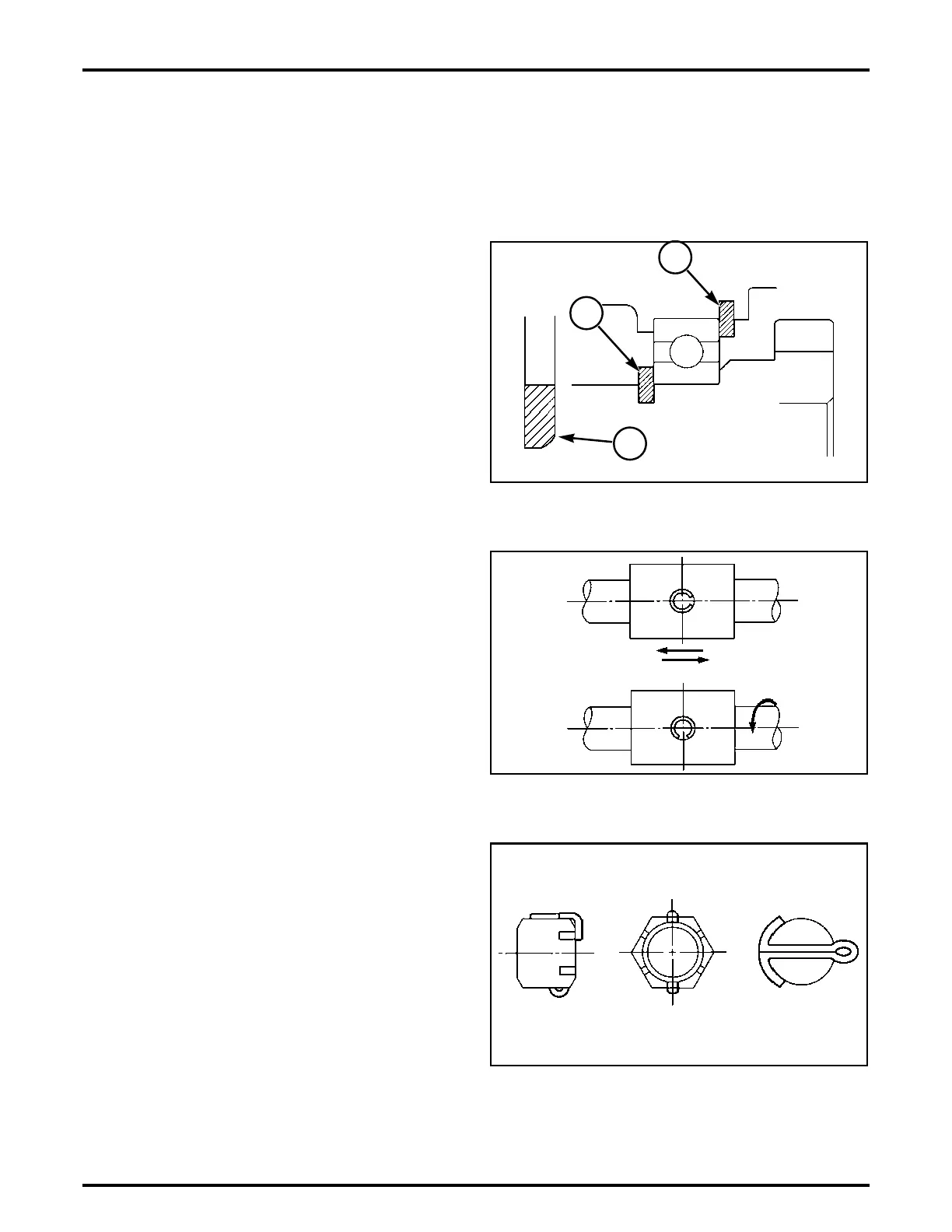

FIG. 4: How to install the snap-ring:
When installing the snap-ring (1) install it as shown with
its round edge side (2) turned toward the part to be
retained. This round edge is formed when the snap-ring is
pressed out.
Spring (Roll) Pins
FIG. 5: Spring pins should be driven in properly and
tightly.
Spring pins should be installed so that their seams should
face the direction from which the load is applied.
The roll pins installed in the transmission or other parts
where much force is applied should be retained with wire.
Cotter Pins
FIG. 6: When installed, cotter pins should be bent
securely at the ends as shown.
FIG. 4
1
1
2
i-9998
FIG. 5
i-9999
FIG. 6
I-10000
