Splitting the Tractor
SPLITTING THE TRACTOR
DISASSEMBLY OF FUNCTION BLOCKS
FIG. 1: To release the hood, move the open/close lever
(1) in the direction shown by the arrow.
Open the hood by grasping and lifting up the front of the
hood (2) fully until locking the stand of the hood.
FIG. 2: Support the hood with the stand (1).
To close, lift the hood, disengage the pin from the stand,
and lower the hood. The hood is locked in place when the
lever is pressed.
m
CAUTION: Make sure the lock pin of the
stand is placed in notch (2) when opening
the hood. If pin is not placed in notch, hood
may fall down suddenly.
Removing/Reinstalling Side Covers
FIG. 3: When the top of a side cover (1) pulled out with
the hood open, the lock can be disengaged.
Remove a side cover by slipping the cover off the two
hinges on the bottom.
When reinstalling a side cover, place the cover on the
hinges at the bottom, and push on the top.
The muffler is adjacent to the left side cover. Make sure to
allow the muffler to cool before removing the side cover.

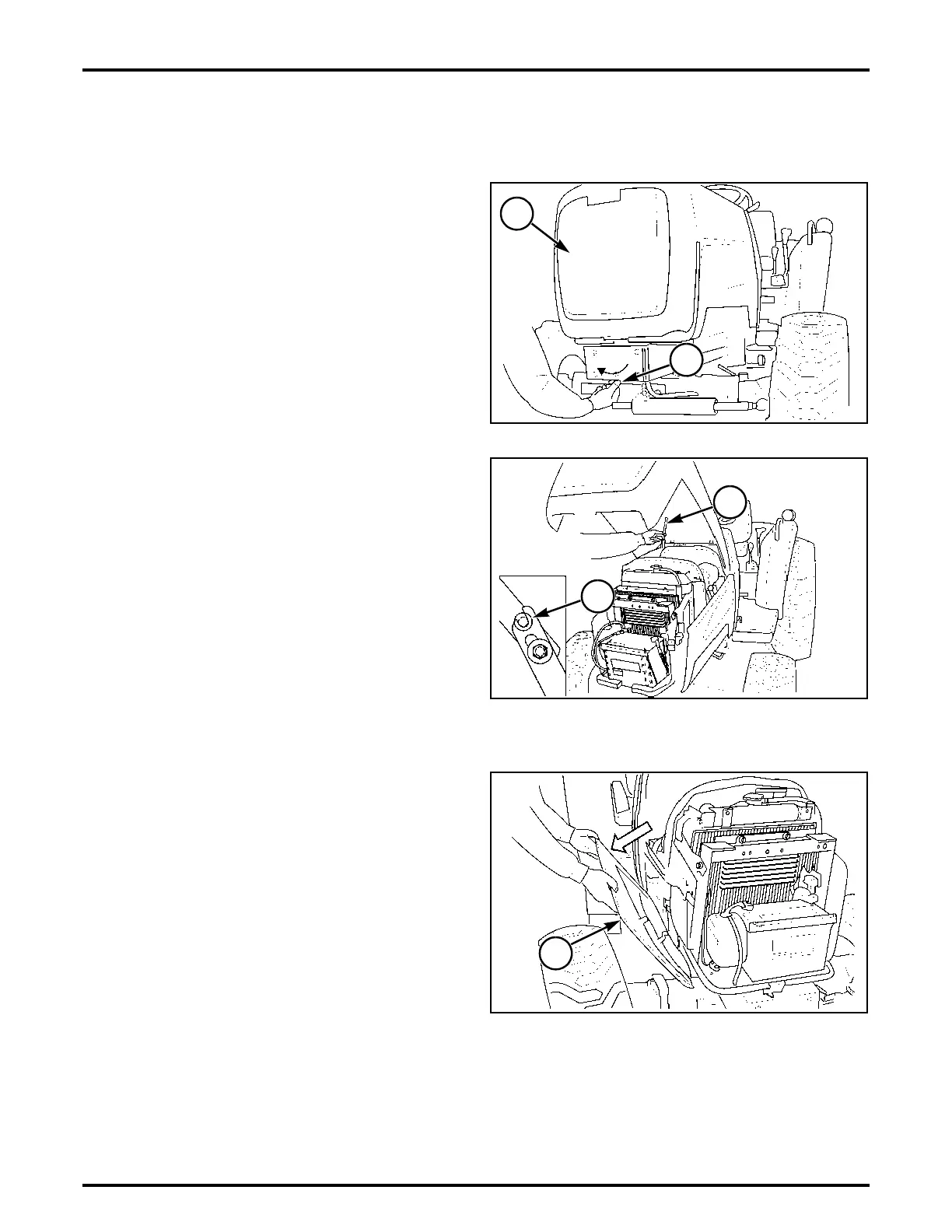

FIG. 1
i-9546
2
1
FIG. 2
i-9549
1
2
FIG. 3
i-9545
1
