Splitting the Tractor
02-4 79024230 A Rev.
SEAT, FENDERS, FLOOR DECK, AND
RELATED PARTS

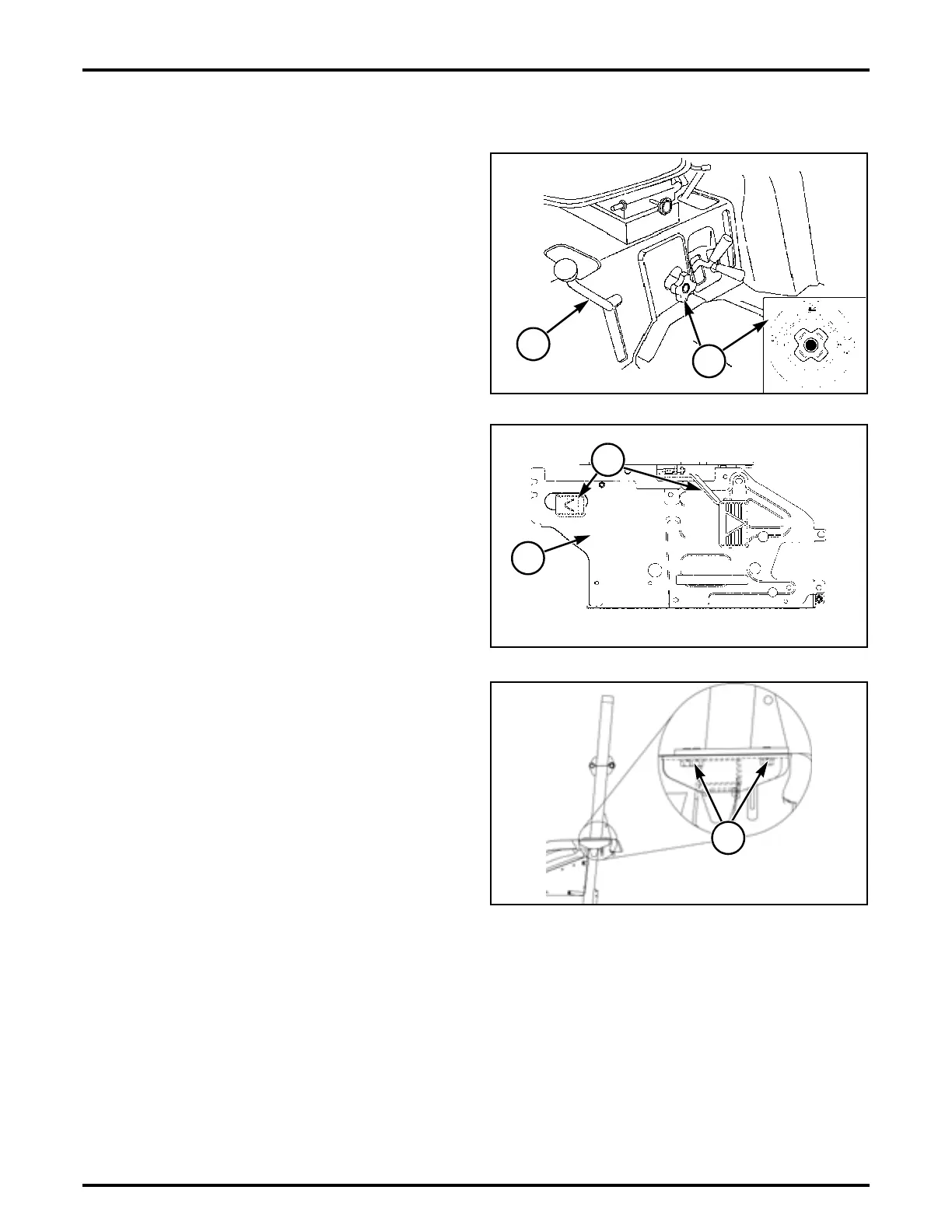

FIG. 8: Remove two bolts and remove the differential
lock lever (1).
Remove a screw and remove the lowering speed control
knob (2).
Remove two bolts and remove the cruising speed control
lever.
Remove floor mat.
Remove four bolts and remove center cover.
Disconnect the wiring harness for seat switch.
Remove bolts that fixing the seat panel then shift the seat
panel forward for avoiding mid PTO lever and 4WD lever,
and remove it with the seat.
FIG. 9: Remove HST pedal (1).
Remove floor decks (LH and RH) (2).
Disconnect the couplers of wiring harness for combination
lamps.
FIG. 10: Remove four bolts per one side (total eight
bolts) and remove ROPS (1).
FIG. 8
i-9525
1
2
FIG. 9
i-9815
1
2
FIG. 10
1
i-9759
To Next Page
