79024230 A Rev. 02-5
Splitting the Tractor

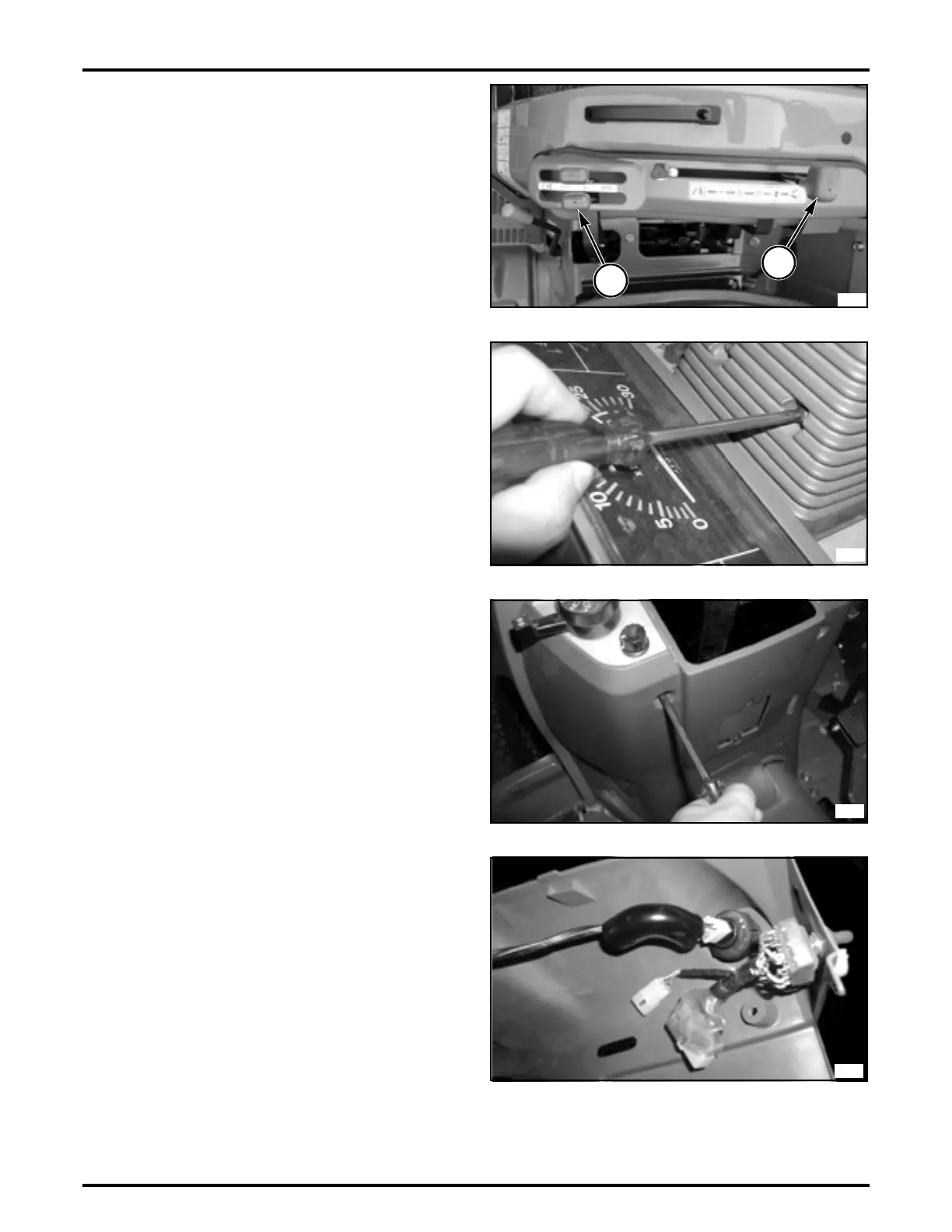

FIG. 11: Remove hydraulic control levers (1 and 2).
Remove fixing bolts and remove fenders.
FIG. 12: Remove four screws and remove column cover
(forward and rearward).
FIG. 13: Remove six screws and disconnect couplers for
related wiring harness. And remove the rear cover.
FIG. 14: The coupler for main switch has a rubber boot
for waterproofing. When disconnecting the coupler, pull
the boot off from main switch in advance.
FIG. 11
1
2
i-9760
FIG. 12
i-9761
FIG. 13
i-9762
FIG. 14
i-9763
To Next Page
